Sofia AMT 22   Shelf speaker as in K+T 2/2024

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): 89 dB
  • size (HxWxD): 600 x 200 x 270 mm
  • frequency range (-8dB): 36 - 27000 Hz
  • crossover frequency(s): 2050 Hz
  • speaker type: bass reflex
Enlarge

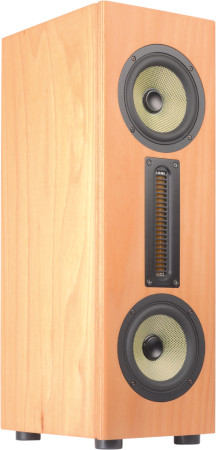

Sofia AMT 22 is a two way compact speaker.

Sofia AMT 22 is a bass-reflex cabinet loudspeaker with drivers of Mundorf and Wavecor.

The kit is delivered with the following drivers:
- a Mundorf AMTU160W1.1-R air motion transformer (ribbon-tweeter)
- two Wavecor WF152BD09 woofers

The loudspeaker has been developed by Daniel Gattig and Dennis Frank.

The crossover consists of:
- a 2nd order high-pass filter (12 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum is nearly perfect.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 0,6% above 300 Hz and doesn't exceed 0,6% at 95 dB at 1 m between 300 and 15000 Hz.

An excerpt from the Klang+Ton review (Translation of the author into English)

Conclusion of the magazine Klang+Ton:

Our kit consists of

  • Mundorf AMTU160W1.1-R
  • 2x Wavecor Mid/Woofer WF152BD10, 8 Ohm, die cast, kevlar/carbon cone
  • 2x Bass reflex tube HP100, 100x197 mm, black
  • Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 0,5x Damping Sonofil 100 x 35 cm for 20 litres
  • Binding Post PK28 I, gold plated (one pair, red and black)
  • 2m Speaker cable 2x1.5 mm2 black/red
  • Pan screws 3.5x17 black, torx, 8 pieces
  • 0,5x Visaton Countersunk screws 3.5x25, 8 pcs
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 2.2 μF / 400 Vdc
  • Audaphon MKP CAP Superior 8.2 μF / 400 Vdc
  • Audaphon MKT CAP 15 μF / 160 Vdc
  • Audaphon MKT CAP 22 μF / 160 Vdc
  • 1.4 mm air core coil 1.2 mH/0.32 Ohm
  • 0.7 mm air core coil, 0.33 mH/0.48 Ohm
  • 0.7 mm air core coil, 4.7 mH/2.19 Ohm
  • Metal-oxide resistor, 10W 6.8 Ohm (blue-grey-gold)
  • Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)

Kit without cabinet, price per speaker   EUR 857,00 excl. VAT: € 720.17 / $ 777.78

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Mundorf AMTU160W1.1-R are of type polypropylen (MKP) Mundorf Mcap Supreme EVO Öl 800 V.

  • Mundorf MCAP EVO Oil 2.2 μF / 450 V
  • Mundorf Mcap Supreme EVO Oil 8,2 μF / 800V
  • Mundorf MKP capacitor 15 μF / 250 V
  • Mundorf MKP capacitor 22 μF / 250 V
  • Mundorf baked varnish air core coil BL71, 0.33 mH/0.48 Ohm
  • Mundorf baked varnish air core coil BL71, 4.7 mH/2.19 Ohm
  • Mundorf baked varnish air core coil BL140, 1.2 mH/0.34 Ohm
  • MResist Supreme 6.8 Ohm / 20 Watt
  • Mresist Classic 8,2 Ohm / 10 Watt

Kit with high-end-crossover without cabinet, price per speaker   EUR 980,00 excl. VAT: € 823.53 / $ 889.41

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).

  • Audaphon MKT CAP 22 μF / 160 Vdc
  • 0.7 mm air core coil, 0.10 mH/0.27 Ohm
  • ceramic resistor 10 Ohm/20 Watt

Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 12,20 excl. VAT: € 10.25 / $ 11.07

universal PCB

If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 150x115 mm, tin plated, price per unit:   EUR 4,70 excl. VAT: € 3.95 / $ 4.27
We recommend one board per kit (2 boards per speaker pair)

Measurements

measurmentsMeasurements on this speaker
