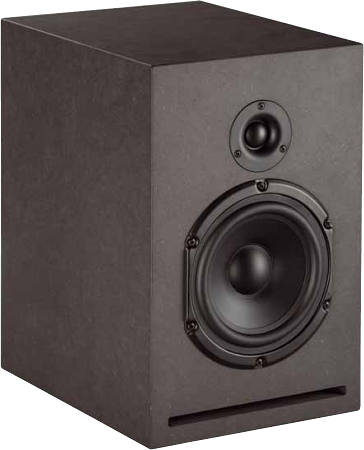

Omnes Audio Shorty 2016   Shelf speaker as in K+T 3/2017

Technical data
  • impedance: 6 Ohm
  • sensivity (2,83V/1m): 86 dB
  • size (HxWxD): 370 x 240 x 300 mm
  • frequency range (-8dB): 35 - 22000 Hz
  • crossover frequency(s): Hz
  • speaker type: bass reflex

Shorty 2016 is a 2 way compact speaker with chassis from Omnes Audio.

The kit provides a tweeter and a woofer. As tweeter an Omnes Audio T25 H is used. As woofer an Omnes Audio LoCo 6.1 is used.

Shorty 2016 is developed by Thorsten Fischer.

The crossover consists of a 2nd order high-pass filter (12 dB per octave slope) for the tweeter. The woofer is connected to a 2nd order low-pass filter (12 dB per octave slope).

The frequency response of this loudspeaker is linear on axis. The decay spectrum is nearly perfect above 2000 Hz. At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are lower than 0.5% above 300 Hz and mostly below 1% at 95 dB at 1 m .

Our kit consists of

  • Omnes Audio T25 H
  • Omnes Audio LoCo 6.1
  • Damping Sonofil 100 x 35 cm for 20 litres
  • Terminal T105 Au, with brass, gold plated
  • 1m Speaker cable 2x1.5 mm2, transparent
  • 0,5x Pan screws 3.5x17 black, 8 pieces
  • Pan screws 4x20 black, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKT CAP 10 μF / 160 Vdc
  • electrolytic capacitor, unetched, 10 μF / 70 Vdc
  • 0.7 mm air core coil, 0.39 mH/0.49 Ohm
  • Audaphon M core coil M12, 2.2 mH/0.2 0hm
  • Metal-oxide resistor, 5W 2.7 Ohm (red-purple-gold)
  • Metal-oxide resistor, 5W 4.7 Ohm (yellow-violet-gold)

Kit without cabinet, price per speaker   EUR 93,00 excl. VAT: € 78.15 / $ 84.40

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. All capacitors are of type MKP or MKT.

Kit with high-end-crossover without cabinet, price per speaker   EUR 130,00 excl. VAT: € 109.24 / $ 117.98

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).


Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 17,80 excl. VAT: € 14.96 / $ 16.15

universal PCBs

If you prefer to mount the crossover components on a 159 x 127 mm universal PCB instead on wood:
Universal PCB RA160, order no.. str-RA160, price per unit:   EUR 5,90 excl. VAT: € 4.96 / $ 5.35
We recommend one board per kit (two boards for a speaker pair)
