RIKE Audio capacitors: oil paper and copper polypropylen (PP)

Have you ever made the same experience: You are looking for a building material but you can find none of the desired quality?

RIKE Audio build tube amplifiers of the top class. They lacked the appropriate capacitor. What was more natural than to build these? With us you get the capacitors from RIKE Audio, developed and produced in Germany and made of the highest quality.

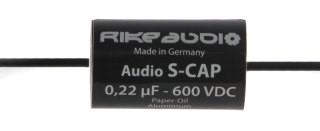

RIKE Audio S-Cap (Alu)

The RIKE Audio capacitor is an oil-paper capacitor with double-layered dielectric. It is designed for 630V DC and has 10% tolerance.

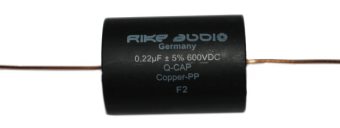

RIKE Audio Q-Cap (copper polypropylen)

It provides metallic electrodes of copper combined with polypropylen film as insulation. It is a non inductive construction in tubular plastic housing sealed with epoxy resin.

RIKE Audio S-Cap (Alu)

The RIKE Audio capacitor is an oil-paper capacitor with double-layered dielectric. It is designed for 630V DC and has 10% tolerance.

Continuous advancement in a state of the art production and research environment ensure the constant top-level product quality.

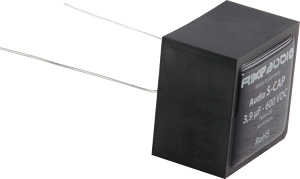

Capacitors with less than 1 uF are in cylindrical housing available; capacitors above 1 uF in rectangular housing.


Product ID C/µF U/Vdc Dimensions
DxL/mm
Price
rike-s-1 0.010 630   - not available
rike-s-2 0.022 630   EUR 35,00 excl. VAT: € 29.41 / $ 34.71
rike-s-3 0.033 630   EUR 35,00 excl. VAT: € 29.41 / $ 34.71
rike-s-5 0.047 630   EUR 35,00 excl. VAT: € 29.41 / $ 34.71
rike-s-7 0.068 630 21.0 x 36.0 EUR 35,00 excl. VAT: € 29.41 / $ 34.71
rike-s-10 0.10 630 21.0 x 36.0 EUR 35,00 excl. VAT: € 29.41 / $ 34.71
rike-s-22 0.22 630 21.0 x 36.0 EUR 35,00 excl. VAT: € 29.41 / $ 34.71
rike-s-33 0.33 630 21.0 x 36.0 EUR 35,00 excl. VAT: € 29.41 / $ 34.71
rike-s-47 0.47 630 21.0 x 36.0 - not available
rike-s-68 0.68 630 21.0 x 36.0 EUR 35,00 excl. VAT: € 29.41 / $ 34.71
rike-s-100 1.0 630 40.0 x 40.0 x 27.0 EUR 35,00 excl. VAT: € 29.41 / $ 34.71
rike-s-150 1.5 630 40.0 x 40.0 x 27.0 EUR 39,00 excl. VAT: € 32.77 / $ 38.67
rike-s-220 2.2 630 40.0 x 40.0 x 27.0 EUR 43,00 excl. VAT: € 36.13 / $ 42.64
rike-s-270 2.7 630 40.0 x 40.0 x 27.0 EUR 47,00 excl. VAT: € 39.50 / $ 46.61
rike-s-330 3.3 630 40.0 x 40.0 x 27.0 EUR 47,00 excl. VAT: € 39.50 / $ 46.61
rike-s-390 3.9 630 40.0 x 40.0 x 27.0 EUR 47,00 excl. VAT: € 39.50 / $ 46.61
rike-s-470 4.7 630 40.0 x 40.0 x 27.0 EUR 47,00 excl. VAT: € 39.50 / $ 46.61
rike-s-500 5.0 630   - not available
rike-s-560 5.6 630   EUR 47,00 excl. VAT: € 39.50 / $ 46.61
rike-s-680 6.8 630   EUR 55,00 excl. VAT: € 46.22 / $ 54.54
rike-s-820 8.2 630   EUR 77,00 excl. VAT: € 64.71 / $ 76.35
rike-s-1000 10.0 630   EUR 77,00 excl. VAT: € 64.71 / $ 76.35

RIKE Audio Q-Cap (copper polypropylen)

It provides metallic electrodes of copper combined with polypropylen film as insulation. It is a non inductive construction in tubular plastic housing sealed with epoxy resin.

It is made for high quality audio devices.

Enjoy amazing sound quality with the copper polypropylen capacitor RIKE Audio Q-Cap Copper PP.

It is designed for 600V DC and has 5% tolerance.

pdf datasheet


Product ID C/µF U/Vdc Dimensions
DxL/mm
Price
rike-qcpp-001   EUR 41,65 excl. VAT: € 35.00 / $ 41.30
rike-qcpp-0022   EUR 41,65 excl. VAT: € 35.00 / $ 41.30
rike-qcpp-0033   EUR 41,65 excl. VAT: € 35.00 / $ 41.30
rike-qcpp-0047 0.047 600 16.0 x 35.0 EUR 41,65 excl. VAT: € 35.00 / $ 41.30
rike-qcpp-0068   EUR 41,65 excl. VAT: € 35.00 / $ 41.30
rike-qcpp-010 0.10 600 20.0 x 35.0 EUR 47,60 excl. VAT: € 40.00 / $ 47.20
rike-qcpp-022 0.22 600 25.0 x 35.0 EUR 47,60 excl. VAT: € 40.00 / $ 47.20
rike-qcpp-033 0.33 600 33.0 x 35.0 EUR 53,55 excl. VAT: € 45.00 / $ 53.10
rike-qcpp-047 0.47 600 40.0 x 35.0 EUR 53,55 excl. VAT: € 45.00 / $ 53.10
rike-qcpp-068 0.68 600 50.0 x 35.0 EUR 59,50 excl. VAT: € 50.00 / $ 59.00
rike-qcpp-10 1.0 600 63.0 x 35.0 EUR 59,50 excl. VAT: € 50.00 / $ 59.00
rike-qcpp-15 1.5 600 63.0 x 35.0 EUR 71,40 excl. VAT: € 60.00 / $ 70.80
rike-qcpp-22 2.2 600 63.0 x 55.0 EUR 95,20 excl. VAT: € 80.00 / $ 94.40
rike-qcpp-25 2.5 600 63.0 x 55.0 - not available (_)
rike-qcpp-27 2.7 600 63.0 x 55.0 - not available (_)
rike-qcpp-33 3.3 600 75.0 x 55.0 EUR 142,80 excl. VAT: € 120.00 / $ 141.60
rike-qcpp-39 3.9 600 75.0 x 55.0 EUR 178,50 excl. VAT: € 150.00 / $ 177.00
rike-qcpp-47 4.7 600 90.0 x 55.0 EUR 214,20 excl. VAT: € 180.00 / $ 212.40
rike-qcpp-56 5.6 600 90.0 x 55.0 EUR 243,95 excl. VAT: € 205.00 / $ 241.90
rike-qcpp-68 6.8 600 75.0 x 105.0 EUR 273,70 excl. VAT: € 230.00 / $ 271.40
rike-qcpp-100 10.0 600 90.0 x 110.0 EUR 345,10 excl. VAT: € 290.00 / $ 342.20
Selected pairs of capacitors (capacitance difference less than 1%) are available at an additional charge of EUR 2,60 excl. VAT: € 2.18 / $ 2.58
