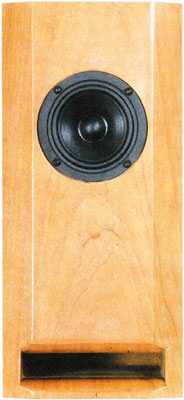

Pico Lino 3 is a small transmission line bookshelf loudspeaker that employs a Scan Speak fullrange loudspeaker 10F-8414G10. Pico Lino 3 has been developed by Bernd Timmermanns.
The crossover consists of a LRC notch filter wired in series. The wave trap reduces the level between 2 and 4 kHz.
Between 60 Hz and 14 kHz, the frequency response of this loudspeaker is suitably flat at a 20 degrees sideways angle. For a wide band driver, the decay spectrum is excellent. At low volume, i.e. 80 dB at 1 m, nonlinear distortion is extremely small.
Kit without cabinet, price per speaker
EUR 107,00 excl. VAT: € 89.92 / $ 104.30
Kit with high-end-crossover without cabinet, price per speaker
EUR 129,00 excl. VAT: € 108.40 / $ 125.75
If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).
If you prefer to mount the crossover components on a 140 x 102 mm universal PCB instead on wood:
Universal PCB RA140, order no.. I-2765, price per unit:
EUR 3,70 excl. VAT: € 3.11 / $ 3.61
We recommend a half or one board per kit (1 to 2 boards for a speaker pair)
