i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

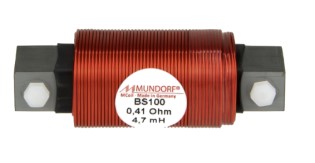

Mundorf i-core coil (Mcoil BS)

Mundorf i-core coil (Mcoil BS)
Enlarge
MCoil Laminated Core Coils combine both the typical low basic output distortions and the low internal resistance of Feron core coils with the enhanced dynamic in music performance of copper wire featuring our Baked Wire Treatment.

They are highly suitable to be used for high quality mid frequency crossover within subwoofer applications. They also offer an excellent value for money ratio as well as the come at compact dimensions.

We offer two different versions:


Please note: The power values Pmax in the following tables were determined at 20 degrees Celsius ambient temperature and free convection. They are just a guideline and - since we are not the manufacturers - cannot be guaranteed by us.

i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

i-core coil Mundorf BS71

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-bs71-33 3.3 0.57 0.71 39 W 23 x 66 EUR 28,90 excl. VAT: € 24.29 / $ 26.23
M-bs71-39 3.9 0.60 0.71 37 W 23 x 66 EUR 29,30 excl. VAT: € 24.62 / $ 26.59
M-bs71-47 4.7 0.70 0.71 32 W 23 x 66 EUR 29,90 excl. VAT: € 25.13 / $ 27.14
M-bs71-56 5.6 0.82 0.71 28 W 24 x 66 EUR 30,30 excl. VAT: € 25.46 / $ 27.50
M-bs71-68 6.8 0.94 0.71 25 W 24 x 66 EUR 30,90 excl. VAT: € 25.97 / $ 28.04
M-bs71-82 8.2 1.1 0.71 22 W 24 x 66 EUR 31,30 excl. VAT: € 26.30 / $ 28.41
M-bs71-100 10.0 1.2 0.71 26 W 26 x 84 EUR 31,90 excl. VAT: € 26.81 / $ 28.95
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

i-core coil Mundorf BS100

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-bs100-20 2.0 0.26 1.00 86 W 23 x 66 EUR 30,90 excl. VAT: € 25.97 / $ 28.04
M-bs100-22 2.2 0.27 1.00 82 W 23 x 66 EUR 31,30 excl. VAT: € 26.30 / $ 28.41
M-bs100-27 2.7 0.30 1.00 74 W 23 x 66 EUR 31,90 excl. VAT: € 26.81 / $ 28.95
M-bs100-30 3.0 0.33 1.00 74 W 25 x 66 EUR 32,20 excl. VAT: € 27.06 / $ 29.22
M-bs100-33 3.3 0.36 1.00 91 W 27 x 84 EUR 32,80 excl. VAT: € 27.56 / $ 29.77
M-bs100-39 3.9 0.40 1.00 82 W 27 x 84 EUR 33,20 excl. VAT: € 27.90 / $ 30.13
M-bs100-47 4.7 0.46 1.00 71 W 27 x 84 EUR 33,80 excl. VAT: € 28.40 / $ 30.68
M-bs100-56 5.6 0.51 1.00 67 W 28 x 84 EUR 34,20 excl. VAT: € 28.74 / $ 31.04
M-bs100-82 8.2 0.62 1.00 57 W 29 x 84 EUR 36,20 excl. VAT: € 30.42 / $ 32.85
M-bs100-100 10.0 0.69 1.00 56 W 31 x 84 EUR 37,10 excl. VAT: € 31.18 / $ 33.67
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

i-core coil Mundorf BS125

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-bs125-33 3.3 0.23 1.25 161 W 30 x 84 EUR 38,10 excl. VAT: € 32.02 / $ 34.58
M-bs125-68 6.8 0.37 1.25 121 W 32 x 96 EUR 45,00 excl. VAT: € 37.82 / $ 40.84
M-bs125-82 8.2 0.41 1.25 109 W 32 x 96 EUR 46,00 excl. VAT: € 38.66 / $ 41.75
M-bs125-100 10.0 0.46 1.25 99 W 34 x 106 EUR 46,90 excl. VAT: € 39.41 / $ 42.56
M-bs125-120 12.0 0.51 1.25 96 W 36 x 106 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

i-core coil Mundorf BS140

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-bs140-12 1.2 0.10 1.4 329 W 27 x 84 EUR 33,20 excl. VAT: € 27.90 / $ 30.13
M-bs140-15 1.5 0.12 1.4 274 W 27 x 84 EUR 34,20 excl. VAT: € 28.74 / $ 31.04
M-bs140-18 1.8 0.14 1.4 245 W 28 x 84 EUR 35,20 excl. VAT: € 29.58 / $ 31.95
M-bs140-20 2.0 0.15 1.4 228 W 28 x 84 EUR 36,20 excl. VAT: € 30.42 / $ 32.85
M-bs140-22 2.2 0.16 1.4 214 W 28 x 84 EUR 37,10 excl. VAT: € 31.18 / $ 33.67
M-bs140-27 2.7 0.17 1.4 235 W 29 x 96 EUR 39,10 excl. VAT: € 32.86 / $ 35.49
M-bs140-30 3.0 0.18 1.4 222 W 29 x 96 EUR 40,10 excl. VAT: € 33.70 / $ 36.39
M-bs140-33 3.3 0.19 1.4 219 W 30 x 96 EUR 41,10 excl. VAT: € 34.54 / $ 37.30
M-bs140-39 3.9 0.21 1.4 205 W 31 x 96 EUR 42,00 excl. VAT: € 35.29 / $ 38.12
M-bs140-47 4.7 0.24 1.4 178 W 32 x 106 EUR 43,00 excl. VAT: € 36.13 / $ 39.03
M-bs140-56 5.6 0.26 1.4 164 W 32 x 106 EUR 45,00 excl. VAT: € 37.82 / $ 40.84
M-bs140-68 6.8 0.30 1.4 152 W 34 x 106 EUR 46,90 excl. VAT: € 39.41 / $ 42.56
M-bs140-82 8.2 0.33 1.4 138 W 34 x 106 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-bs140-100 10.0 0.38 1.4 138 W 35 x 130 EUR 51,80 excl. VAT: € 43.53 / $ 47.01
M-bs140-120 12.0 0.42 1.4 129 W 36 x 130 EUR 54,80 excl. VAT: € 46.05 / $ 49.73
M-bs140-150 15.0 0.48 1.4 116 W 37 x 130 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-bs140-180 18.0 0.54 1.4 106 W 38 x 130 EUR 63,60 excl. VAT: € 53.45 / $ 57.72
M-bs140-220 22.0 0.56 1.4 97 W 39 x 130 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

i-core coil Mundorf BS180

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-bs180-18 1.8 0.09 1.8 507 W 34 x 106 EUR 40,10 excl. VAT: € 33.70 / $ 36.39
M-bs180-20 2.0 0.10 1.8 457 W 34 x 106 EUR 41,50 excl. VAT: € 34.87 / $ 37.66
M-bs180-47 4.7 0.15 1.8 371 W 37 x 130 EUR 52,80 excl. VAT: € 44.37 / $ 47.92
M-bs180-68 6.8 0.19 1.8 311 W 39 x 130 EUR 55,90 excl. VAT: € 46.97 / $ 50.73
M-bs180-82 8.2 0.21 1.8 282 W 39 x 130 EUR 57,80 excl. VAT: € 48.57 / $ 52.46
M-bs180-100 10.0 0.23 1.8 284 W 41 x 150 EUR 63,60 excl. VAT: € 53.45 / $ 57.72
M-bs180-120 12.0 0.26 1.8 265 W 43 x 150 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-bs180-150 15.0 0.30 1.8 242 W 45 x 150 EUR 73,40 excl. VAT: € 61.68 / $ 66.62
M-bs180-180 18.0 0.34 1.8 224 W 47 x 150 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
M-bs180-220 22.0 0.39 1.8 205 W 49 x 150 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

i-core coil Mundorf VS100

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-vs100-47 4.7 0.46 1.00 71 W 27 x 84 EUR 38,10 excl. VAT: € 32.02 / $ 34.58
M-vs100-56 5.6 0.51 1.00 67 W 28 x 84 EUR 39,10 excl. VAT: € 32.86 / $ 35.49
M-vs100-68 6.8 0.56 1.00 64 W 29 x 84 EUR 41,00 excl. VAT: € 34.45 / $ 37.21
M-vs100-82 8.2 0.62 1.00 57 W 29 x 84 EUR 43,00 excl. VAT: € 36.13 / $ 39.03
M-vs100-100 10.0 0.69 1.00 56 W 31 x 84 EUR 44,90 excl. VAT: € 37.73 / $ 40.75
M-vs100-120 12.0 0.76 1.00 54 W 33 x 84 EUR 46,90 excl. VAT: € 39.41 / $ 42.56
M-vs100-150 15.0 0.86 1.00 48 W 33 x 84 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

i-core coil Mundorf VS125

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-vs125-27 2.7 0.20 1.25 174 W 30 x 84 EUR 41,00 excl. VAT: € 34.45 / $ 37.21
M-vs125-33 3.3 0.23 1.25 161 W 30 x 84 EUR 43,00 excl. VAT: € 36.13 / $ 39.03
M-vs125-47 4.7 0.30 1.25 133 W 29 x 96 EUR 46,90 excl. VAT: € 39.41 / $ 42.56
M-vs125-56 5.6 0.33 1.25 136 W 32 x 96 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-vs125-68 6.8 0.37 1.25 121 W 32 x 96 EUR 50,80 excl. VAT: € 42.69 / $ 46.10
M-vs125-82 8.2 0.41 1.25 109 W 32 x 96 EUR 52,80 excl. VAT: € 44.37 / $ 47.92
M-vs125-100 10.0 0.46 1.25 99 W 34 x 106 EUR 55,70 excl. VAT: € 46.81 / $ 50.55
M-vs125-120 12.0 0.51 1.25 96 W 36 x 106 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-vs125-150 15.0 0.59 1.25 83 W 36 x 106 EUR 63,60 excl. VAT: € 53.45 / $ 57.72
M-vs125-180 18.0 0.66 1.25 76 W 37 x 106 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-vs125-220 22.0 0.75 1.25 77 W 38 x 130 EUR 73,40 excl. VAT: € 61.68 / $ 66.62
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

i-core coil Mundorf VS140

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-vs140-10 1.0 0.09 1.4 365 W 27 x 84 EUR 36,10 excl. VAT: € 30.34 / $ 32.76
M-vs140-12 1.2 0.10 1.4 329 W 27 x 84 EUR 37,10 excl. VAT: € 31.18 / $ 33.67
M-vs140-15 1.5 0.12 1.4 274 W 27 x 84 EUR 39,10 excl. VAT: € 32.86 / $ 35.49
M-vs140-18 1.8 0.14 1.4 245 W 28 x 84 EUR 41,00 excl. VAT: € 34.45 / $ 37.21
M-vs140-20 2.0 0.15 1.4 228 W 28 x 84 EUR 36,20 excl. VAT: € 30.42 / $ 32.85
M-vs140-22 2.2 0.16 1.4 214 W 28 x 84 EUR 43,00 excl. VAT: € 36.13 / $ 39.03
M-vs140-27 2.7 0.17 1.4 235 W 29 x 96 EUR 44,90 excl. VAT: € 37.73 / $ 40.75
M-vs140-30 3.0 0.18 1.4 222 W 29 x 96 EUR 40,10 excl. VAT: € 33.70 / $ 36.39
M-vs140-33 3.3 0.19 1.4 219 W 30 x 96 EUR 46,90 excl. VAT: € 39.41 / $ 42.56
M-vs140-39 3.9 0.21 1.4 205 W 31 x 96 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-vs140-47 4.7 0.24 1.4 178 W 32 x 106 EUR 51,80 excl. VAT: € 43.53 / $ 47.01
M-vs140-56 5.6 0.26 1.4 164 W 32 x 106 EUR 54,70 excl. VAT: € 45.97 / $ 49.64
M-vs140-68 6.8 0.30 1.4 152 W 34 x 106 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-vs140-82 8.2 0.33 1.4 138 W 34 x 106 EUR 63,60 excl. VAT: € 53.45 / $ 57.72
M-vs140-100 10.0 0.38 1.4 138 W 35 x 130 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-vs140-120 12.0 0.42 1.4 129 W 36 x 130 EUR 73,40 excl. VAT: € 61.68 / $ 66.62
M-vs140-150 15.0 0.48 1.4 116 W 37 x 130 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
M-vs140-180 18.0 0.54 1.4 106 W 38 x 130 EUR 83,20 excl. VAT: € 69.92 / $ 75.51
M-vs140-220 22.0 0.56 1.4 97 W 39 x 130 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
M-vs140-270 27.0 0.64 1.4 90 W 41 x 130 EUR 93,00 excl. VAT: € 78.15 / $ 84.40
M-vs140-330 33.0 0.74 1.4 82 W 43 x 130 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

i-core coil Mundorf VS180

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-vs180-10 1.0 0.06 1.4 736 W 33 x 106 EUR 46,90 excl. VAT: € 39.41 / $ 42.56
M-vs180-12 1.2 0.07 1.4 631 W 33 x 106 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-vs180-15 1.5 0.08 1.4 552 W 33 x 106 EUR 50,80 excl. VAT: € 42.69 / $ 46.10
M-vs180-18 1.8 0.09 1.4 507 W 34 x 106 EUR 52,80 excl. VAT: € 44.37 / $ 47.92
M-vs180-22 2.2 0.10 1.4 457 W 34 x 106 EUR 55,70 excl. VAT: € 46.81 / $ 50.55
M-vs180-27 2.7 0.11 1.4 429 W 35 x 106 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-vs180-33 3.3 0.13 1.4 375 W 36 x 106 EUR 63,60 excl. VAT: € 53.45 / $ 57.72
M-vs180-39 3.9 0.14 1.4 348 W 36 x 106 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-vs180-47 4.7 0.15 1.4 371 W 37 x 130 EUR 73,40 excl. VAT: € 61.68 / $ 66.62
M-vs180-56 5.6 0.17 1.4 328 W 37 x 130 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
M-vs180-68 6.8 0.19 1.4 311 W 39 x 130 EUR 83,20 excl. VAT: € 69.92 / $ 75.51
M-vs180-82 8.2 0.21 1.4 282 W 39 x 130 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
M-vs180-100 10.0 0.23 1.4 284 W 41 x 150 EUR 93,00 excl. VAT: € 78.15 / $ 84.40
M-vs180-120 12.0 0.26 1.4 274 W 43 x 150 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
M-vs180-150 15.0 0.30 1.4 262 W 45 x 150 EUR 107,70 excl. VAT: € 90.50 / $ 97.74
M-vs180-180 18.0 0.34 1.4 262 W 47 x 150 EUR 117,50 excl. VAT: € 98.74 / $ 106.64
M-vs180-220 22.0 0.39 1.4 257 W 49 x 150 EUR 127,30 excl. VAT: € 106.97 / $ 115.53
M-vs180-270 27.0 0.45 1.4 248 W 51 x 150 EUR 137,10 excl. VAT: € 115.21 / $ 124.43
M-vs180-330 33.0 0.51 1.4 243 W 53 x 150 EUR 156,70 excl. VAT: € 131.68 / $ 142.22
M-vs180-470 47.0 0.58 1.4 226 W 53 x 150 EUR 195,90 excl. VAT: € 164.62 / $ 177.79
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Mundorf i-core coil (Mcoil BS), i-core coil Mundorf VS180
Enlarge
Likewise, there are the coils with copper foil and paper.

i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

i-core coil Mundorf VSCU15

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-VSCU15-010 0.10 0.03 22x0.07 489 W 22 x 84 EUR 37,10 excl. VAT: € 31.18 / $ 33.67
M-VSCU15-012 0.12 0.03 22x0.07 514 W 23 x 84 EUR 37,70 excl. VAT: € 31.68 / $ 34.22
M-VSCU15-015 0.15 0.04 22x0.07 404 W 24 x 84 EUR 38,10 excl. VAT: € 32.02 / $ 34.58
M-VSCU15-018 0.18 0.04 22x0.07 423 W 25 x 84 EUR 38,70 excl. VAT: € 32.52 / $ 35.12
M-VSCU15-022 0.22 0.04 22x0.07 443 W 26 x 84 EUR 39,10 excl. VAT: € 32.86 / $ 35.49
M-VSCU15-027 0.27 0.05 22x0.07 370 W 27 x 84 EUR 40,00 excl. VAT: € 33.61 / $ 36.30
M-VSCU15-033 0.33 0.05 22x0.07 215 W 28 x 84 EUR 41,00 excl. VAT: € 34.45 / $ 37.21
M-VSCU15-039 0.39 0.06 22x0.07 334 W 29 x 84 EUR 42,00 excl. VAT: € 35.29 / $ 38.12
M-VSCU15-047 0.47 0.07 22x0.07 321 W 32 x 84 EUR 43,00 excl. VAT: € 36.13 / $ 39.03
M-VSCU15-056 0.56 0.07 22x0.07 321 W 32 x 84 EUR 44,90 excl. VAT: € 37.73 / $ 40.75
M-VSCU15-068 0.68 0.08 22x0.07 179 W 33 x 84 EUR 46,90 excl. VAT: € 39.41 / $ 42.56
M-VSCU15-082 0.82 0.09 22x0.07 168 W 34 x 84 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-VSCU15-10 1.0 0.10 22x0.07 258 W 36 x 84 EUR 50,80 excl. VAT: € 42.69 / $ 46.10
M-VSCU15-12 1.2 0.12 22x0.07 236 W 39 x 84 EUR 52,80 excl. VAT: € 44.37 / $ 47.92
M-VSCU15-15 1.5 0.14 22x0.07 215 W 41 x 84 EUR 55,70 excl. VAT: € 46.81 / $ 50.55
M-VSCU15-18 1.8 0.16 22x0.07 205 W 44 x 84 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-VSCU15-22 2.2 0.18 22x0.07 168 W 47 x 84 EUR 63,60 excl. VAT: € 53.45 / $ 57.72
M-VSCU15-27 2.7 0.21 22x0.07 187 W 51 x 84 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-VSCU15-33 3.3 0.24 22x0.07 179 W 55 x 84 EUR 73,40 excl. VAT: € 61.68 / $ 66.62
M-VSCU15-39 3.9 0.28 22x0.07 168 W 59 x 84 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
M-VSCU15-47 4.7 0.31 22x0.07 178 W 62 x 96 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
M-VSCU15-56 5.6 0.35 22x0.07 168 W 65 x 96 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
M-VSCU15-68 6.8 0.41 22x0.07 160 W 71 x 96 EUR 107,70 excl. VAT: € 90.50 / $ 97.74
M-VSCU15-82 8.2 0.48 22x0.07 149 W 76 x 96 EUR 117,50 excl. VAT: € 98.74 / $ 106.64
M-VSCU15-100 10.0 0.56 22x0.07 145 W 84 x 96 EUR 127,30 excl. VAT: € 106.97 / $ 115.53
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

i-core coil Mundorf VSCU12

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-VSCU12-10 1.0 0.05 44x0.07 795 W 38 x 130 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-VSCU12-12 1.2 0.06 44x0.07 702 W 40 x 130 EUR 73,40 excl. VAT: € 61.68 / $ 66.62
M-VSCU12-15 1.5 0.07 44x0.07 636 W 42 x 130 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
M-VSCU12-18 1.8 0.08 44x0.07 618 W 46 x 130 EUR 83,20 excl. VAT: € 69.92 / $ 75.51
M-VSCU12-22 2.2 0.09 44x0.07 577 W 48 x 130 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
M-VSCU12-27 2.7 0.10 44x0.07 557 W 51 x 130 EUR 93,00 excl. VAT: € 78.15 / $ 84.40
M-VSCU12-33 3.3 0.12 44x0.07 507 W 55 x 130 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
M-VSCU12-39 3.9 0.13 44x0.07 498 W 58 x 130 EUR 107,70 excl. VAT: € 90.50 / $ 97.74
M-VSCU12-47 4.7 0.15 44x0.07 458 W 61 x 130 EUR 122,40 excl. VAT: € 102.86 / $ 111.09
M-VSCU12-56 5.6 0.17 44x0.07 436 W 65 x 130 EUR 137,10 excl. VAT: € 115.21 / $ 124.43
M-VSCU12-68 6.8 0.20 44x0.07 412 W 71 x 130 EUR 156,70 excl. VAT: € 131.68 / $ 142.22
M-VSCU12-82 8.2 0.23 44x0.07 383 W 75 x 130 EUR 186,10 excl. VAT: € 156.39 / $ 168.90
M-VSCU12-100 10.0 0.28 44x0.07 352 W 82 x 130 EUR 215,50 excl. VAT: € 181.09 / $ 195.58
M-VSCU12-120 12.0 0.32 44x0.07 336 W 88 x 130 EUR 244,90 excl. VAT: € 205.80 / $ 222.26
M-VSCU12-150 15.0 0.38 44x0.07 316 W 96 x 130 EUR 274,30 excl. VAT: € 230.50 / $ 248.94
M-VSCU12-180 18.0 0.45 44x0.07 299 W 105 x 130 EUR 323,30 excl. VAT: € 271.68 / $ 293.42
M-VSCU12-220 22.0 0.54 44x0.07 296 W 120 x 130 EUR 372,30 excl. VAT: € 312.86 / $ 337.89
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Only for our DIY kits (discontinued)

i-core coils BS71 BS100 BS125 BS140 BS180 VS100 VS125 VS140 VS180 with paper VSCU 15 VSCU 12

i-core coil Mundorf CFS

Only for our DIY kits (discontinued), i-core coil Mundorf CFS
Enlarge
The coils are available with the following wire cross sections:

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-cfs16-15 1.5 0.19 1.23 154 W 37 x 66 EUR 41,90 excl. VAT: € 35.21 / $ 38.03
M-cfs14-22 2.2 0.16 1.6 312 W 45 x 96 EUR 53,90 excl. VAT: € 45.29 / $ 48.92
M-cfs12-150 15.0 0.36 44x0.07 365 W 82 x 130 EUR 163,90 excl. VAT: € 137.73 / $ 148.75
M-cfs10-47 4.7 0.10 70x0.07 991 W 59 x 150 EUR 159,90 excl. VAT: € 134.37 / $ 145.12
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.
