to the foil coils CFC18 CFC16 CFC14 CFC12 CFC10 with silver foil SFC16 SFC14 silver/gold SGFC16 SGFC14

Mundorf Copper Foil coils (CFC)

Mundorf Copper Foil coils (CFC)
Enlarge
Air core coils are the best possible solution. To ensure a capacitive coupling only to neighbouring and not all turns, Mundorf manufactures an oxygen free copper foil coil (OFC copper). The coil shows a consistent performance even beyond 100 kHz. The large surface reduces the skin effect (higher frequencies are carried on the copper surface).

Additionally, the coil has a tough, yet elastic isolation made from polypropylene foil ensuring a high mechanical stability and, therefore, suppressing vibrations efficiently.

A lab test carried out by Hobby HiFi (4/2000, starting at page 66) confirms both points: this coil is far better than vacuum impregnated round wire coils or baked varnish coils (and obviously standard coils) and is clearly superior to TRITEC coils and foil coils by CFAG (vibration, microphonics).

Mundorf is certain that these characteristics cause a considerable improvement in dynamics, attention to detail and three-dimensionality. This type of CFC coils you'll find e.g. in the Magnat Vintage 990 setting you back some 40.000 EUR (ref. Stereoplay 12/2001 page 12). Mundorf CFC Cupferfolien-Spule Mundorf CFC Air Core Coil In the picture you'll notice the tightly wound coil and above the wide foil connectors that can be shortened to the required length.

Cross section of the foil coils
11.5 x 0.07mm = 0.81mm² · AWG 18 (like wire with 1.02 mm diameter)
17.0 x 0.07mm = 1.19mm² · AWG 16 (like wire with 1.23 mm diameter)
22.0 x 0.07mm = 1.54mm² · AWG 15 (like wire with 1.4 mm diameter)
28.0 x 0.07mm = 1.96mm² · AWG 14 (like wire with 1.58 mm diameter)
44.0 x 0.07mm = 3.08mm² · AWG 12 (like wire with 1.98 mm diameter)
70.0 x 0.07mm = 4.90mm² · AWG 10 (like wire with 2.5 mm diameter)
70.0 x 0.10mm = 7.00mm² · AWG 9 (like wire with 2.99 mmdiameter)
70.0 x 0.15mm = 10.50mm² · AWG 7 (like wire with 3.7 mm diameter)

to the foil coils CFC18 CFC16 CFC14 CFC12 CFC10 with silver foil SFC16 SFC14 silver/gold SGFC16 SGFC14

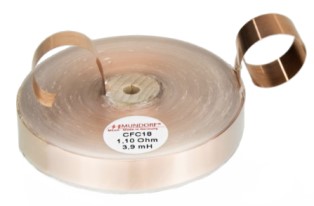

Mundorf copper foil coil CFC 18

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-cfc18-010 0.10 0.13 11.5x0.07 131 W 32 x 18 EUR 12,60 excl. VAT: € 10.59 / $ 11.44
M-cfc18-012 0.12 0.14 11.5x0.07 127 W 33 x 18 EUR 13,60 excl. VAT: € 11.43 / $ 12.34
M-cfc18-015 0.15 0.16 11.5x0.07 121 W 35 x 18 EUR 14,60 excl. VAT: € 12.27 / $ 13.25
M-cfc18-018 0.18 0.19 11.5x0.07 106 W 36 x 18 EUR 15,50 excl. VAT: € 13.03 / $ 14.07
M-cfc18-022 0.22 0.20 11.5x0.07 110 W 38 x 18 EUR 16,50 excl. VAT: € 13.87 / $ 14.97
M-cfc18-027 0.27 0.23 11.5x0.07 103 W 40 x 18 EUR 17,50 excl. VAT: € 14.71 / $ 15.88
M-cfc18-033 0.33 0.26 11.5x0.07 98 W 42 x 18 EUR 18,50 excl. VAT: € 15.55 / $ 16.79
M-cfc18-039 0.39 0.28 11.5x0.07 95 W 43 x 18 EUR 19,50 excl. VAT: € 16.39 / $ 17.70
M-cfc18-047 0.47 0.31 11.5x0.07 92 W 45 x 18 EUR 21,40 excl. VAT: € 17.98 / $ 19.42
M-cfc18-056 0.56 0.35 11.5x0.07 87 W 47 x 18 EUR 25,40 excl. VAT: € 21.34 / $ 23.05
M-cfc18-068 0.68 0.39 11.5x0.07 83 W 49 x 18 EUR 25,30 excl. VAT: € 21.26 / $ 22.96
M-cfc18-082 0.82 0.43 11.5x0.07 83 W 52 x 18 EUR 27,30 excl. VAT: € 22.94 / $ 24.78
M-cfc18-10 1.0 0.48 11.5x0.07 79 W 54 x 18 EUR 29,30 excl. VAT: € 24.62 / $ 26.59
M-cfc18-12 1.2 0.55 11.5x0.07 75 W 57 x 18 EUR 31,20 excl. VAT: € 26.22 / $ 28.32
M-cfc18-15 1.5 0.62 11.5x0.07 74 W 61 x 18 EUR 34,20 excl. VAT: € 28.74 / $ 31.04
M-cfc18-18 1.8 0.69 11.5x0.07 71 W 63 x 18 EUR 37,10 excl. VAT: € 31.18 / $ 33.67
M-cfc18-20 2.0 0.74 11.5x0.07 69 W 65 x 18 EUR 31,50 excl. VAT: € 26.47 / $ 28.59
M-cfc18-22 2.2 0.78 11.5x0.07 71 W 68 x 18 EUR 41,00 excl. VAT: € 34.45 / $ 37.21
M-cfc18-27 2.7 0.89 11.5x0.07 68 W 72 x 18 EUR 44,90 excl. VAT: € 37.73 / $ 40.75
M-cfc18-30 3.0 0.95 11.5x0.07 67 W 74 x 18 EUR 36,50 excl. VAT: € 30.67 / $ 33.13
M-cfc18-33 3.3 1.0 11.5x0.07 66 W 76 x 18 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-cfc18-39 3.9 1.1 11.5x0.07 66 W 80 x 18 EUR 54,70 excl. VAT: € 45.97 / $ 49.64
M-cfc18-47 4.7 1.3 11.5x0.07 60 W 84 x 18 EUR 61,60 excl. VAT: € 51.76 / $ 55.91
M-cfc18-56 5.6 1.4 11.5x0.07 61 W 88 x 18 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-cfc18-68 6.8 1.6 11.5x0.07 60 W 94 x 18 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
M-cfc18-82 8.2 1.8 11.5x0.07 59 W 100 x 18 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
M-cfc18-100 10.0 2.0 11.5x0.07 61 W 108 x 18 EUR 71,90 excl. VAT: € 60.42 / $ 65.25
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

to the foil coils CFC18 CFC16 CFC14 CFC12 CFC10 with silver foil SFC16 SFC14 silver/gold SGFC16 SGFC14

Mundorf copper foil coil CFC 16

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-cfc16-010 0.10 0.10 17x0.07 217 W 34 x 24 EUR 16,50 excl. VAT: € 13.87 / $ 14.97
M-cfc16-012 0.12 0.10 17x0.07 227 W 35 x 24 EUR 17,50 excl. VAT: € 14.71 / $ 15.88
M-cfc16-015 0.15 0.12 17x0.07 204 W 37 x 24 EUR 18,50 excl. VAT: € 15.55 / $ 16.79
M-cfc16-018 0.18 0.13 17x0.07 196 W 38 x 24 EUR 19,50 excl. VAT: € 16.39 / $ 17.70
M-cfc16-022 0.22 0.15 17x0.07 170 W 38 x 24 EUR 21,40 excl. VAT: € 17.98 / $ 19.42
M-cfc16-027 0.27 0.16 17x0.07 184 W 42 x 24 EUR 23,40 excl. VAT: € 19.66 / $ 21.24
M-cfc16-033 0.33 0.18 17x0.07 175 W 44 x 24 EUR 25,30 excl. VAT: € 21.26 / $ 22.96
M-cfc16-039 0.39 0.20 17x0.07 169 W 46 x 24 EUR 27,30 excl. VAT: € 22.94 / $ 24.78
M-cfc16-047 0.47 0.23 17x0.07 156 W 48 x 24 EUR 29,30 excl. VAT: € 24.62 / $ 26.59
M-cfc16-056 0.56 0.26 17x0.07 147 W 50 x 24 EUR 31,20 excl. VAT: € 26.22 / $ 28.32
M-cfc16-068 0.68 0.29 17x0.07 140 W 52 x 24 EUR 34,20 excl. VAT: € 28.74 / $ 31.04
M-cfc16-082 0.82 0.32 17x0.07 134 W 54 x 24 EUR 37,10 excl. VAT: € 31.18 / $ 33.67
M-cfc16-10 1.0 0.37 17x0.07 126 W 57 x 24 EUR 41,00 excl. VAT: € 34.45 / $ 37.21
M-cfc16-12 1.2 0.41 17x0.07 126 W 61 x 24 EUR 44,90 excl. VAT: € 37.73 / $ 40.75
M-cfc16-15 1.5 0.47 17x0.07 122 W 65 x 24 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-cfc16-18 1.8 0.50 17x0.07 129 W 70 x 24 EUR 53,80 excl. VAT: € 45.21 / $ 48.83
M-cfc16-22 2.2 0.59 17x0.07 114 W 72 x 24 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-cfc16-27 2.7 0.66 17x0.07 114 W 77 x 24 EUR 65,50 excl. VAT: € 55.04 / $ 59.45
M-cfc16-33 3.3 0.74 17x0.07 110 W 81 x 24 EUR 73,40 excl. VAT: € 61.68 / $ 66.62
M-cfc16-39 3.9 0.84 17x0.07 105 W 85 x 24 EUR 83,20 excl. VAT: € 69.92 / $ 75.51
M-cfc16-47 4.7 0.93 17x0.07 106 W 91 x 24 EUR 93,00 excl. VAT: € 78.15 / $ 84.40
M-cfc16-56 5.6 1.1 17x0.07 101 W 95 x 24 EUR 102,80 excl. VAT: € 86.39 / $ 93.30
M-cfc16-68 6.8 1.2 17x0.07 101 W 102 x 24 EUR 112,60 excl. VAT: € 94.62 / $ 102.19
M-cfc16-82 8.2 1.3 17x0.07 100 W 108 x 24 EUR 122,40 excl. VAT: € 102.86 / $ 111.09
M-cfc16-100 10.0 1.5 17x0.07 97 W 115 x 24 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

to the foil coils CFC18 CFC16 CFC14 CFC12 CFC10 with silver foil SFC16 SFC14 silver/gold SGFC16 SGFC14

Mundorf copper foil coil CFC 14

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-cfc14-0050 0.47 0.04 28x0.07 730 W 36 x 34 EUR 16,10 excl. VAT: € 13.53 / $ 14.61
M-cfc14-010 0.10 0.07 28x0.07 417 W 36 x 34 EUR 23,40 excl. VAT: € 19.66 / $ 21.24
M-cfc14-012 0.12 0.08 28x0.07 379 W 37 x 34 EUR 25,30 excl. VAT: € 21.26 / $ 22.96
M-cfc14-015 0.15 0.09 28x0.07 362 W 39 x 34 EUR 27,30 excl. VAT: € 22.94 / $ 24.78
M-cfc14-018 0.18 0.09 28x0.07 400 W 42 x 34 EUR 29,30 excl. VAT: € 24.62 / $ 26.59
M-cfc14-022 0.22 0.11 28x0.07 338 W 43 x 34 EUR 32,20 excl. VAT: € 27.06 / $ 29.22
M-cfc14-027 0.27 0.12 28x0.07 320 W 44 x 34 EUR 35,10 excl. VAT: € 29.50 / $ 31.86
M-cfc14-033 0.33 0.13 28x0.07 324 W 47 x 34 EUR 38,10 excl. VAT: € 32.02 / $ 34.58
M-cfc14-039 0.39 0.15 28x0.07 298 W 49 x 34 EUR 41,00 excl. VAT: € 34.45 / $ 37.21
M-cfc14-047 0.47 0.17 28x0.07 286 W 52 x 34 EUR 44,90 excl. VAT: € 37.73 / $ 40.75
M-cfc14-056 0.56 0.18 28x0.07 285 W 54 x 34 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-cfc14-068 0.68 0.20 28x0.07 300 W 60 x 34 EUR 53,80 excl. VAT: € 45.21 / $ 48.83
M-cfc14-082 0.82 0.22 28x0.07 293 W 63 x 34 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-cfc14-10 1.0 0.26 28x0.07 253 W 64 x 34 EUR 65,50 excl. VAT: € 55.04 / $ 59.45
M-cfc14-12 1.2 0.29 28x0.07 249 W 68 x 34 EUR 72,40 excl. VAT: € 60.84 / $ 65.71
M-cfc14-15 1.5 0.33 28x0.07 228 W 70 x 34 EUR 80,20 excl. VAT: € 67.39 / $ 72.79
M-cfc14-18 1.8 0.36 28x0.07 214 W 71 x 34 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
M-cfc14-20 2.0 0.39 28x0.07 215 W 75 x 34 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
M-cfc14-22 2.2 0.41 28x0.07 217 W 78 x 34 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
M-cfc14-27 2.7 0.46 28x0.07 193 W 78 x 34 EUR 107,70 excl. VAT: € 90.50 / $ 97.74
M-cfc14-30 3.0 0.48 28x0.07 215 W 86 x 34 EUR 122,40 excl. VAT: € 102.86 / $ 111.09
M-cfc14-33 3.3 0.50 28x0.07 234 W 93 x 34 EUR 122,40 excl. VAT: € 102.86 / $ 111.09
M-cfc14-39 3.9 0.53 28x0.07 228 W 95 x 34 EUR 132,20 excl. VAT: € 111.09 / $ 119.98
M-cfc14-47 4.7 0.64 28x0.07 205 W 100 x 34 EUR 146,90 excl. VAT: € 123.45 / $ 133.32
M-cfc14-56 5.6 0.68 28x0.07 208 W 105 x 34 EUR 161,60 excl. VAT: € 135.80 / $ 146.66
M-cfc14-68 6.8 0.74 28x0.07 212 W 112 x 34 EUR 176,30 excl. VAT: € 148.15 / $ 160.00
M-cfc14-82 8.2 0.90 28x0.07 190 W 118 x 34 EUR 195,90 excl. VAT: € 164.62 / $ 177.79
M-cfc14-100 10.0 1.2 28x0.07 175 W 135 x 34 EUR 127,00 excl. VAT: € 106.72 / $ 115.26
M-cfc14-120 12.0 1.2 28x0.07 175 W 135 x 34 EUR 147,00 excl. VAT: € 123.53 / $ 133.41
M-cfc14-150 15.0 1.4 28x0.07 165 W 140 x 34 EUR 176,00 excl. VAT: € 147.90 / $ 159.73
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

to the foil coils CFC18 CFC16 CFC14 CFC12 CFC10 with silver foil SFC16 SFC14 silver/gold SGFC16 SGFC14

Mundorf copper foil coil CFC 12

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-cfc12-010 0.10 0.05 44x0.07 842 W 38 x 52 EUR 41,00 excl. VAT: € 34.45 / $ 37.21
M-cfc12-012 0.12 0.06 44x0.07 749 W 40 x 52 EUR 43,00 excl. VAT: € 36.13 / $ 39.03
M-cfc12-015 0.15 0.06 44x0.07 797 W 42 x 52 EUR 45,90 excl. VAT: € 38.57 / $ 41.66
M-cfc12-018 0.18 0.06 44x0.07 822 W 43 x 52 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-cfc12-022 0.22 0.08 44x0.07 692 W 47 x 52 EUR 53,80 excl. VAT: € 45.21 / $ 48.83
M-cfc12-027 0.27 0.09 44x0.07 650 W 49 x 52 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-cfc12-033 0.33 0.10 44x0.07 601 W 50 x 52 EUR 63,60 excl. VAT: € 53.45 / $ 57.72
M-cfc12-039 0.39 0.11 44x0.07 575 W 52 x 52 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-cfc12-047 0.47 0.12 44x0.07 555 W 54 x 52 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
M-cfc12-056 0.56 0.14 44x0.07 487 W 55 x 52 EUR 83,20 excl. VAT: € 69.92 / $ 75.51
M-cfc12-068 0.68 0.15 44x0.07 512 W 60 x 52 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
M-cfc12-082 0.82 0.17 44x0.07 504 W 65 x 52 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
M-cfc12-10 1.0 0.19 44x0.07 490 W 69 x 52 EUR 107,70 excl. VAT: € 90.50 / $ 97.74
M-cfc12-12 1.2 0.21 44x0.07 480 W 73 x 52 EUR 117,50 excl. VAT: € 98.74 / $ 106.64
M-cfc12-15 1.5 0.24 44x0.07 445 W 76 x 52 EUR 127,30 excl. VAT: € 106.97 / $ 115.53
M-cfc12-18 1.8 0.26 44x0.07 450 W 81 x 52 EUR 137,10 excl. VAT: € 115.21 / $ 124.43
M-cfc12-22 2.2 0.29 44x0.07 439 W 86 x 52 EUR 156,70 excl. VAT: € 131.68 / $ 142.22
M-cfc12-27 2.7 0.33 44x0.07 426 W 92 x 52 EUR 176,30 excl. VAT: € 148.15 / $ 160.00
M-cfc12-33 3.3 0.37 44x0.07 417 W 98 x 52 EUR 195,90 excl. VAT: € 164.62 / $ 177.79
M-cfc12-39 3.9 0.39 44x0.07 426 W 103 x 52 EUR 215,50 excl. VAT: € 181.09 / $ 195.58
M-cfc12-47 4.7 0.46 44x0.07 388 W 108 x 52 EUR 240,00 excl. VAT: € 201.68 / $ 217.82
M-cfc12-56 5.6 0.50 44x0.07 383 W 113 x 52 EUR 264,50 excl. VAT: € 222.27 / $ 240.05
M-cfc12-68 6.8 0.56 44x0.07 365 W 118 x 52 EUR 293,90 excl. VAT: € 246.97 / $ 266.73
M-cfc12-82 8.2 0.63 44x0.07 354 W 125 x 52 EUR 342,90 excl. VAT: € 288.15 / $ 311.20
M-cfc12-100 10.0 0.72 44x0.07 370 W 140 x 52 EUR 235,00 excl. VAT: € 197.48 / $ 213.28
M-cfc12-120 12.0 0.85 44x0.07 313 W 140 x 52 EUR 265,00 excl. VAT: € 222.69 / $ 240.50
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

to the foil coils CFC18 CFC16 CFC14 CFC12 CFC10 with silver foil SFC16 SFC14 silver/gold SGFC16 SGFC14

Mundorf copper foil coil CFC 10

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-cfc10-010 0.10 0.04 70x0.07 1699 W 44 x 77 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-cfc10-012 0.12 0.04 70x0.07 1699 W 44 x 77 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
M-cfc10-015 0.15 0.05 70x0.07 1397 W 45 x 77 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
M-cfc10-018 0.18 0.05 70x0.07 1513 W 48 x 77 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
M-cfc10-022 0.22 0.06 70x0.07 1293 W 49 x 77 EUR 107,70 excl. VAT: € 90.50 / $ 97.74
M-cfc10-027 0.27 0.06 70x0.07 1393 W 52 x 77 EUR 117,50 excl. VAT: € 98.74 / $ 106.64
M-cfc10-033 0.33 0.07 70x0.07 1252 W 54 x 77 EUR 127,30 excl. VAT: € 106.97 / $ 115.53
M-cfc10-039 0.39 0.08 70x0.07 1147 W 56 x 77 EUR 137,10 excl. VAT: € 115.21 / $ 124.43
M-cfc10-047 0.47 0.09 70x0.07 1066 W 58 x 77 EUR 146,90 excl. VAT: € 123.45 / $ 133.32
M-cfc10-056 0.56 0.10 70x0.07 1023 W 61 x 77 EUR 161,60 excl. VAT: € 135.80 / $ 146.66
M-cfc10-068 0.68 0.11 70x0.07 1009 W 65 x 77 EUR 176,30 excl. VAT: € 148.15 / $ 160.00
M-cfc10-082 0.82 0.12 70x0.07 1000 W 69 x 77 EUR 195,90 excl. VAT: € 164.62 / $ 177.79
M-cfc10-10 1.0 0.14 70x0.07 940 W 74 x 77 EUR 215,50 excl. VAT: € 181.09 / $ 195.58
M-cfc10-12 1.2 0.15 70x0.07 925 W 77 x 77 EUR 235,10 excl. VAT: € 197.56 / $ 213.37
M-cfc10-15 1.5 0.17 70x0.07 859 W 80 x 77 EUR 259,60 excl. VAT: € 218.15 / $ 235.60
M-cfc10-18 1.8 0.19 70x0.07 808 W 83 x 77 EUR 284,10 excl. VAT: € 238.74 / $ 257.84
M-cfc10-22 2.2 0.21 70x0.07 791 W 88 x 77 EUR 313,50 excl. VAT: € 263.45 / $ 284.52
M-cfc10-27 2.7 0.23 70x0.07 768 W 92 x 77 EUR 342,90 excl. VAT: € 288.15 / $ 311.20
M-cfc10-33 3.3 0.27 70x0.07 724 W 99 x 77 EUR 391,90 excl. VAT: € 329.33 / $ 355.67
M-cfc10-39 3.9 0.28 70x0.07 747 W 104 x 77 EUR 440,90 excl. VAT: € 370.50 / $ 400.14
M-cfc10-47 4.7 0.31 70x0.07 721 W 109 x 77 EUR 489,90 excl. VAT: € 411.68 / $ 444.62
M-cfc10-56 5.6 0.36 70x0.07 662 W 114 x 77 EUR 538,90 excl. VAT: € 452.86 / $ 489.09
M-cfc10-68 6.8 0.41 70x0.07 633 W 121 x 77 EUR 587,90 excl. VAT: € 494.03 / $ 533.56
M-cfc10-82 8.2 0.47 70x0.07 579 W 125 x 77 EUR 666,30 excl. VAT: € 559.92 / $ 604.71
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.



Mundorf Silver Foil Coils SFC16

MCoil SFC silverfoil coils have been developed for uncompromising state-of-the-art audio applications focused on absolutely flawless and a holographic 3D-like performance at utmost dynamics providing a considerably increased range of vivid. subtle timbres and precision.

Due to changing raw material prices, the prices of the coils are on request.

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-sfc16-010 0.10 0.09 17x0.07 252 W 35 x 24 on request
M-sfc16-012 0.12 0.09 17x0.07 262 W 36 x 24 on request
M-sfc16-015 0.15 0.10 17x0.07 255 W 38 x 24 on request
M-sfc16-018 0.18 0.11 17x0.07 241 W 39 x 24 on request
M-sfc16-022 0.22 0.12 17x0.07 229 W 40 x 24 on request
M-sfc16-027 0.27 0.14 17x0.07 211 W 42 x 24 on request
M-sfc16-033 0.33 0.16 17x0.07 197 W 44 x 24 on request
M-sfc16-039 0.39 0.18 17x0.07 187 W 46 x 24 on request
M-sfc16-047 0.47 0.20 17x0.07 180 W 48 x 24 on request
M-sfc16-068 0.68 0.23 17x0.07 176 W 52 x 24 on request
M-sfc16-082 0.82 0.26 17x0.07 165 W 54 x 24 on request
M-sfc16-10 1.0 0.30 17x0.07 160 W 58 x 24 on request
M-sfc16-12 1.2 0.34 17x0.07 153 W 61 x 24 on request
M-sfc16-15 1.5 0.39 17x0.07 147 W 65 x 24 on request
M-sfc16-18 1.8 0.45 17x0.07 143 W 70 x 24 on request
M-sfc16-22 2.2 0.49 17x0.07 138 W 72 x 24 on request
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Mundorf Silver Foil Coils SFC14

Mundorf Copper Foil coils (CFC), Mundorf Silver Foil Coils SFC14
L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Due to changing raw material prices, the prices of the coils are on request.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-sfc14-010 0.10 0.06 28x0.07 542 W 39 x 34 on request
M-sfc14-012 0.12 0.08 28x0.07 421 W 40 x 34 on request
M-sfc14-015 0.15 0.08 28x0.07 421 W 40 x 34 on request
M-sfc14-018 0.18 0.09 28x0.07 387 W 41 x 34 on request
M-sfc14-022 0.22 0.11 28x0.07 338 W 43 x 34 on request
M-sfc14-027 0.27 0.12 28x0.07 341 W 46 x 34 on request
M-sfc14-033 0.33 0.12 28x0.07 373 W 49 x 34 on request
M-sfc14-039 0.39 0.14 28x0.07 338 W 51 x 34 on request
M-sfc14-047 0.47 0.15 28x0.07 361 W 56 x 34 on request
M-sfc14-068 0.68 0.18 28x0.07 333 W 60 x 34 on request
M-sfc14-082 0.82 0.20 28x0.07 322 W 63 x 34 on request
M-sfc14-10 1.0 0.23 28x0.07 300 W 66 x 34 on request
M-sfc14-12 1.2 0.25 28x0.07 289 W 68 x 34 on request
M-sfc14-15 1.5 0.27 28x0.07 279 W 70 x 34 on request
M-sfc14-18 1.8 0.29 28x0.07 283 W 74 x 34 on request
M-sfc14-22 2.2 0.32 28x0.07 278 W 78 x 34 on request
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.



Mundorf Silver Gold Foil Coils SGFC 16

Mundorf Copper Foil coils (CFC), Mundorf Silver Gold Foil Coils SGFC 16
According to Mundorf the outstanding sound characteristics of the SFC series can be further enhanced by the addition of 1% gold of the highest purity.

Due to changing raw material prices, the prices of the coils are on request.

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-sgfc16-010 0.10 0.09 17x0.07 252 W 35 x 24 on request
M-sgfc16-012 0.12 0.09 17x0.07 262 W 36 x 24 on request
M-sgfc16-015 0.15 0.10 17x0.07 255 W 38 x 24 on request
M-sgfc16-018 0.18 0.11 17x0.07 241 W 39 x 24 on request
M-sgfc16-022 0.22 0.12 17x0.07 229 W 40 x 24 on request
M-sgfc16-027 0.27 0.14 17x0.07 211 W 42 x 24 on request
M-sgfc16-033 0.33 0.17 17x0.07 186 W 44 x 24 on request
M-sgfc16-039 0.39 0.18 17x0.07 187 W 46 x 24 on request
M-sgfc16-047 0.47 0.20 17x0.07 180 W 48 x 24 on request
M-sgfc16-068 0.68 0.23 17x0.07 176 W 52 x 24 on request
M-sgfc16-082 0.82 0.26 17x0.07 165 W 54 x 24 on request
M-sgfc16-10 1.0 0.30 17x0.07 160 W 58 x 24 on request
M-sgfc16-12 1.2 0.34 17x0.07 153 W 61 x 24 on request
M-sgfc16-15 1.5 0.39 17x0.07 147 W 65 x 24 on request
M-sgfc16-18 1.8 0.45 17x0.07 143 W 70 x 24 on request
M-sgfc16-22 2.2 0.49 17x0.07 138 W 72 x 24 on request
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Mundorf Silver Gold Foil Coils SGFC 14

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Due to changing raw material prices, the prices of the coils are on request.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-sgfc14-010 0.10 0.06 28x0.07 542 W 39 x 34 on request
M-sgfc14-012 0.12 0.07 28x0.07 481 W 40 x 34 on request
M-sgfc14-015 0.15 0.08 28x0.07 421 W 40 x 34 on request
M-sgfc14-018 0.18 0.09 28x0.07 387 W 41 x 34 on request
M-sgfc14-022 0.22 0.10 28x0.07 372 W 43 x 34 on request
M-sgfc14-027 0.27 0.11 28x0.07 372 W 46 x 34 on request
M-sgfc14-033 0.33 0.13 28x0.07 344 W 49 x 34 on request
M-sgfc14-039 0.39 0.14 28x0.07 338 W 51 x 34 on request
M-sgfc14-047 0.47 0.17 28x0.07 319 W 56 x 34 on request
M-sgfc14-068 0.68 0.21 28x0.07 285 W 60 x 34 on request
M-sgfc14-082 0.82 0.23 28x0.07 280 W 63 x 34 on request
M-sgfc14-10 1.0 0.24 28x0.07 287 W 66 x 34 on request
M-sgfc14-12 1.2 0.25 28x0.07 289 W 68 x 34 on request
M-sgfc14-15 1.5 0.26 28x0.07 290 W 70 x 34 on request
M-sgfc14-18 1.8 0.29 28x0.07 283 W 74 x 34 on request
M-sgfc14-22 2.2 0.32 28x0.07 278 W 78 x 34 on request
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.
