Baked varnish BL71 100 125 140 180 vakuum impregnated VL236 VL300 VL390

Baked varnish and vakuum impregnatedair coils

Baked varnish and vakuum impregnatedair coils
Mundorf is regarded as specialist in high-end components. We have, therefore, listed the most interesting ones below. All listed coils are made of copper lacquer wire with a purity of>99.99%. The coil body is made of glass fibre reinforced polyamide. The wire ends are tinned and labelled. Inductance is measured at 25 degrees Celsius; tolerance is +/- 3%.


Air coils (i.e. coils without a ferro-magnetic core) are absolutely distortion-free, which on the face of it makes them ideal for all audio applications. The trouble is, their electrical resistance increases with their inductance. There are two solutions to this problem: One can either use very thick windings (this is why our standard range includes windings with wire up to 3mm in diameter) or coils with cores. Lower cost and smaller size are also common reasons for choosing cored coils.



Please note: The power values Pmax in the following tables were determined at 20 degrees Celsius ambient temperature and free convection. They are just a guideline and - since we are not the manufacturers - cannot be guaranteed by us.

Baked varnish BL71 100 125 140 180 vakuum impregnated VL236 VL300 VL390

Mundorf air coil BL71

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-BL71-001 0.010 0.10 0.71 49 W 25 x 10 EUR 5,00 excl. VAT: € 4.20 / $ 4.54
M-BL71-0012 0.012 0.12 0.71 42 W 25 x 10 EUR 5,10 excl. VAT: € 4.29 / $ 4.63
M-BL71-0015 0.015 0.13 0.71 41 W 25 x 10 EUR 5,20 excl. VAT: € 4.37 / $ 4.72
M-BL71-0022 0.022 0.15 0.71 36 W 25 x 10 EUR 5,40 excl. VAT: € 4.54 / $ 4.90
M-BL71-0033 0.033 0.17 0.71 34 W 25 x 10 EUR 5,60 excl. VAT: € 4.71 / $ 5.08
M-BL71-0047 0.047 0.18 0.71 33 W 25 x 10 EUR 5,80 excl. VAT: € 4.87 / $ 5.26
M-BL71-005 0.050 0.19 0.71 33 W 25 x 10 EUR 5,80 excl. VAT: € 4.87 / $ 5.26
M-BL71-0056 0.056 0.20 0.71 33 W 25 x 10 EUR 5,80 excl. VAT: € 4.87 / $ 5.26
M-BL71-0068 0.068 0.21 0.71 33 W 25 x 10 EUR 6,00 excl. VAT: € 5.04 / $ 5.45
M-BL71-010 0.10 0.23 0.71 31 W 25 x 10 EUR 6,30 excl. VAT: € 5.29 / $ 5.72
M-BL71-012 0.12 0.28 0.71 22 W 30 x 20 EUR 6,60 excl. VAT: € 5.55 / $ 5.99
M-BL71-015 0.15 0.31 0.71 23 W 30 x 20 EUR 6,66 excl. VAT: € 5.60 / $ 6.04
M-BL71-018 0.18 0.34 0.71 23 W 30 x 20 EUR 6,94 excl. VAT: € 5.83 / $ 6.30
M-BL71-022 0.22 0.38 0.71 23 W 30 x 20 EUR 7,50 excl. VAT: € 6.30 / $ 6.81
M-BL71-027 0.27 0.42 0.71 22 W 30 x 20 EUR 7,49 excl. VAT: € 6.29 / $ 6.80
M-BL71-033 0.33 0.47 0.71 22 W 30 x 20 EUR 8,30 excl. VAT: € 6.97 / $ 7.53
M-BL71-039 0.39 0.52 0.71 21 W 30 x 20 EUR 8,80 excl. VAT: € 7.39 / $ 7.99
M-BL71-047 0.47 0.58 0.71 21 W 30 x 20 EUR 9,30 excl. VAT: € 7.82 / $ 8.44
M-BL71-056 0.56 0.64 0.71 20 W 30 x 20 EUR 9,70 excl. VAT: € 8.15 / $ 8.80
M-BL71-068 0.68 0.71 0.71 20 W 30 x 20 EUR 10,20 excl. VAT: € 8.57 / $ 9.26
M-BL71-082 0.82 0.81 0.71 18 W 30 x 20 EUR 10,60 excl. VAT: € 8.91 / $ 9.62
M-BL71-100 1.0 0.89 0.71 17 W 30 x 20 EUR 11,60 excl. VAT: € 9.75 / $ 10.53
M-BL71-120 1.2 0.99 0.71 18 W 40 x 20 EUR 12,60 excl. VAT: € 10.59 / $ 11.44
M-BL71-150 1.5 1.1 0.71 17 W 40 x 20 EUR 13,60 excl. VAT: € 11.43 / $ 12.34
M-BL71-180 1.8 1.2 0.71 17 W 40 x 20 EUR 14,60 excl. VAT: € 12.27 / $ 13.25
M-BL71-220 2.2 1.4 0.71 16 W 40 x 20 EUR 15,50 excl. VAT: € 13.03 / $ 14.07
M-BL71-270 2.7 1.5 0.71 15 W 40 x 20 EUR 16,50 excl. VAT: € 13.87 / $ 14.97
M-BL71-300 3.0 1.6 0.71 15 W 40 x 20 EUR 13,60 excl. VAT: € 11.43 / $ 12.34
M-BL71-330 3.3 1.8 0.71 14 W 40 x 20 EUR 18,50 excl. VAT: € 15.55 / $ 16.79
M-BL71-390 3.9 1.9 0.71 17 W 58 x 18 EUR 20,40 excl. VAT: € 17.14 / $ 18.51
M-BL71-470 4.7 2.2 0.71 16 W 58 x 18 EUR 22,40 excl. VAT: € 18.82 / $ 20.33
M-BL71-560 5.6 2.4 0.71 16 W 58 x 18 EUR 24,40 excl. VAT: € 20.50 / $ 22.14
M-BL71-680 6.8 2.6 0.71 15 W 58 x 18 EUR 26,30 excl. VAT: € 22.10 / $ 23.87
M-BL71-1000 10.0 3.4 0.71 14 W 58 x 28 EUR 34,20 excl. VAT: € 28.74 / $ 31.04
M-BL71-1200 12.0 3.7 0.71 15 W 70 x 29 EUR 39,10 excl. VAT: € 32.86 / $ 35.49
M-BL71-1500 15.0 4.3 0.71 14 W 70 x 29 EUR 44,00 excl. VAT: € 36.97 / $ 39.93
M-BL71-1800 18.0 4.8 0.71 13 W 70 x 29 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-BL71-2200 22.0 5.3 0.71 13 W 70 x 29 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-BL71-2700 27.0 6.0 0.71 12 W 70 x 29 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Baked varnish BL71 100 125 140 180 vakuum impregnated VL236 VL300 VL390

Mundorf air coil BL100

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-BL100-0022 0.022 0.10 1.00 90 W 30 x 20 EUR 9,30 excl. VAT: € 7.82 / $ 8.44
M-BL100-0033 0.033 0.11 1.00 86 W 30 x 20 EUR 9,30 excl. VAT: € 7.82 / $ 8.44
M-BL100-010 0.10 0.14 1.00 82 W 30 x 20 EUR 9,30 excl. VAT: € 7.82 / $ 8.44
M-BL100-012 0.12 0.15 1.00 82 W 30 x 20 EUR 9,70 excl. VAT: € 8.15 / $ 8.80
M-BL100-015 0.15 0.17 1.00 77 W 30 x 20 EUR 10,20 excl. VAT: € 8.57 / $ 9.26
M-BL100-018 0.18 0.19 1.00 73 W 30 x 20 EUR 10,60 excl. VAT: € 8.91 / $ 9.62
M-BL100-022 0.22 0.21 1.00 70 W 30 x 20 EUR 11,20 excl. VAT: € 9.41 / $ 10.16
M-BL100-027 0.27 0.23 1.00 68 W 30 x 20 EUR 11,60 excl. VAT: € 9.75 / $ 10.53
M-BL100-033 0.33 0.26 1.00 77 W 40 x 20 EUR 12,60 excl. VAT: € 10.59 / $ 11.44
M-BL100-039 0.39 0.29 1.00 71 W 40 x 20 EUR 13,60 excl. VAT: € 11.43 / $ 12.34
M-BL100-047 0.47 0.32 1.00 67 W 40 x 20 EUR 14,60 excl. VAT: € 12.27 / $ 13.25
M-BL100-056 0.56 0.36 1.00 62 W 40 x 20 EUR 15,50 excl. VAT: € 13.03 / $ 14.07
M-BL100-068 0.68 0.39 1.00 60 W 40 x 20 EUR 16,50 excl. VAT: € 13.87 / $ 14.97
M-BL100-082 0.82 0.44 1.00 56 W 40 x 20 EUR 17,50 excl. VAT: € 14.71 / $ 15.88
M-BL100-100 1.0 0.49 1.00 61 W 58 x 18 EUR 19,50 excl. VAT: € 16.39 / $ 17.70
M-BL100-120 1.2 0.54 1.00 63 W 58 x 18 EUR 21,40 excl. VAT: € 17.98 / $ 19.42
M-BL100-150 1.5 0.62 1.00 60 W 58 x 18 EUR 23,40 excl. VAT: € 19.66 / $ 21.24
M-BL100-180 1.8 0.70 1.00 58 W 58 x 18 EUR 25,30 excl. VAT: € 21.26 / $ 22.96
M-BL100-200 2.0 0.74 1.00 53 W 58 x 22 EUR 27,30 excl. VAT: € 22.94 / $ 24.78
M-BL100-220 2.2 0.83 1.00 53 W 58 x 22 EUR 27,30 excl. VAT: € 22.94 / $ 24.78
M-BL100-250 2.5 0.85 1.00 47 W 58 x 22 EUR 29,30 excl. VAT: € 24.62 / $ 26.59
M-BL100-270 2.7 0.90 1.00 46 W 58 x 28 EUR 29,30 excl. VAT: € 24.62 / $ 26.59
M-BL100-300 3.0 0.98 1.00 45 W 58 x 28 EUR 32,20 excl. VAT: € 27.06 / $ 29.22
M-BL100-330 3.3 1.1 1.00 44 W 58 x 28 EUR 32,20 excl. VAT: € 27.06 / $ 29.22
M-BL100-390 3.9 1.1 1.00 43 W 58 x 28 EUR 35,10 excl. VAT: € 29.50 / $ 31.86
M-BL100-470 4.7 1.3 1.00 46 W 70 x 29 EUR 39,10 excl. VAT: € 32.86 / $ 35.49
M-BL100-560 5.6 1.4 1.00 44 W 70 x 29 EUR 44,00 excl. VAT: € 36.97 / $ 39.93
M-BL100-680 6.8 1.6 1.00 42 W 70 x 29 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-BL100-820 8.2 1.7 1.00 39 W 70 x 29 EUR 53,80 excl. VAT: € 45.21 / $ 48.83
M-BL100-1000 10.0 1.9 1.00 36 W 70 x 29 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-BL100-1200 12.0 2.3 1.00 33 W 77 x 28 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-BL100-1500 15.0 2.6 1.00 30 W 77 x 28 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Baked varnish BL71 100 125 140 180 vakuum impregnated VL236 VL300 VL390

Mundorf air coil BL125

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-BL125-010 0.10 0.09 1.25 155 W 40 x 20 EUR 10,60 excl. VAT: € 8.91 / $ 9.62
M-BL125-012 0.12 0.10 1.25 147 W 40 x 20 EUR 11,60 excl. VAT: € 9.75 / $ 10.53
M-BL125-015 0.15 0.11 1.25 182 W 40 x 20 EUR 12,60 excl. VAT: € 10.59 / $ 11.44
M-BL125-018 0.18 0.13 1.25 163 W 58 x 18 EUR 13,60 excl. VAT: € 11.43 / $ 12.34
M-BL125-022 0.22 0.14 1.25 160 W 58 x 18 EUR 14,60 excl. VAT: € 12.27 / $ 13.25
M-BL125-027 0.27 0.15 1.25 213 W 58 x 18 EUR 15,50 excl. VAT: € 13.03 / $ 14.07
M-BL125-033 0.33 0.18 1.25 189 W 58 x 18 EUR 16,50 excl. VAT: € 13.87 / $ 14.97
M-BL125-039 0.39 0.20 1.25 191 W 58 x 18 EUR 17,50 excl. VAT: € 14.71 / $ 15.88
M-BL125-047 0.47 0.22 1.25 184 W 58 x 18 EUR 19,50 excl. VAT: € 16.39 / $ 17.70
M-BL125-056 0.56 0.24 1.25 147 W 58 x 22 EUR 21,40 excl. VAT: € 17.98 / $ 19.42
M-BL125-068 0.68 0.28 1.25 134 W 58 x 28 EUR 23,40 excl. VAT: € 19.66 / $ 21.24
M-BL125-082 0.82 0.29 1.25 136 W 58 x 28 EUR 25,30 excl. VAT: € 21.26 / $ 22.96
M-BL125-100 1.0 0.34 1.25 133 W 58 x 28 EUR 28,30 excl. VAT: € 23.78 / $ 25.68
M-BL125-120 1.2 0.44 1.25 94 W 70 x 29 EUR 31,20 excl. VAT: € 26.22 / $ 28.32
M-BL125-150 1.5 0.47 1.25 93 W 70 x 29 EUR 34,20 excl. VAT: € 28.74 / $ 31.04
M-BL125-180 1.8 0.51 1.25 91 W 70 x 29 EUR 37,10 excl. VAT: € 31.18 / $ 33.67
M-BL125-220 2.2 0.57 1.25 86 W 70 x 29 EUR 41,00 excl. VAT: € 34.45 / $ 37.21
M-BL125-270 2.7 0.61 1.25 86 W 77 x 28 EUR 44,90 excl. VAT: € 37.73 / $ 40.75
M-BL125-330 3.3 0.69 1.25 86 W 77 x 28 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-BL125-390 3.9 0.75 1.25 84 W 77 x 28 EUR 53,80 excl. VAT: € 45.21 / $ 48.83
M-BL125-470 4.7 0.84 1.25 81 W 70 x 59 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-BL125-560 5.6 0.95 1.25 76 W 70 x 59 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-BL125-680 6.8 1.2 1.25 52 W 70 x 59 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
M-BL125-820 8.2 1.3 1.25 50 W 70 x 59 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
M-BL125-1000 10.0 1.5 1.25 48 W 88 x 75 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Baked varnish BL71 100 125 140 180 vakuum impregnated VL236 VL300 VL390

Mundorf air coil BL140

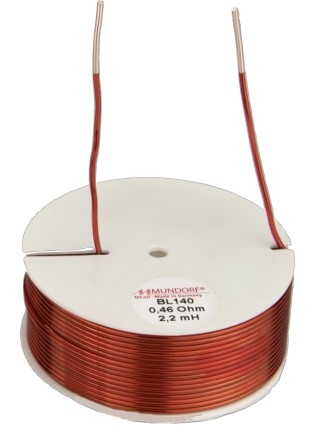

Baked varnish and vakuum impregnatedair coils, Mundorf air coil BL140
L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-BL140-0022 0.022 0.05 1.4 349 W 40 x 20 EUR 12,40 excl. VAT: € 10.42 / $ 11.25
M-BL140-0047 0.047 0.06 1.4 295 W 40 x 20 EUR 12,40 excl. VAT: € 10.42 / $ 11.25
M-BL140-010 0.10 0.07 1.4 267 W 40 x 20 EUR 12,60 excl. VAT: € 10.59 / $ 11.44
M-BL140-012 0.12 0.08 1.4 265 W 40 x 20 EUR 13,60 excl. VAT: € 11.43 / $ 12.34
M-BL140-015 0.15 0.10 1.4 237 W 40 x 20 EUR 14,60 excl. VAT: € 12.27 / $ 13.25
M-BL140-018 0.18 0.11 1.4 251 W 58 x 18 EUR 15,50 excl. VAT: € 13.03 / $ 14.07
M-BL140-022 0.22 0.12 1.4 248 W 58 x 18 EUR 17,50 excl. VAT: € 14.71 / $ 15.88
M-BL140-027 0.27 0.13 1.4 245 W 58 x 18 EUR 19,50 excl. VAT: € 16.39 / $ 17.70
M-BL140-033 0.33 0.15 1.4 227 W 58 x 18 EUR 21,40 excl. VAT: € 17.98 / $ 19.42
M-BL140-039 0.39 0.16 1.4 239 W 58 x 18 EUR 23,40 excl. VAT: € 19.66 / $ 21.24
M-BL140-047 0.47 0.19 1.4 213 W 58 x 18 EUR 25,30 excl. VAT: € 21.26 / $ 22.96
M-BL140-056 0.56 0.20 1.4 192 W 58 x 22 EUR 27,30 excl. VAT: € 22.94 / $ 24.78
M-BL140-068 0.68 0.23 1.4 197 W 58 x 28 EUR 29,30 excl. VAT: € 24.62 / $ 26.59
M-BL140-082 0.82 0.26 1.4 184 W 58 x 28 EUR 32,20 excl. VAT: € 27.06 / $ 29.22
M-BL140-100 1.0 0.28 1.4 181 W 58 x 28 EUR 35,10 excl. VAT: € 29.50 / $ 31.86
M-BL140-120 1.2 0.31 1.4 180 W 70 x 29 EUR 39,10 excl. VAT: € 32.86 / $ 35.49
M-BL140-150 1.5 0.36 1.4 165 W 70 x 29 EUR 44,00 excl. VAT: € 36.97 / $ 39.93
M-BL140-180 1.8 0.40 1.4 157 W 70 x 29 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-BL140-200 2.0 0.43 1.4 154 W 70 x 29 EUR 53,80 excl. VAT: € 45.21 / $ 48.83
M-BL140-220 2.2 0.46 1.4 152 W 70 x 29 EUR 53,80 excl. VAT: € 45.21 / $ 48.83
M-BL140-270 2.7 0.51 1.4 133 W 77 x 28 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-BL140-300 3.0 0.55 1.4 131 W 77 x 28 EUR 63,60 excl. VAT: € 53.45 / $ 57.72
M-BL140-330 3.3 0.58 1.4 131 W 77 x 28 EUR 63,60 excl. VAT: € 53.45 / $ 57.72
M-BL140-390 3.9 0.65 1.4 123 W 77 x 28 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-BL140-470 4.7 0.77 1.4 107 W 70 x 59 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
M-BL140-560 5.6 0.89 1.4 98 W 70 x 59 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
M-BL140-680 6.8 0.96 1.4 96 W 70 x 59 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
M-BL140-820 8.2 1.1 1.4 89 W 70 x 59 EUR 107,70 excl. VAT: € 90.50 / $ 97.74
M-BL140-1200 12.0 1.4 1.4 93 W 88x75x61 EUR 127,00 excl. VAT: € 106.72 / $ 115.26
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Baked varnish BL71 100 125 140 180 vakuum impregnated VL236 VL300 VL390

Mundorf air coil BL180

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-BL180-010 0.10 0.05 1.8 680 W 58 x 18 EUR 19,50 excl. VAT: € 16.39 / $ 17.70
M-BL180-012 0.12 0.05 1.8 723 W 58 x 18 EUR 21,40 excl. VAT: € 17.98 / $ 19.42
M-BL180-015 0.15 0.06 1.8 638 W 58 x 18 EUR 23,40 excl. VAT: € 19.66 / $ 21.24
M-BL180-018 0.18 0.07 1.8 577 W 58 x 18 EUR 25,30 excl. VAT: € 21.26 / $ 22.96
M-BL180-022 0.22 0.08 1.8 519 W 58 x 22 EUR 27,30 excl. VAT: € 22.94 / $ 24.78
M-BL180-027 0.27 0.09 1.8 487 W 58 x 28 EUR 29,30 excl. VAT: € 24.62 / $ 26.59
M-BL180-033 0.33 0.10 1.8 464 W 58 x 22 EUR 32,20 excl. VAT: € 27.06 / $ 29.22
M-BL180-039 0.39 0.11 1.8 445 W 58 x 28 EUR 35,10 excl. VAT: € 29.50 / $ 31.86
M-BL180-047 0.47 0.12 1.8 466 W 70 x 29 EUR 39,10 excl. VAT: € 32.86 / $ 35.49
M-BL180-056 0.56 0.14 1.8 424 W 70 x 29 EUR 44,00 excl. VAT: € 36.97 / $ 39.93
M-BL180-068 0.68 0.15 1.8 419 W 70 x 29 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-BL180-082 0.82 0.17 1.8 391 W 70 x 29 EUR 53,80 excl. VAT: € 45.21 / $ 48.83
M-BL180-100 1.0 0.20 1.8 359 W 77 x 28 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-BL180-120 1.2 0.22 1.8 345 W 77 x 28 EUR 63,60 excl. VAT: € 53.45 / $ 57.72
M-BL180-150 1.5 0.28 1.8 275 W 70 x 59 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-BL180-180 1.8 0.31 1.8 265 W 70 x 59 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
M-BL180-220 2.2 0.34 1.8 272 W 70 x 59 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
M-BL180-270 2.7 0.39 1.8 250 W 70 x 59 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
M-BL180-330 3.3 0.42 1.8 281 W 89x76x61 EUR 112,60 excl. VAT: € 94.62 / $ 102.19
M-BL180-390 3.9 0.47 1.8 265 W 89x76x61 EUR 127,30 excl. VAT: € 106.97 / $ 115.53
M-BL180-470 4.7 0.53 1.8 262 W 105x93x79 EUR 142,00 excl. VAT: € 119.33 / $ 128.87
M-BL180-560 5.6 0.59 1.8 252 W 105x93x79 EUR 156,70 excl. VAT: € 131.68 / $ 142.22
M-BL180-680 6.8 0.65 1.8 244 W 105x93x79 EUR 176,30 excl. VAT: € 148.15 / $ 160.00
M-BL180-820 8.2 0.72 1.8 234 W 105x93x79 EUR 195,90 excl. VAT: € 164.62 / $ 177.79
M-BL180-1000 10.0 0.80 1.8 223 W 105x93x79 EUR 215,50 excl. VAT: € 181.09 / $ 195.58
M-BL180-1200 12.0 0.83 1.8 236 W 105x93x79 EUR 235,10 excl. VAT: € 197.56 / $ 213.37
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Beside baked varnish air coils we offer vacuum impregnated coils

Baked varnish BL71 100 125 140 180 vakuum impregnated VL236 VL300 VL390

Mundorf air coil, vacuum-impregnated VL236

Baked varnish and vakuum impregnatedair coils, Mundorf air coil, vacuum-impregnated VL236
Enlarge
L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-VL236-010 0.10 0.04 2.4 1096 W 58 x 28 EUR 33,20 excl. VAT: € 27.90 / $ 30.13
M-VL236-012 0.12 0.04 2.4 1160 W 58 x 28 EUR 36,10 excl. VAT: € 30.34 / $ 32.76
M-VL236-015 0.15 0.05 2.4 980 W 58 x 28 EUR 39,10 excl. VAT: € 32.86 / $ 35.49
M-VL236-018 0.18 0.05 2.4 1118 W 70 x 29 EUR 42,00 excl. VAT: € 35.29 / $ 38.12
M-VL236-022 0.22 0.06 2.4 990 W 70 x 29 EUR 45,90 excl. VAT: € 38.57 / $ 41.66
M-VL236-027 0.27 0.06 2.4 1048 W 70 x 29 EUR 51,80 excl. VAT: € 43.53 / $ 47.01
M-VL236-033 0.33 0.07 2.4 970 W 77 x 28 EUR 57,70 excl. VAT: € 48.49 / $ 52.37
M-VL236-039 0.39 0.08 2.4 899 W 77 x 28 EUR 63,60 excl. VAT: € 53.45 / $ 57.72
M-VL236-047 0.47 0.09 2.4 798 W 70 x 59 EUR 70,40 excl. VAT: € 59.16 / $ 63.89
M-VL236-056 0.56 0.10 2.4 770 W 70 x 59 EUR 77,30 excl. VAT: € 64.96 / $ 70.15
M-VL236-068 0.68 0.12 2.4 684 W 70 x 59 EUR 85,10 excl. VAT: € 71.51 / $ 77.23
M-VL236-082 0.82 0.14 2.4 623 W 70 x 59 EUR 93,00 excl. VAT: € 78.15 / $ 84.40
M-VL236-100 1.0 0.14 2.4 660 W 70x59x61 EUR 102,80 excl. VAT: € 86.39 / $ 93.30
M-VL236-120 1.2 0.15 2.4 744 W 89x61x76 EUR 112,60 excl. VAT: € 94.62 / $ 102.19
M-VL236-150 1.5 0.17 2.4 695 W 89x61x76 EUR 127,30 excl. VAT: € 106.97 / $ 115.53
M-VL236-180 1.8 0.20 2.4 719 W 105x92x81 EUR 142,00 excl. VAT: € 119.33 / $ 128.87
M-VL236-200 2.0 0.21 2.4 714 W 105x92x81 EUR 74,40 excl. VAT: € 62.52 / $ 67.52
M-VL236-220 2.2 0.22 2.4 708 W 105x92x81 EUR 156,70 excl. VAT: € 131.68 / $ 142.22
M-VL236-270 2.7 0.25 2.4 639 W 105x92x81 EUR 176,30 excl. VAT: € 148.15 / $ 160.00
M-VL236-300 3.0 0.26 2.4 630 W 105x92x81 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
M-VL236-330 3.3 0.28 2.4 607 W 105x92x81 EUR 195,90 excl. VAT: € 164.62 / $ 177.79
M-VL236-390 3.9 0.30 2.4 599 W 105x92x81 EUR 215,50 excl. VAT: € 181.09 / $ 195.58
M-VL236-470 4.7 0.34 2.4 582 W 123x108x89 EUR 235,10 excl. VAT: € 197.56 / $ 213.37
M-VL236-560 5.6 0.38 2.4 556 W 123x108x89 EUR 264,50 excl. VAT: € 222.27 / $ 240.05
M-VL236-680 6.8 0.42 2.4 534 W 123x108x89 EUR 293,90 excl. VAT: € 246.97 / $ 266.73
M-VL236-820 8.2 0.46 2.4 516 W 123x108x89 EUR 333,10 excl. VAT: € 279.92 / $ 302.31
M-VL236-1000 10.0 0.54 2.4 507 W 151x120x106 EUR 372,30 excl. VAT: € 312.86 / $ 337.89
M-VL236-1200 12.0 0.59 2.4 495 W 151x120x106 EUR 411,50 excl. VAT: € 345.80 / $ 373.46
M-VL236-1500 15.0 0.67 2.4 464 W 151x120x106 EUR 450,70 excl. VAT: € 378.74 / $ 409.04
M-VL236-1800 18.0 0.74 2.4 444 W 151x120x106 EUR 489,90 excl. VAT: € 411.68 / $ 444.62
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Baked varnish BL71 100 125 140 180 vakuum impregnated VL236 VL300 VL390

Mundorf air coil VL300

Baked varnish and vakuum impregnatedair coils, Mundorf air coil VL300
Enlarge
L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-VL300-010 0.10 0.02 3.0 2446 W 70 x 29 EUR 48,90 excl. VAT: € 41.09 / $ 44.38
M-VL300-012 0.12 0.03 3.0 1944 W 77 x 28 EUR 53,80 excl. VAT: € 45.21 / $ 48.83
M-VL300-015 0.15 0.03 3.0 2050 W 77 x 28 EUR 58,70 excl. VAT: € 49.33 / $ 53.27
M-VL300-018 0.18 0.03 3.0 2157 W 77 x 28 EUR 63,60 excl. VAT: € 53.45 / $ 57.72
M-VL300-022 0.22 0.04 3.0 1925 W 70 x 59 EUR 68,50 excl. VAT: € 57.56 / $ 62.17
M-VL300-027 0.27 0.04 3.0 1976 W 70 x 59 EUR 78,30 excl. VAT: € 65.80 / $ 71.06
M-VL300-033 0.33 0.05 3.0 1642 W 70 x 59 EUR 88,10 excl. VAT: € 74.03 / $ 79.96
M-VL300-039 0.39 0.05 3.0 1745 W 70 x 59 EUR 97,90 excl. VAT: € 82.27 / $ 88.85
M-VL300-047 0.47 0.06 3.0 1540 W 70 x 59 EUR 107,70 excl. VAT: € 90.50 / $ 97.74
M-VL300-056 0.56 0.06 3.0 2213 W 105x93x79 EUR 117,50 excl. VAT: € 98.74 / $ 106.64
M-VL300-068 0.68 0.07 3.0 1982 W 105x93x79 EUR 132,20 excl. VAT: € 111.09 / $ 119.98
M-VL300-082 0.82 0.08 3.0 1858 W 105x93x79 EUR 146,90 excl. VAT: € 123.45 / $ 133.32
M-VL300-100 1.0 0.09 3.0 1762 W 105x93x79 EUR 166,50 excl. VAT: € 139.92 / $ 151.11
M-VL300-120 1.2 0.10 3.0 1684 W 105x93x79 EUR 186,10 excl. VAT: € 156.39 / $ 168.90
M-VL300-150 1.5 0.12 3.0 1486 W 105x93x79 EUR 215,50 excl. VAT: € 181.09 / $ 195.58
M-VL300-180 1.8 0.13 3.0 1421 W 123x108x89 EUR 244,90 excl. VAT: € 205.80 / $ 222.26
M-VL300-200 2.0 0.14 3.0 1376 W 123x108x89 on request
M-VL300-220 2.2 0.15 3.0 1320 W 123x108x89 EUR 274,30 excl. VAT: € 230.50 / $ 248.94
M-VL300-270 2.7 0.17 3.0 1242 W 123x108x89 EUR 313,50 excl. VAT: € 263.45 / $ 284.52
M-VL300-300 3.0 0.18 3.0 1247 W 123x108x89 on request
M-VL300-330 3.3 0.19 3.0 1250 W 123x108x89 EUR 352,70 excl. VAT: € 296.39 / $ 320.10
M-VL300-390 3.9 0.21 3.0 1218 W 151x120x106 EUR 391,90 excl. VAT: € 329.33 / $ 355.67
M-VL300-470 4.7 0.24 3.0 1142 W 151x120x106 EUR 431,10 excl. VAT: € 362.27 / $ 391.25
M-VL300-560 5.6 0.25 3.0 1169 W 151x120x106 EUR 470,30 excl. VAT: € 395.21 / $ 426.83
M-VL300-680 6.8 0.29 3.0 1071 W 151x120x106 EUR 519,30 excl. VAT: € 436.39 / $ 471.30
M-VL300-820 8.2 0.32 3.0 1028 W 151x120x106 EUR 587,90 excl. VAT: € 494.03 / $ 533.56
M-VL300-1000 10.0 0.38 3.0 1037 W 162x136x138 EUR 685,90 excl. VAT: € 576.39 / $ 622.50
M-VL300-1200 12.0 0.46 3.0 910 W 162x136x138 EUR 783,90 excl. VAT: € 658.74 / $ 711.44
M-VL300-1500 15.0 0.55 3.0 806 W 162x136x138 EUR 881,90 excl. VAT: € 741.09 / $ 800.38
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Baked varnish BL71 100 125 140 180 vakuum impregnated VL236 VL300 VL390

Mundorf air coil VL390

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-VL390-010 0.10 0.01 3.9 9189 W 89x76x61 EUR 107,70 excl. VAT: € 90.50 / $ 97.74
M-VL390-012 0.12 0.01 3.9 9582 W 89x76x61 EUR 117,50 excl. VAT: € 98.74 / $ 106.64
M-VL390-015 0.15 0.02 3.9 7630 W 105x93x79 EUR 127,30 excl. VAT: € 106.97 / $ 115.53
M-VL390-018 0.18 0.02 3.9 8026 W 105x93x79 EUR 137,10 excl. VAT: € 115.21 / $ 124.43
M-VL390-022 0.22 0.03 3.9 5615 W 105x93x79 EUR 156,70 excl. VAT: € 131.68 / $ 142.22
M-VL390-027 0.27 0.03 3.9 5813 W 105x93x79 EUR 176,30 excl. VAT: € 148.15 / $ 160.00
M-VL390-033 0.33 0.03 3.9 6077 W 105x93x79 EUR 195,90 excl. VAT: € 164.62 / $ 177.79
M-VL390-039 0.39 0.04 3.9 4707 W 105x93x79 EUR 225,30 excl. VAT: € 189.33 / $ 204.47
M-VL390-047 0.47 0.04 3.9 6599 W 123x108x89 EUR 254,70 excl. VAT: € 214.03 / $ 231.16
M-VL390-056 0.56 0.04 3.9 4620 W 123x108x89 EUR 284,10 excl. VAT: € 238.74 / $ 257.84
M-VL390-068 0.68 0.05 3.9 4224 W 123x108x89 EUR 313,50 excl. VAT: € 263.45 / $ 284.52
M-VL390-082 0.82 0.06 3.9 3740 W 123x108x89 EUR 352,70 excl. VAT: € 296.39 / $ 320.10
M-VL390-100 1.0 0.07 3.9 4698 W 151x120x106 EUR 411,50 excl. VAT: € 345.80 / $ 373.46
M-VL390-120 1.2 0.07 3.9 4959 W 151x120x106 EUR 470,30 excl. VAT: € 395.21 / $ 426.83
M-VL390-150 1.5 0.08 3.9 4522 W 151x120x106 EUR 529,10 excl. VAT: € 444.62 / $ 480.19
M-VL390-180 1.8 0.09 3.9 3248 W 151x120x106 EUR 587,90 excl. VAT: € 494.03 / $ 533.56
M-VL390-200 2.0 0.11 3.9 2790 W 151x120x106 EUR 656,50 excl. VAT: € 551.68 / $ 595.82
M-VL390-220 2.2 0.12 3.9 2680 W 151x120x106 EUR 656,50 excl. VAT: € 551.68 / $ 595.82
M-VL390-270 2.7 0.15 3.9 3021 W 162x136x138 EUR 725,10 excl. VAT: € 609.33 / $ 658.07
M-VL390-300 3.0 0.15 3.9 3120 W 162x136x138 EUR 813,30 excl. VAT: € 683.45 / $ 738.12
M-VL390-330 3.3 0.17 3.9 2840 W 162x136x138 EUR 813,30 excl. VAT: € 683.45 / $ 738.12
M-VL390-390 3.9 0.19 3.9 1685 W 162x136x138 EUR 901,50 excl. VAT: € 757.56 / $ 818.17
M-VL390-470 4.7 0.20 3.9 1847 W 162x136x138 EUR 1009,30 excl. VAT: € 848.15 / $ 916.00
M-VL390-560 5.6 0.22 3.9 2038 W 162x136x138 EUR 1126,90 excl. VAT: € 946.97 / $ 1022.73
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.
