Lia Mk2   Shelf speaker as in K+T 6/2015

Technical data
  • impedance: 8 Ohm
  • sensivity (2,83V/1m): 83 dB
  • size (HxWxD): 380 x 165 x 270 mm
  • frequency range (-8dB): 42 - 40000 Hz
  • crossover frequency(s): 3500 Hz
  • speaker type: bass reflex

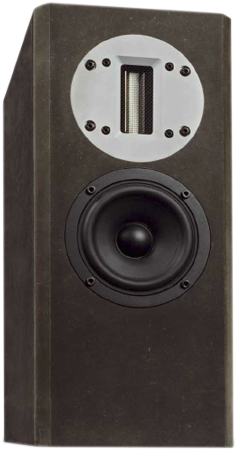

The Lia Mk2 is a high-end 2 way bassreflex loudspeaker with ribbon tweeter and Wavecor woofer. Lia MK2 has been developed by Dennis Frank and Daniel Gattig.

The crossover consists of a 3rd order high-pass filter (18 dB per octave slope) for the tweeter and a 2nd order low-pass filter for the woofer. A parallel RCL drain circuit is smoothing the frequency response of the woofer at about 1000 Hz

The frequency response of this speaker is very linear and has a high bandwidth. The decay spectrum is nearly perfect. At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are lower than 0.5% above 500 Hz and rises not over 1.5% at 95 dB at 1 m .

Our kit consists of

  • Audaphon ribbon Neo CD 3.0
  • Wavecor Mid/Woofer WF120BD04
  • 2x Bass reflex tube HP50, 50x145 mm, black
  • Damping Sonofil 100 x 35 cm for 20 litres
  • Female banana jacks, red and black
  • 1,5m Speaker cable 2x1.5 mm2, transparent
  • 0,5x Allen wood screws IS 4x16mm, black (MZF-8614), 8 pcs
  • 0,5x Pan screws 4x20 black, cross recess, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.
  • Audaphon MKP CAP Superior 0.33 μF / 400 Vdc
  • Audaphon MKP CAP Superior 3.9 μF / 400 Vdc
  • Audaphon MKP CAP Superior 8.2 μF / 400 Vdc
  • Audaphon MKT CAP 5.6 μF / 160 Vdc
  • Audaphon MKT CAP 8.2 μF / 160 Vdc
  • 1.3 mm air core coil, 1.2 mH/0.35 Ohm
  • 0.7 mm air core coil, 0.22 mH/0.39 Ohm
  • 0.7 mm air core coil, 0.27 mH/0.44 Ohm
  • 0.7 mm air core coil, 5.6 mH/2.42 Ohm
  • Metal-oxide resistor, 10W 3.3 Ohm (orange-orange-gold)
  • Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 10W 6.8 Ohm (blue-grey-gold)
  • Metal-oxide resistor, 10W 18 Ohm (brown-grey-black)

Kit without cabinet, price per speaker   - not available

Kit with high-end crossover

The high-end kit comes with two Rike S-Cap capacitors of high quality. The inductances are Mundorf copper foil coils or baked varnish air core coils for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered.

Kit with high-end-crossover without cabinet, price per speaker   - not available

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).


Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 12,70 excl. VAT: € 10.67 / $ 11.53

universal PCB

If you prefer to mount the crossover components on a 240 x 165 mm universal PCB instead on wood:
Universal PCB RA240, order no.. str-RA240, price per unit:   EUR 8,60 excl. VAT: € 7.23 / $ 7.81
We recommend one plate for one kit (for a pair of speakers you need 2 plates)
