Legno, Shelf speaker   as in K+T 6/2010


Technical data
- impedance: 8 Ohm
- sensivity (2,83V/1m): 81 dB
- size (HxWxD): 360 x 220 x 318 mm
- frequency range (-8dB): 40 - 22000 Hz
- crossover frequency(s): 800 Hz
- speaker type: closed box

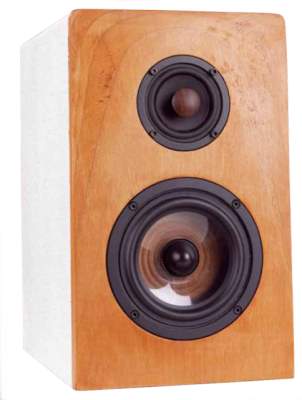

Legno is a compact loudspeaker with Monacor SPX-32M full range driver, complemented by an SPH-5TB woofer. Therefore, this loudspeaker belongs to the group of FAST designs (Full Range and Subwoofer Technology).

An excerpt from the Klang+Ton review

... " The Legno surprises with a tight and well structured bass. Not bone dry, but a deep bass is definitely present. And the sealed cabinet certainly has some advantage as the Legno shows: in comparison with most bass reflex designs the bass has more colour, is better outlined and more flexible. Using similar material for different drivers is also a good idea: the transition between the two drivers is practically inaudible. The Legno is no nitpicker intent on the details, it's rather a speaker that wants produce atmosphere and enjoyment: the Legno doesn't irritate and is always in control and relaxed. Imaging is definitely a strong point: The Legno's ability to detach the sound from the physical speaker and to reproduce virtual sound sources almost anywhere in the room is exceptional, even when the speakers a far apart from one another - this is impressive. This works even better when the full range drivers are operated with the rear open. Slightly angled towards the centre and the full range driver produces silky and relaxed high frequencies; here as well, there is no need to niggle."

Our kit consists of

  • Monacor SPH-5TB
  • Monacor SPX-32M full range driver
  • Loudspeaker cover SG-75
  • Sonofil, 2 pieces
  • Terminal T105 Au, with brass, gold plated
  • Speaker cable 2x1.5 mm2, transparent
  • Pan screws 3.5x17 black, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • electrolytic capacitor, etched, 220 uF/63 Vdc
  • electrolytic capacitor, etched, 270 uF/63 Vdc
  • MKP-Kondensator 3.9 uF / 400 Vdc
  • MKP-Kondensator 4.7 uF / 400 Vdc
  • MKP-Kondensator 8.2 uF / 400 Vdc
  • MKP-Kondensator 22 uF / 400 Vdc
  • 1.0 mm air core coil, 0.33 mH/0.26 Ohm
  • 1.4 mm air core coil, 2.7 mH/0.51 Ohm
  • 1.4 mm air core coil, 3.9 mH/0.65 Ohm
  • Ceramic resistor 3.9 Ohm/20 Watt
  • Ceramic resistor 5.6 Ohm/20 Watt
  • Ceramic resistor 8.2 Ohm/20 Watt

Kit without cabinet, price per speaker - not available

Kit with high-end crossover

In our high-end version only superior MKP capacitors are used in the signal path to tweeter and mids. In this part of the crossover only baked varnish air coils are used. Air coils have less distortion than coils with ferromagnetic core.

  • Jantzen Z-silver Cap MKP capacitor 8.2 uF / 800 VDC
  • MKP-Kondensator 3.9 uF / 400 Vdc
  • MKP-Kondensator 4.7 uF / 400 Vdc
  • MKP-Kondensator 22 uF / 400 Vdc
  • electrolytic capacitor, etched, 220 uF/63 Vdc
  • electrolytic capacitor, etched, 270 uF/63 Vdc
  • 1.0 mm air core coil, 0.33 mH/0.26 Ohm
  • 1.4 mm air core coil, 3.9 mH/0.65 Ohm
  • Mundorf copper foil coil CFC16-2.7mH/0.61Ohm
  • Ceramic resistor 3.9 Ohm/20 Watt
  • Ceramic resistor 5.6 Ohm/20 Watt
  • Ceramic resistor 8.2 Ohm/20 Watt

Kit with high-end crossover without cabinet, price per speaker - not available
