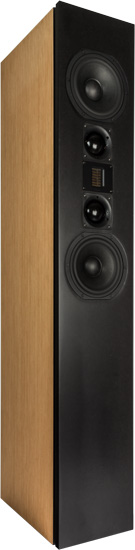

Kura   Floorstanding as in K+T 1/2015

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): 88 dB
  • size (HxWxD): 1300 x 220 x 350 mm
  • frequency range (-8dB): 30 - 35000 Hz
  • crossover frequency(s): 850, 4000 Hz
  • speaker type: bass reflex

Our kit consists of

  • Air motion transformer Audaphon AMT-2i
  • 2x Morel MDM 55, 55 mm soft dome midrange
  • 2x Wavecor Mid/Woofer WF182BD12 glass fiber, die cast
  • 2x Bass reflex tube HP100, 100x200 mm, black
  • 3x Damping Sonofil 100 x 35 cm for 20 litres
  • Binding Post PK31, gold plated (one pair, red and black)
  • 4m Speaker cable 2x1.5 mm2, transparent
  • Allen wood screws IS 4x16mm, black (MZF-8614) , 12 pcs
  • Pan screws 3.5x17 black, cross recess, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • ClarityCap PWA capacitor 82 μF / 160 Vdc
  • Audaphon MKP CAP Superior 0.47 μF / 400 Vdc
  • Audaphon MKP CAP Superior 1.5 μF / 400 Vdc
  • Audaphon MKP CAP Superior 2.2 μF / 400 Vdc
  • Audaphon MKP CAP Superior 3.3 μF / 400 Vdc
  • 2x Audaphon MKP CAP Superior 4.7 μF / 400 Vdc
  • Audaphon MKP CAP Superior 10 μF / 400 Vdc
  • 0.7 mm air core coil, 0.12 mH/0.29 Ohm
  • 0.7 mm air core coil, 0.47 mH/0.50 Ohm
  • 0.7 mm air core coil, 0.82 mH/0.89 Ohm
  • 1.0 mm air core coil, 0.82 mH/0.44 Ohm
  • 1.0 mm air core coil, 1.0 mH/0.49 Ohm
  • 1.0 mm air core coil, 2.2 mH/0.89 Ohm
  • 1.3 mm air core coil, 1.8 mH/0.45 Ohm
  • 1.4 mm air core coil, 0.33 mH/0.15 Ohm
  • 2x Metal-oxide resistor, 10W 2.2 Ohm (red-red-gold)
  • 2x Metal-oxide resistor, 10W 3.3 Ohm (orange-orange-gold)
  • Metal-oxide resistor, 10W 5.6 Ohm (green-blue-gold)
  • Metal-oxide resistor, 10W 6.8 Ohm (blue-grey-gold)
  • Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)


Kit without cabinet,
price per speaker   EUR 1182,00 excl. VAT: € 993.28 / $ 1072.74

Kit with high-end crossover


Kit without cabinet,
price per speaker   EUR 1485,00 excl. VAT: € 1247.90 / $ 1347.73

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).


Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 25,80 excl. VAT: € 21.68 / $ 23.42

universal PCBs

If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 220x155 mm, order no. I-8805002, price per unit:   EUR 11,80 excl. VAT: € 9.92 / $ 10.71
We recommend two boards per kit (four boards for a speaker pair)
