Hypex Add-on-Products

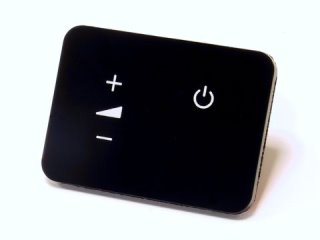

Touchpad AS2.100

Enlarge This self-adhesive airtight touchpanel can replace the standard button panel delivered with the AS2.100. Giving you the chance to get rid of the buttons and give your system a better look.

General features:

  • Airtight
  • Self-adhesive
  • Touch functionality
  • Better look

Manual

Price per unit   (Order No hy-AS2100-touch) - not available

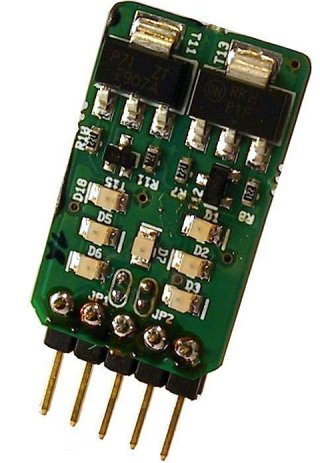

High performance Voltage Regulator HNR12

Enlarge The HxR series regulators are high performance voltage regulating components targeted at performance-critical audio applications. Key performance parameters exceed that of industry-standard integrated circuits by several orders of magnitude. Kelvin sense connections provide point-of-load (local) regulation without requiring physical proximity. The HNR12 is a 12V negative regulator.

Applications

  • Preamplifiers and buffers
  • RIAA input stages
  • Playback head amplifiers
  • Performance upgrade for existing products

General features:

  • Ultra-low noice
  • Wide bandwidth
  • Excellent ripple rejection
  • Low, load-independend output impedance
  • Kelvin sense connections
  • Size and pin compatible with TO-220 style regulators

Key electrical data

  • Max. input voltage: 60V
  • Output voltage: -12V
  • Max. output current: 600mA
  • Power dissipation: 2W
  • Output impedance: 50mOhm
  • Ripple rejection: 110dB
  • Output Noise Voltage: 290nV

Key mechanical data

  • Weight: 5g
  • Dimensions: 25mm x 15mm

Datasheet

Price per unit   (Order No hy-HNR12) EUR 19,04 excl. VAT: € 16.00 / $ 17.28



High performance Voltage Regulator HPR12

Enlarge The HxR series regulators are high performance voltage regulating components targeted at performance-critical audio applications. Key performance parameters exceed that of industry-standard integrated circuits by several orders of magnitude. Kelvin sense connections provide point-of-load (local) regulation without requiring physical proximity. The HNR12 is a 12V positive regulator.

Applications

  • Preamplifiers and buffers
  • RIAA input stages
  • Playback head amplifiers
  • Performance upgrade for existing products

General features:

  • Ultra-low noice
  • Wide bandwidth
  • Excellent ripple rejection
  • Low, load-independend output impedance
  • Kelvin sense connections
  • Size and pin compatible with TO-220 style regulators

Key electrical data

  • Max. input voltage: 60V
  • Output voltage: +12V
  • Max. output current: 600mA
  • Power dissipation: 2W
  • Output impedance: 50mOhm
  • Ripple rejection: 110dB
  • Output Noise Voltage: 290nV

Key mechanical data

  • Weight: 5g
  • Dimensions: 25mm x 15mm

Datasheet

Price per unit   (Order No hy-HPR12) EUR 19,04 excl. VAT: € 16.00 / $ 17.28
