FASTīn Loud   Floorstanding as in K+T 2/2018

Technical data
  • impedance: 8 Ohm
  • sensivity (2,83V/1m): 88 dB
  • size (HxWxD): 930 x 280 x 268 mm
  • frequency range (-8dB): 33 - 24000 Hz
  • crossover frequency(s): 800 Hz
  • speaker type: bass reflex

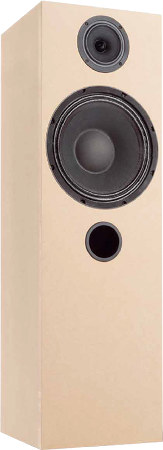

FASTīn Loud is a two way floorstanding speaker.

FASTīn Loud is a bass-reflex cabinet loudspeaker with drivers of Visaton .

The kit is delivered with the following drivers:
- a Visaton B 100 full range driver
- a Visaton PAW 25 woofer

The loudspeaker has been developed by Thomas Schmidt.

The crossover consists of:
- a 2nd order high-pass filter (12 dB per octave slope) for the full range driver.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is nearly linear.

The decay spectrum is perfect.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 1% above 200 Hz and doesn't exceed 1% at 95 dB at 1 m between 300 and 15000 Hz.

Our kit consists of

  • Visaton full range driver B 100 - 6 Ohm
  • Visaton woofer PAW 25, 8 Ohm
  • Bass reflex tube BR15.34, black
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 2x Damping Sonofil 100 x 35 cm for 20 litres
  • 1,5x Foam N25, 100x50x4 cm, black
  • Binding Post PK31, gold plated (one pair, red and black)
  • 2m Speaker cable 2x1.5 mm2, transparent
  • 0,5x Pan screws 3.5x17 black, cross recess, 8 pieces
  • Allen wood screws, black, 5x30 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 4.7 uF / 400 Vdc
  • Audaphon MKP CAP Superior 18 uF / 400 Vdc
  • Audaphon MKT CAP 15 uF / 160 Vdc
  • Audaphon MKT CAP 22 uF / 160 Vdc
  • Mundorf, electrolytic capacitor, etched, 390 uF/63 Vdc
  • 2x 0.7 mm air core coil, 0.10 mH/0.27 Ohm
  • 0.7 mm air core coil, 4.7 mH/2.19 Ohm
  • Mundorf bs100 core coil 5.6mH/0.51Ohm
  • Mundorf H core coil H71, 8.2 mH/0.8 0hm
  • ceramic resistor 2.2 Ohm/20 Watt
  • ceramic resistor 6.8 Ohm/20 Watt
  • ceramic resistor 10 Ohm/20 Watt
  • Metal-oxide resistor, 10W 15 Ohm (brown-green-black)

Kit without cabinet, price per speaker   EUR 310,00 excl. VAT: € 260.50 / $ 302.18

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the fullrange driver are of type polypropylen (MKP) Clarity-Cap CSA 630 V.

Kit with high-end-crossover without cabinet, price per speaker   EUR 369,00 excl. VAT: € 310.08 / $ 359.70

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).


Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 20,52 excl. VAT: € 17.24 / $ 20.00

universal PCB

If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 220x155 mm, order no. I-8805002, price per unit:   EUR 11,70 excl. VAT: € 9.83 / $ 11.41
We recommend one board per kit (2 boards per speaker pair)
