Elias X1-W182   Shelf speaker as in Newsletter

Technical data
  • impedance: 8 Ohm
  • sensivity (2,83V/1m): 88 dB
  • size (HxWxD): 800 x 500 x 100 mm
  • frequency range (-8dB): 32 - 28000 Hz
  • crossover frequency(s): 2150 Hz
  • speaker type: bass reflex
Enlarge

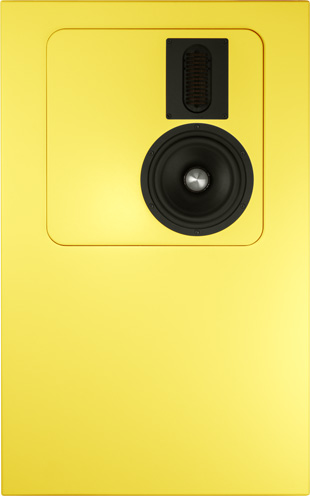

Elias X1-W182 is a 2 way high-end on-wall speaker. The kit provides an air motion tranformer (AMT) and a woofers of very high quality. The AMT is the very linear Air Motion Transformer Audaphon AMT-1i with very low distorsion. The woofer is a Wavecor WF182CU13.

Elias X1-W182 has been developed by Daniel Gattig and Dennis Frank.

The crossover consists of a 2nd order high-pass filter (12 dB per octave slope) for the tweeter. The woofer is connected to a 2nd order low-pass filter (12 dB per octave slope).

Between 40 Hz and 21000 Hz, the frequency response of this loudspeaker is very linear on axis. The decay spectrum is nearly perfect. At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are lower than 0.6% above 400 Hz and below 0.6% at 95 dB at 1 m .

Our kit consists of

  • Audaphon AMT-1i
  • WF182CU13, Wavecor Mid/Woofer, 8 Ohm, paper cone, BD, phase plug
  • 8x Bass reflex tube HP35, 35x125 mm, black
  • 2x Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 0,5x Damping Sonofil 100 x 35 cm for 20 litres
  • Female banana jacks, red and black
  • 2m Speaker cable 2x1.5 mm2, transparent
  • Pan screws 3.5x17 black, 8 pieces
  • 0,5x Pan screws 4x20 black, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 3.9 uF / 400 Vdc
  • Audaphon MKT CAP 10 uF / 160 Vdc
  • 1.3 mm air core coil, 1.2 mH/0.35 Ohm
  • 0.7 mm air core coil, 0.68 mH/0.70 Ohm
  • Metal-oxide resistor, 10W 1.5 Ohm (brown-green-gold)
  • Metal-oxide resistor, 10W 12 Ohm (brown-red-black)

Kit without cabinet, price per speaker   EUR 667,00 excl. VAT: € 560.50 / $ 650.18

Kit with high-end crossover

The high-end kit is delivered with copper foil and baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. All capacitors are of type polypropylen (MKP) and in series to the tweeter Clarity-Cap MR 630 V are employed.

Kit with high-end-crossover without cabinet, price per speaker   EUR 778,00 excl. VAT: € 653.78 / $ 758.39

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).


Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 8,85 excl. VAT: € 7.44 / $ 8.63

universal PCBs

If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 150x115 mm, tin plated, price per unit:   EUR 4,70 excl. VAT: € 3.95 / $ 4.58
We recommend one board per kit (2 boards per speaker pair)

Cabinet


Assembled MDF cabinet (without paint) for Kit Elias X1-W182,
price per unit   EUR 560,00 excl. VAT: € 470.59 / $ 545.88

Measurements Elias X1-W182

Grafik

Pictures Elias X1-W182

Grafik

Blueprints Elias X1-W182

Grafik

technical drawing Elias X1-W182

Grafik

step by step instructions Elias X1-W182

Grafik
