Measurements El Centro

Measurements El Centro

Here you can find the measurements for the kit El Centro.

The measurements are made with the Clio FW measurement system from Audiomatica

The measuring amplifier is a Clio QC-Box 5. This control unit performs a variety of tasks, e.g. controlling a laser, controlling turntables, etc.

For the measurements a calibrated Audiomatica Mic-01 with a length of 25 cm is used.

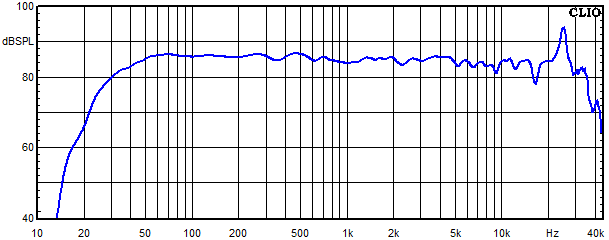

Frequency response

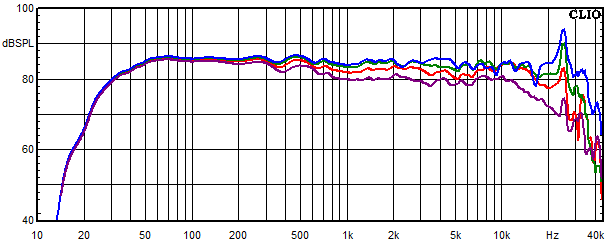

Frequency response measured at 0°, 15°, 30° and 45° angle

Blue = 0°
Green = 15°
Red = 30°
Violet = 45°

Frequency response of the individual circuits

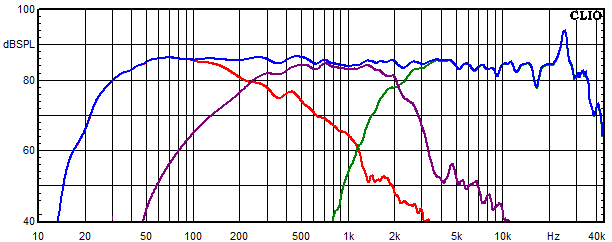

Frequency response of the individual paths (for each driver)

Measurements El Centro, Frequency response of the individual paths (for each driver)

Blue = Sum of tweeter, mids and woofer measured on axis
Green = high frequency branch
Violet = Midtone branch
Red = low frequency branch

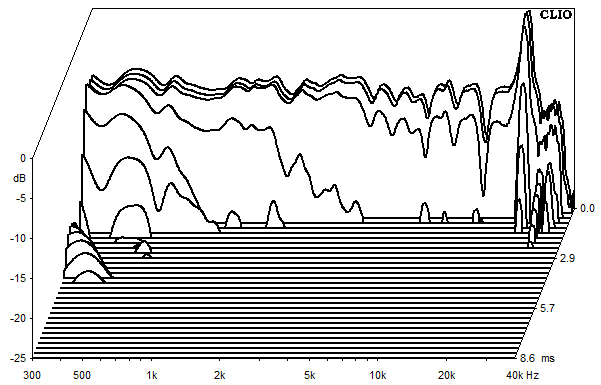

Waterfall spectrum

Measurements El Centro, Waterfall spectrum

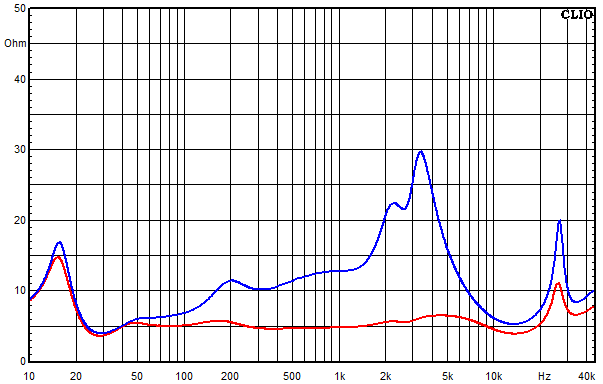

Impedance frequency response

Measurements El Centro, Impedance frequency response

Blue = without impedance correction
Red = with impedance correction

Frequency response of the tweeter

Measurements El Centro, Frequency response of the tweeter

Blue = with crossover
Orange = without crossover

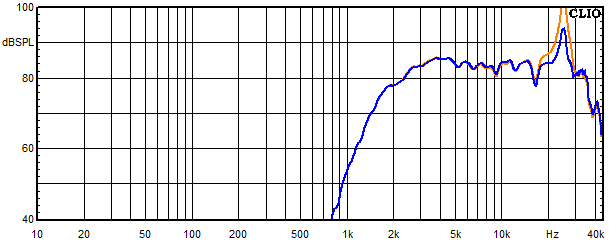

Frequency response of the tweeter with trap curcuit 1

Measurements El Centro, Frequency response of the tweeter with trap curcuit 1

Blue = with crossover
Orange = without crossover

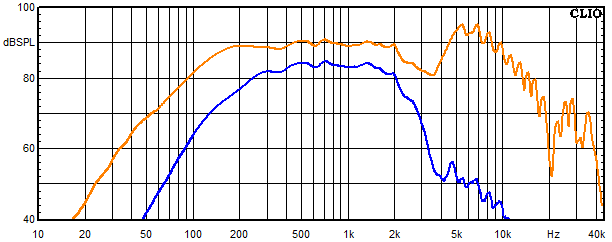

Frequency response of the mids-woofer

Measurements El Centro, Frequency response of the mids-woofer

Blue = with crossover
Orange = without crossover

Frequency response of the mids-woofer with trap circuit 1

Measurements El Centro, Frequency response of the mids-woofer with trap circuit 1

Blue = with trap circuit
Orange = without trap circuit

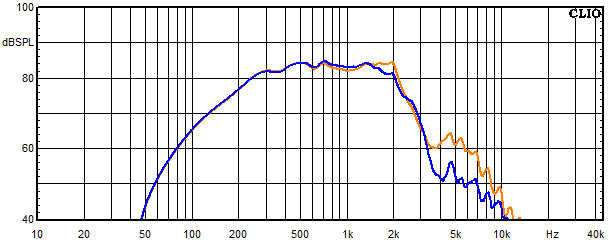

Frequency response of the mids-woofer with trap circuit 2

Measurements El Centro, Frequency response of the mids-woofer with trap circuit 2

Blue = with trap circuit
Orange = without trap circuit

Frequency response of the woofer

Measurements El Centro, Frequency response of the woofer

Blue = with crossover
Orange = without crossover

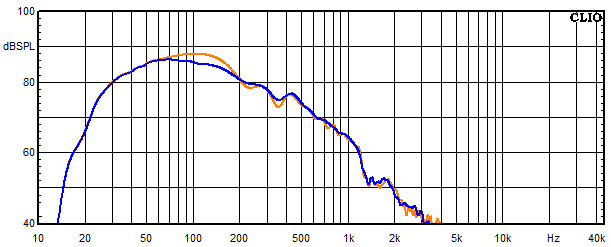

Frequency response of the woofer with trap circuit

Measurements El Centro, Frequency response of the woofer with trap circuit

Blue = with trap circuit
Orange = without trap circuit
