Don MK2   Subwoofer as in newsletter

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): dB
  • size (HxWxD): 700 x 350 x 540 mm
  • frequency range (-8dB): 20 - 150 Hz
  • crossover frequency(s): Hz
  • speaker type: passive radiator
Enlarge

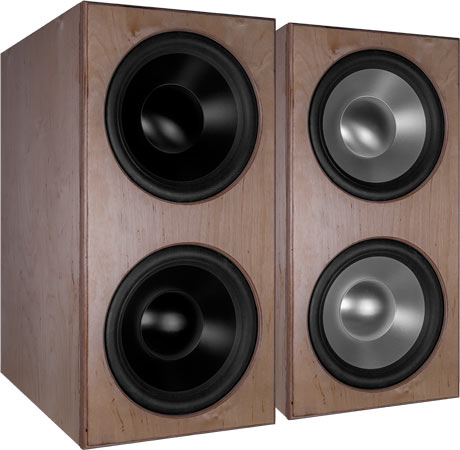

Don MK2 is a versatile subwoofer which complements the rest of the loudspeakers with a powerful and deep bass.

Don MK2 is a loudspeaker with drivers of Wavecor . A passive radiator provides deep bass.

The paint of the membranes you can select between silver and black.

The kit is delivered with the following drivers:
- a Wavecor SW312WA03 subwoofer (silver) , or SW312WA05 (black)
- a passive radiator PR312WA02 (silver), or SW312WA03 (black)

The loudspeaker has been developed by Dennis Frank and Daniel Gattig.

In Don MK2 is usesd a Audaphon AMP-2200 with DSP and a power of 2x 200 watts on 4 ohms, or 1x 350 watts on 4 ohms in bridged mode.
The power of the AMP-2200 is high enough to work with two Don MK2 subwoofers.
The Don MK 2 kit without amplifier has two connectors PK28 included to connect two subwoofers with one AMP-2200.
The AMP-2200 amplifier have also two RCA outputs to control the satellites with the DSP.

The frequency response of this speaker is perfectly linear.

The decay spectrum as shown in the waterfall diagram is exemplary, free of any disturbing resonance.

Our kit with silver membranes consists of

Kit without cabinet, price per speaker   EUR 1224,00 excl. VAT: € 1028.57 / $ 1110.86

Kit without cabinet and amplifier, price per speaker   EUR 837,00 excl. VAT: € 703.36 / $ 759.63

Our kit with black membranes consists of

Kit without cabinet, price per speaker   EUR 1246,00 excl. VAT: € 1047.06 / $ 1130.82

Kit without cabinet and amplifier, price per speaker   EUR 861,00 excl. VAT: € 723.53 / $ 781.41
