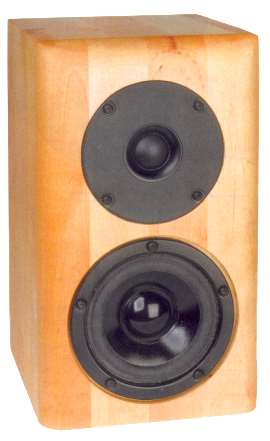

Cheap Trick CT 241 Mini Monitor with Visaton Drivers as in Klang+Ton 1/2009

CT 241 aus Zeitschrift K+T 2/2009
Technical data:
- size (HxWxD): 28.6 x 16.6 x 21.6 cm
- impedance: 4 Ohm
- sensitivity (2.83V/1m): 83 dB
- crossover frequency: 2.2 kHz
- frequency range (-8dB): 42-22 000 Hz
- speaker type: bass reflex
The Klang+Ton editorial office had many request for mini monitors with top sound that are still affordable. Looking for reasonably priced and proven drivers the Visaton SC 10 N8 tweeter with 8 Ohm and the Visaton W100 S4 bass driver with 4 Ohm came across.

Review in Klang+Ton 1/2009:

"After connecting and turning on the system, the size of the speakers became irrelevant. In our relatively large listening room the bass was certainly not overpowering, but still has genuine low bass qualities. The W 100 S performed at a happy medium between the direct approach of untreated paper cones and pleasant warmth – and in addition there is, as already mentioned, quite a bit of bottom end. With the speakers placed parallel to the side walls the exaggeration at 10 kHz is not necessarily unpleasant but also not particularly well balanced. Angled towards the listener it was perfect: the transition from mids and tops was not audible, while the entire upper frequency spectrum was airy and transparent. Three-dimensionality is splendid: individual instruments as well as ensembles are placed with pin-point accuracy. Within limits, the CT241 doesn't even lose control playing back very dynamic music material and shows lots of spirit and an audiophile touch."



Our kit consists of:

  • Visaton SC10 N dome tweeter, 8 Ohm
  • Visaton W 100 S bass driver, 4 Ohm
  • HP 35 bass reflex tube, full length
  • 2 gold plated binding posts
  • 1/2 mat nap foam
  • 1/4 pack polyester damping material
  • 10 Pan screws 3.5 x 17 mm
  • foam sealing tape
  • 2 m loudspeaker cable 2x1.5 mm2
  • Klang+Ton building instruction
    the crossover components (to be mounted on wood):
  • 0.47 mH air core coil / 1 mm
  • 0.39 mH air core coil / 0.7 mm
  • 22 μF ELCO, non-etched
  • 2.7 + 0.47 μF MKP capacitor
  • 2.7 μF MKP capacitor
  • 10 Ohm MOX10 resistor (brown-black-black)
  • 1.5 Ohm MOX10 resistor (brown-green-gold)
  • 5.6 Ohm MOX10 resistor (green-blue-gold)

Price for CT 241 kit without cabinet per unit: EUR 111,00 excl. VAT: € 93.28 / $ 100.74

if you prefer to fit the components yourself on PCB:
PCB RA160, Order No. str-RA160,     Price   EUR 5,90 excl. VAT: € 4.96 / $ 5.35

CT 241 with high-end crossover

Upon request, the CT241 is also available with higher grade components. Since an ELCO's value changes over time, it was replaced with an MKP capacitor, the coils are baked varnish and in series to the tweeter a Jantzen Z-CAP Supreme.
  • 0.47 mH Mundorf baked varnish air core coil / 1 mm
  • 0.39 mH Mundorf baked varnish air core coil / 0.7 mm
  • 22 μF MKP capacitor (Jantzen Cross-CAP)
  • 2.7 + 0.47 μF MKP capacitor (Jantzen Cross-CAP)
  • 2.7 μF Jantzen Z-Superior MKP capacitor
  • 10 Ohm MOX10 resistor (brown-black-black)
  • 1.5 Ohm MOX10 resistor (brown-green-gold)
  • 5.6 Ohm MOX10 resistor (green-blue-gold)

All other components are the same as in the standard kit (see above).

Price for CT 24 high-end kit without cabinet per unit: EUR 141,00 excl. VAT: € 118.49 / $ 127.97

if you prefer to fit the components on a PCB instead on wood:
PCB RA160, Order No. str-RA160,     Price   EUR 5,90 excl. VAT: € 4.96 / $ 5.35
