Tritec HighEnd Spule

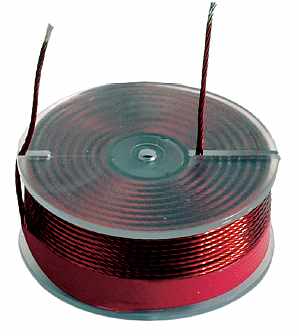

TRITEC Air Core Coil
now with transparent synthetic bobbin

Air core coils are the highest grade coils. Higher frequencies are travelling on the surface of a conductor. This is called skin effect. Stranded wire has a higher surface than solid wire. The skin effect is here less predominant. The coil has a polycarbonate bobbin. The Tritec air core coil features 7 concentric stranded wires. These wires are twisted; available in 3 wire diameters. In the table belowis: 1st line: 7x0,5 mm; 2nd line: 7x0,6 mm; 3rd line: 7x0,8 mm.

Tritec-wire, insolated

If you want to use the tritec (or hepta) wire for your applications we deliver it with transparent PVC insulation.

1 Meter 7x0,6 mm EUR 2,50 excl. VAT: € 2.10 / $ 1.84

Important: The coils are from Intertechnik; in the past we delivered our kits with these coils. Unfortunately we have delivery problems; we propose the following replacement:       Mundorf Heptalitze


Values below 1 mH

Product ID L/mH R/Ohm Price
I-1500225 0.27 0.13 EUR 15,70 excl. VAT: € 13.19 / $ 11.57
I-1500176 0.33 0.18 EUR 12,20 excl. VAT: € 10.25 / $ 8.99
I-1500294 1.80 0.27 EUR 89,90 excl. VAT: € 75.55 / $ 66.27
I-1500296 2.20 0.32 EUR 90,70 excl. VAT: € 76.22 / $ 66.86
I-1500189
I-1500301
3.90
3.90
0.78
0.39
EUR 40,25 excl. VAT: € 33.82 / $ 29.67
EUR 124,40 excl. VAT: € 104.54 / $ 91.70

to other coils:

Mundorf large Mundorf air core coils.

Mundorf CFC coils (copper foil capacitor)
with excellent three-dimensionality and attention to detail; they belong to the group of exceptionally neutral capacitors.

Mundorf Aronit core coils

Mundorf Feron i core coils

Mundorf Feron transformer core coils

Mundorf Zero Ohm Coils

Further coils upon request
