Measurements Amton

Measurements Amton

Here you can find the measurements for the kit Amton.

The measurements are made with the Clio FW measurement system from Audiomatica

The measuring amplifier is a Clio QC-Box 5. This control unit performs a variety of tasks, e.g. controlling a laser, controlling turntables, etc.

For the measurements a calibrated Audiomatica Mic-01 with a length of 25 cm is used.

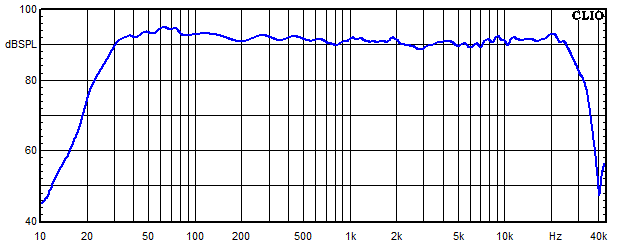

Frequency response

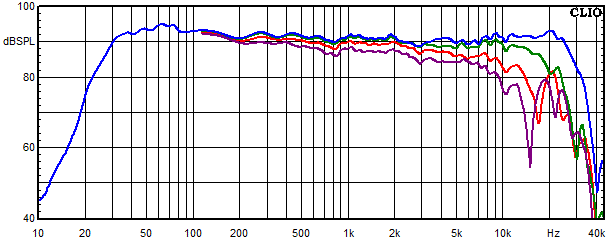

Frequency response measured at 0°, 15°, 30° and 45° angle

Blue = 0°
Green = 15°
Red = 30°
Violet = 45°

Frequency response of the individual circuits

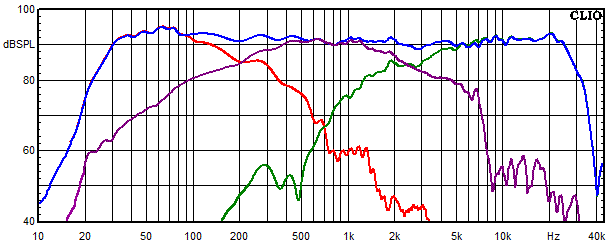

Frequency response of the individual paths (for each driver)

Measurements Amton, Frequency response of the individual paths (for each driver)

Blue = Sum of tweeter, mids and woofer measured on axis
Green = high frequency branch
Violet = Midtone branch
Red = low frequency branch

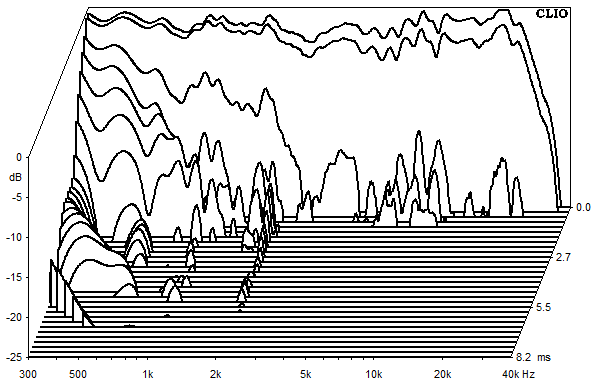

Waterfall spectrum

Measurements Amton, Waterfall spectrum

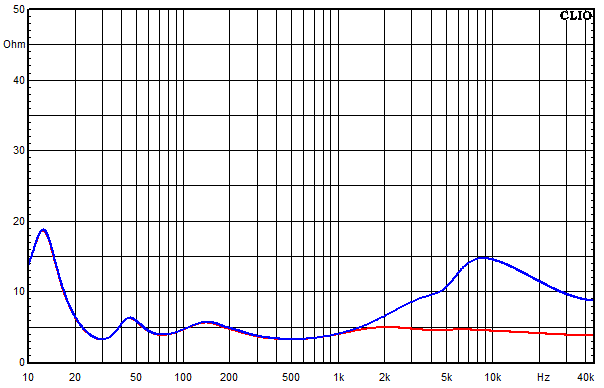

Impedance frequency response

Measurements Amton, Impedance frequency response

Blue = without impedance correction
Red = with impedance correction

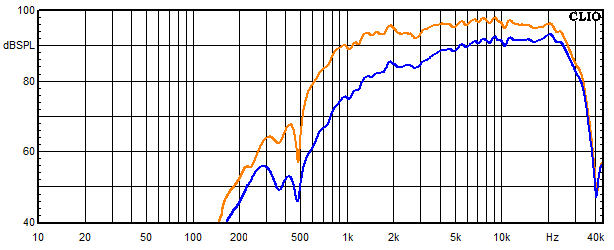

Frequency response of the tweeter

Measurements Amton, Frequency response of the tweeter

Blue = with crossover
Orange = without crossover

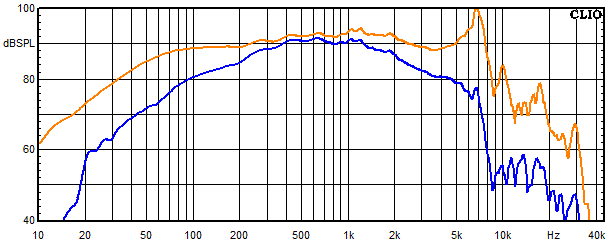

Frequency response of the mids-woofer

Measurements Amton, Frequency response of the mids-woofer

Blue = with crossover
Orange = without crossover

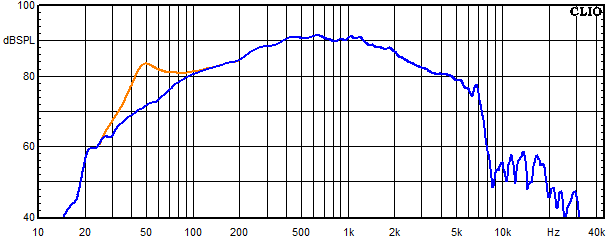

Frequency response of the mids-woofer with trap circuit 1

Measurements Amton, Frequency response of the mids-woofer with trap circuit 1

Blue = with trap circuit
Orange = without trap circuit

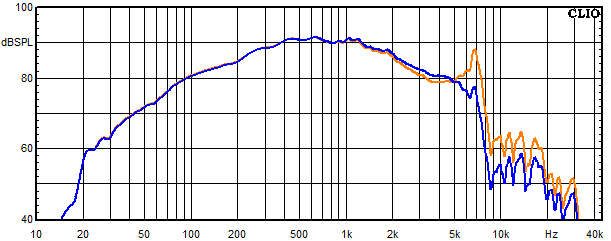

Frequency response of the mids-woofer with trap circuit 2

Measurements Amton, Frequency response of the mids-woofer with trap circuit 2

Blue = with trap circuit
Orange = without trap circuit

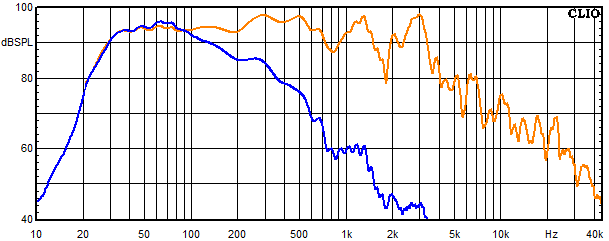

Frequency response of the woofer

Measurements Amton, Frequency response of the woofer

Blue = with crossover
Orange = without crossover

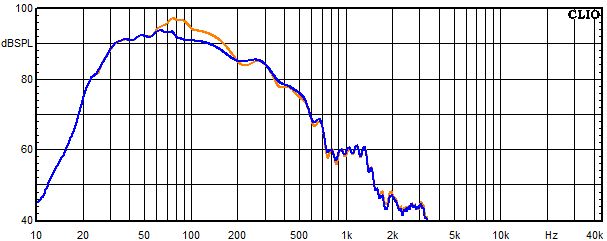

Frequency response of the woofer with trap circuit

Measurements Amton, Frequency response of the woofer with trap circuit

Blue = with trap circuit
Orange = without trap circuit
