Here you can find the measurements for the kit Aare.

The measurements are made with the Clio FW measurement system from Audiomatica

The measuring amplifier is a Clio QC-Box 5. This control unit performs a variety of tasks, e.g. controlling a laser, controlling turntables, etc.

For the measurements a calibrated Audiomatica Mic-01 with a length of 25 cm is used.

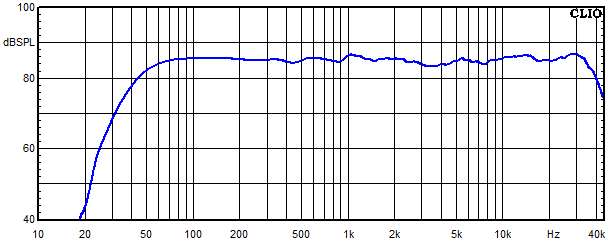

Frequency response

Measurements Aare, Frequency response

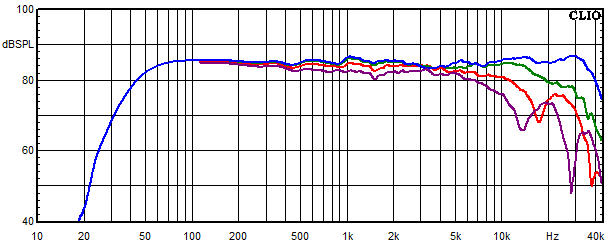

Frequency response measured at 0°, 15°, 30° and 45° angle

Measurements Aare, Frequency response measured at 0°, 15°, 30° and 45° angle

Blue = 0°
Green = 15°
Red = 30°
Violet = 45°

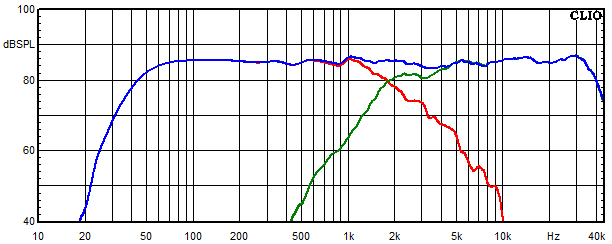

Frequency response of the individual paths (for each driver)

Measurements Aare, Frequency response of the individual paths (for each driver)

Blue = Sum of tweeter and woofer measured on axis
Green = high frequency branch
Red = low frequency branch

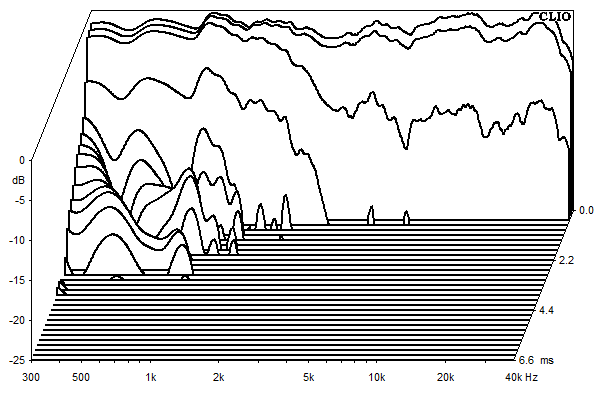

Waterfall spectrum

Measurements Aare, Waterfall spectrum

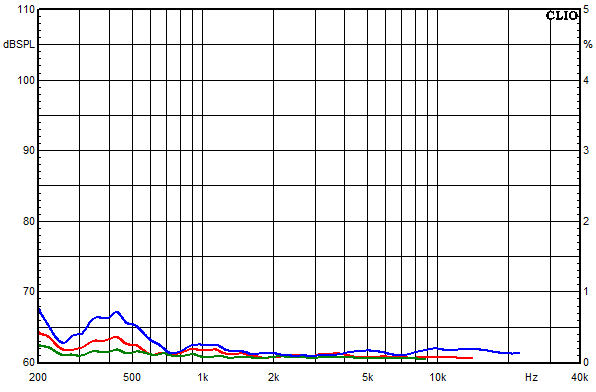

Distortion over frequency at 85 dB sound pressure level

Measurements Aare, Distortion over frequency at 85 dB sound pressure level

Blue = k2
Red = k3
Green = k5

Distortion over frequency at 95 dB sound pressure level

Measurements Aare, Distortion over frequency at 95 dB sound pressure level

Blue = k2
Red = k3
Green = k5

Impedance frequency response

Measurements Aare, Impedance frequency response

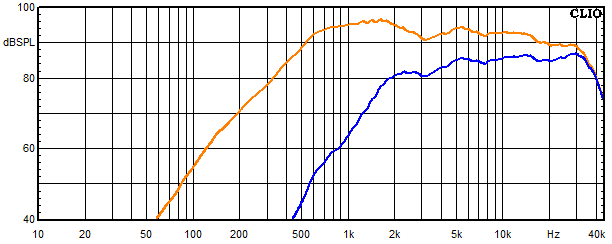

Frequency response of the tweeter

Measurements Aare, Frequency response of the tweeter

Blue = with crossover
Orange = without crossover

Frequency response of the tweeter with bypass capacitor

Measurements Aare, Frequency response of the tweeter with bypass capacitor

Blue = with capacitor
Orange = without capacitor

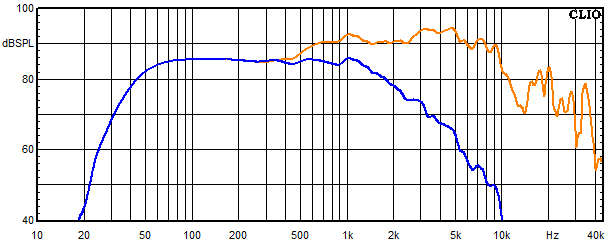

Frequency response of the woofer

Measurements Aare, Frequency response of the woofer

Blue = with crossover
Orange = without crossover

Frequency response of the woofer with trap circuit

Measurements Aare, Frequency response of the woofer with trap circuit

Blue = with trap circuit
Orange = without trap circuit
