Visaton

With 40 years of experience in the field of acoustics and loudspeaker technology Visaton is a future oriented Company. With high engagement in research and development plus the high quality standards of production, Visaton is a specialised and world wide successfully operating German loudspeaker manufacturer.

To our building proposals with Visaton drivers.




ELA

Visaton KL 13 100V

order no. V-50331

EUR 129,70 excl. VAT: € 108.99 / $ 117.71

.

  • power handling (continuous/programme) = 25/12,5/6,25 W
  • frequency range = 150-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • overall diameter d = 181 mm
  • mass m = 1,65 kg

show kits to this chassis hide kits

Visaton WB16 100V/8Ohm black

order no. V-50318

EUR 156,60 excl. VAT: € 131.60 / $ 142.12

.

  • power handling (continuous/programme) = 60/90; 25/15/7,5/4/2 W
  • frequency range = 80-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • overall diameter d = 220x292 mm
  • mounting depth (not countersunk) t = 172 mm
  • mass m = 2,8 kg

show kits to this chassis hide kits

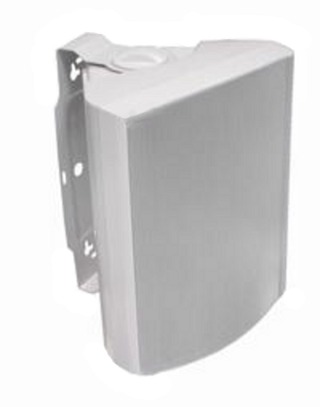

Visaton WB16 100V/8Ohm white

order no. V-50316

EUR 156,60 excl. VAT: € 131.60 / $ 142.12

.

  • power handling (continuous/programme) = 60/90; 25/15/7,5/4/2 W
  • frequency range = 80-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • overall diameter d = 220x292 mm
  • mounting depth (not countersunk) t = 172 mm
  • mass m = 2,8 kg

show kits to this chassis hide kits

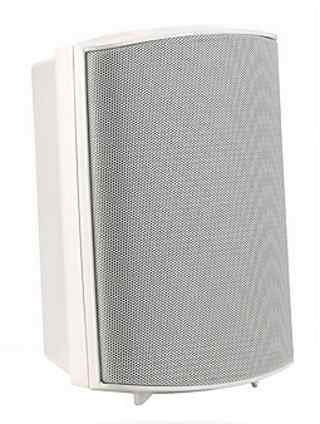

Visaton WB13 100V/8Ohm white

order no. V-50311

EUR 116,00 excl. VAT: € 97.48 / $ 105.28

.

  • power handling (continuous/programme) = 50/80; 25/15/7,5/4/2 W
  • frequency range = 95-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • overall diameter d = 180x240 mm
  • mounting depth (not countersunk) t = 140 mm
  • mass m = 2,4 kg

show kits to this chassis hide kits

Visaton WB13 100V/8Ohm black

order no. V-50313

EUR 116,00 excl. VAT: € 97.48 / $ 105.28

.

  • power handling (continuous/programme) = 50/80; 25/15/7,5/4/2 W
  • frequency range = 95-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • overall diameter d = 180x240 mm
  • mounting depth (not countersunk) t = 140 mm
  • mass m = 2,4 kg

show kits to this chassis hide kits

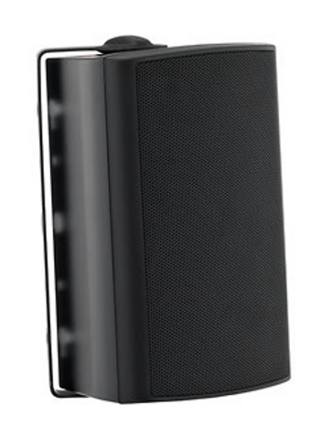

Visaton WB10 100V/8Ohm black

order no. V-50312

EUR 99,97 excl. VAT: € 84.01 / $ 90.73

.

  • power handling (continuous/programme) = 40/60; 15/7,5/4/2 W
  • frequency range = 100-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • overall diameter d = 130x208 mm
  • mounting depth (not countersunk) t = 105 mm
  • mass m = 1325 kg

show kits to this chassis hide kits

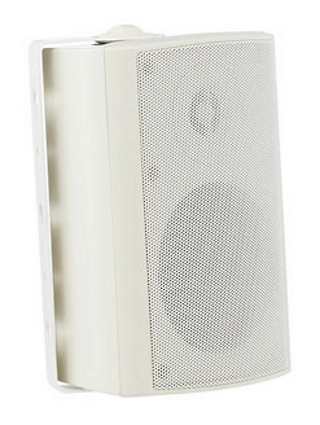

Visaton WB10 100V/8Ohm white

order no. V-50310

EUR 99,97 excl. VAT: € 84.01 / $ 90.73

.

  • power handling (continuous/programme) = 40/60; 15/7,5/4/2 W
  • frequency range = 100-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • overall diameter d = 130x208 mm
  • mounting depth (not countersunk) t = 105 mm
  • mass m = 1325 kg

show kits to this chassis hide kits




Slim

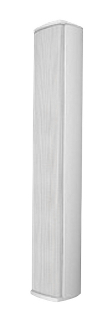

Visaton EZ40.7 100V

order no. V-50404

EUR 357,80 excl. VAT: € 300.67 / $ 324.73

.

  • power handling (continuous/programme) = 20/10/5 W
  • frequency range = 250-20000 Hz
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • overall diameter d = 69,5x396 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 1,9 kg

show kits to this chassis hide kits

Visaton EZ60.7 100V

order no. V-50400

EUR 419,70 excl. VAT: € 352.69 / $ 380.90

.

  • power handling (continuous/programme) = 30/15/7,5 W
  • frequency range = 200-20000 Hz
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • overall diameter d = 69,5x613 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 2,5 kg

show kits to this chassis hide kits

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.
