At Transducer Lab, the goal is to produce drivers that accurately transform the original signal to an acoustical signal with minimal alteration.

Quality is a factor as well. The drivers are carefully assembled and tested in lab conditions.

Transducer Lab tweeters are matched to better than +/- 0.75db. Each tweeter is thoroughly tested and evaluated to meet our standard specifications.

The ceramic domes on the models N26C, N27B4 are sintered from Al2o3 and B4C material. You will notice the purity of the dome by its finish. The domes operate in pure piston motion to well above the audible range.

The N28BE is a high purity Beryllium dome tweeter with advanced design and premium parts to match. Response to above 55khz with a natural airy sound.

These premium fidelity drivers that are designed and assembled in the USA.

Tweeter

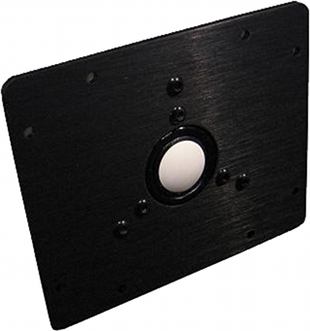

open a bigger photo	Transducer Lab N26C-A (Aluminium Voice-Coil) order no. tl-N26C-A EUR 167,00 excl. VAT: € 140.34 / $ 172.61 26 mm dome tweeter with ceramic dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 100 W frequency range = 1000-35000 Hz resonance frequency fs = 560 Hz impedance R = 6 Ohm sound pressure level SPL = 90 dB (2,83V; 1m) DC resistance Re = 4,3 Ohm force factor BL = 4,4 N/A effective piston radiating area Sd = 5,8 cm² effective mechanical mass incl. air load mms = 0,46 g total Q factor Qts = 0,23 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 135x108,5 mm mounting depth (not countersunk) t = 35,5 mm PDF data sheet
show kits to this chassis hide kits
open a bigger photo	Transducer Lab N26C-T (Titan Voice-Coil) order no. tl-N26C-T - not available 26 mm dome tweeter with ceramic dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 100 W frequency range = 1000-35000 Hz resonance frequency fs = 570 Hz impedance R = 6 Ohm sound pressure level SPL = 90 dB (2,83V; 1m) DC resistance Re = 4,3 Ohm force factor BL = 4,4 N/A effective piston radiating area Sd = 5,8 cm² effective mechanical mass incl. air load mms = 0,45 g total Q factor Qts = 0,24 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 135x108,5 mm mounting depth (not countersunk) t = 35,5 mm PDF data sheet
show kits to this chassis hide kits
open a bigger photo	Transducer Lab N26C-G (Glass Fiber Voice-Coil) order no. tl-N26C-G EUR 167,00 excl. VAT: € 140.34 / $ 172.61 26 mm dome tweeter with ceramic dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 100 W frequency range = 1000-35000 Hz resonance frequency fs = 580 Hz impedance R = 6 Ohm sound pressure level SPL = 90 dB (2,83V; 1m) DC resistance Re = 4,3 Ohm force factor BL = 4,5 N/A effective piston radiating area Sd = 5,8 cm² effective mechanical mass incl. air load mms = 0,43 g total Q factor Qts = 0,24 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 135x108,5 mm mounting depth (not countersunk) t = 35,5 mm PDF data sheet
show kits to this chassis hide kits
open a bigger photo	Transducer Lab N26K-A (Aluminium Voice-Coil) order no. tl-N26K-A - not available 26 mm dome tweeter with kevlar dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 95 W frequency range = 1000-35000 Hz resonance frequency fs = 410 Hz impedance R = 6 Ohm sound pressure level SPL = 92 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,1 N/A effective piston radiating area Sd = 5,9 cm² effective mechanical mass incl. air load mms = 0,35 g total Q factor Qts = 0,22 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 130x106 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits

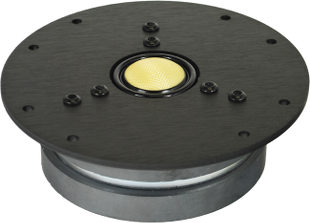

open a bigger photo	Transducer Lab N26KR-A (Aluminium Voice-Coil) order no. tl-N26KR-A - not available 26 mm dome tweeter with kevlar dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 95 W frequency range = 1000-35000 Hz resonance frequency fs = 410 Hz impedance R = 6 Ohm sound pressure level SPL = 92 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,1 N/A effective piston radiating area Sd = 5,9 cm² effective mechanical mass incl. air load mms = 0,35 g total Q factor Qts = 0,22 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 120 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits

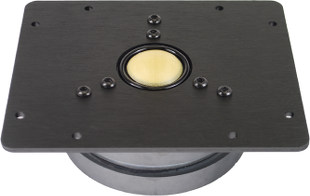

open a bigger photo	Transducer Lab N26KL-A (Aluminium Voice-Coil) order no. tl-N26KL-A - not available 26 mm dome tweeter with kevlar dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 95 W frequency range = 1000-35000 Hz resonance frequency fs = 440 Hz impedance R = 6 Ohm sound pressure level SPL = 92,5 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,1 N/A effective piston radiating area Sd = 5,9 cm² effective mechanical mass incl. air load mms = 0,33 g total Q factor Qts = 0,21 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 130x106 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits

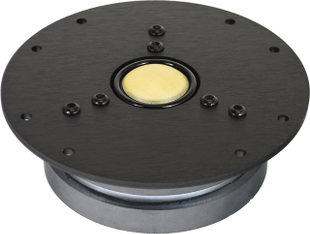

open a bigger photo	Transducer Lab N26KLR-A (Aluminium Voice-Coil) order no. tl-N26KLR-A - not available 26 mm dome tweeter with kevlar dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 95 W frequency range = 1000-35000 Hz resonance frequency fs = 440 Hz impedance R = 6 Ohm sound pressure level SPL = 92,5 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,1 N/A effective piston radiating area Sd = 5,9 cm² effective mechanical mass incl. air load mms = 0,33 g total Q factor Qts = 0,21 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 120 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits

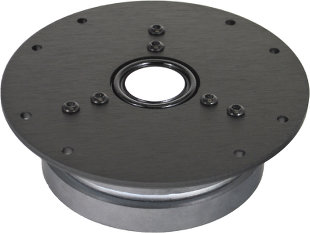

open a bigger photo	Transducer Lab N26CR2-A (Aluminium Voice-Coil) order no. tl-N26CR2-A - not available 26 mm dome tweeter with ceramic dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 95 W frequency range = 800-35000 Hz resonance frequency fs = 380 Hz impedance R = 6 Ohm sound pressure level SPL = 91,5 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,1 N/A effective piston radiating area Sd = 5,8 cm² effective mechanical mass incl. air load mms = 0,39 g total Q factor Qts = 0,21 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 120 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits
open a bigger photo	Transducer Lab N26CR2-G (Glass Fiber Voice-Coil) order no. tl-N26CR2-G - not available 26 mm dome tweeter with ceramic dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 90 W frequency range = 800-35000 Hz resonance frequency fs = 390 Hz impedance R = 6 Ohm sound pressure level SPL = 92 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,2 N/A effective piston radiating area Sd = 5,8 cm² effective mechanical mass incl. air load mms = 0,38 g total Q factor Qts = 0,21 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 120 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits

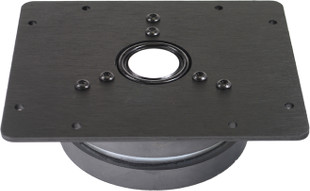

open a bigger photo	Transducer Lab N26CS-A (Aluminium Voice-Coil) order no. tl-N26CS-A EUR 189,00 excl. VAT: € 158.82 / $ 195.35 26 mm dome tweeter with ceramic dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 95 W frequency range = 800-35000 Hz resonance frequency fs = 380 Hz impedance R = 6 Ohm sound pressure level SPL = 91,5 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,1 N/A effective piston radiating area Sd = 5,8 cm² effective mechanical mass incl. air load mms = 0,39 g total Q factor Qts = 0,21 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 130x106 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits
open a bigger photo	Transducer Lab N26CS-G (Glass Fiber Voice-Coil) order no. tl-N26CS-G EUR 189,00 excl. VAT: € 158.82 / $ 195.35 26 mm dome tweeter with ceramic dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 90 W frequency range = 800-35000 Hz resonance frequency fs = 390 Hz impedance R = 6 Ohm sound pressure level SPL = 92 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,2 N/A effective piston radiating area Sd = 5,8 cm² effective mechanical mass incl. air load mms = 0,38 g total Q factor Qts = 0,22 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 130x106 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits

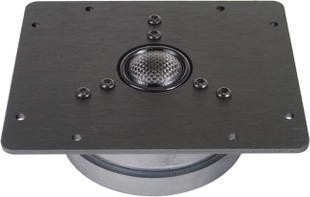

open a bigger photo	Transducer Lab N26CF-A (Aluminium Voice-Coil) order no. tl-N26CF-A EUR 178,00 excl. VAT: € 149.58 / $ 183.98 26 mm dome tweeter with carbon dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 100 W frequency range = 1000-35000 Hz resonance frequency fs = 400 Hz impedance R = 6 Ohm sound pressure level SPL = 92 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,1 N/A effective piston radiating area Sd = 5,9 cm² effective mechanical mass incl. air load mms = 0,37 g total Q factor Qts = 0,22 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 130x106 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits

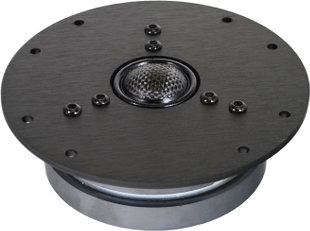

open a bigger photo	Transducer Lab N26CFR-A (Aluminium Voice-Coil) order no. tl-N26CFR-A EUR 178,00 excl. VAT: € 149.58 / $ 183.98 26 mm dome tweeter with carbon dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 100 W frequency range = 1000-35000 Hz resonance frequency fs = 400 Hz impedance R = 6 Ohm sound pressure level SPL = 92 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,1 N/A effective piston radiating area Sd = 5,9 cm² effective mechanical mass incl. air load mms = 0,37 g total Q factor Qts = 0,22 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 120 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits

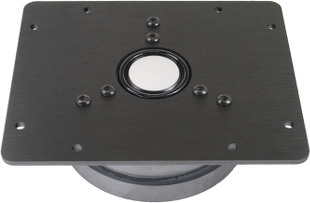

open a bigger photo	Transducer Lab N26MG-A (Aluminium Voice-Coil) order no. tl-N26MG-A EUR 178,00 excl. VAT: € 149.58 / $ 183.98 26 mm dome tweeter with magnesium dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 100 W frequency range = 900-35000 Hz resonance frequency fs = 430 Hz impedance R = 6 Ohm sound pressure level SPL = 92 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,1 N/A effective piston radiating area Sd = 5,9 cm² effective mechanical mass incl. air load mms = 0,33 g total Q factor Qts = 0,2 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 130x106 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits
open a bigger photo	Transducer Lab N26MG-G (Glass Fiber Voice-Coil) order no. tl-N26MG-G EUR 178,00 excl. VAT: € 149.58 / $ 183.98 26 mm dome tweeter with magnesium dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 95 W frequency range = 1000-35000 Hz resonance frequency fs = 440 Hz impedance R = 6 Ohm sound pressure level SPL = 92,5 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,2 N/A effective piston radiating area Sd = 5,9 cm² effective mechanical mass incl. air load mms = 0,32 g total Q factor Qts = 0,21 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 130x106 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits

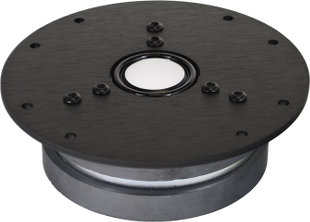

open a bigger photo	Transducer Lab N26MGR-A (Aluminium Voice-Coil) order no. tl-N26MGR-A - not available 26 mm dome tweeter with magnesium dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 100 W frequency range = 900-35000 Hz resonance frequency fs = 430 Hz impedance R = 6 Ohm sound pressure level SPL = 92 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,1 N/A effective piston radiating area Sd = 5,9 cm² effective mechanical mass incl. air load mms = 0,33 g total Q factor Qts = 0,2 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 120 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits
open a bigger photo	Transducer Lab N26MGR-G (Glass Fiber Voice-Coil) order no. tl-N26MGR-G EUR 178,00 excl. VAT: € 149.58 / $ 183.98 26 mm dome tweeter with magnesium dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 95 W frequency range = 1000-35000 Hz resonance frequency fs = 440 Hz impedance R = 6 Ohm sound pressure level SPL = 92,5 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,2 N/A effective piston radiating area Sd = 5,9 cm² effective mechanical mass incl. air load mms = 0,32 g total Q factor Qts = 0,21 voice coil diameter = 26 mm maximum peak linear excursion vibration x_lin = +/- 1 mm mounting diameter d = 90 mm overall diameter d = 120 mm mounting depth (not countersunk) t = 42 mm PDF data sheet
show kits to this chassis hide kits

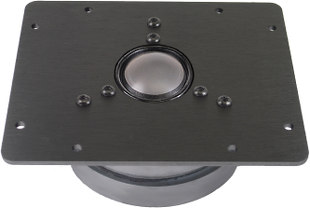

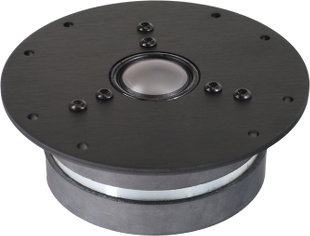

open a bigger photo	Transducer Lab N28BE-A (Aluminium Voice-Coil) order no. tl-N28BE-A - not available 28 mm dome tweeter with beryllium dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 110 W frequency range = 1200-40000 Hz resonance frequency fs = 550 Hz impedance R = 6 Ohm sound pressure level SPL = 95 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,3 N/A effective piston radiating area Sd = 6,7 cm² effective mechanical mass incl. air load mms = 0,24 g total Q factor Qts = 0,16 voice coil diameter = 28 mm maximum peak linear excursion vibration x_lin = +/- 1,2 mm mounting diameter d = 90 mm overall diameter d = 130x106 mm mounting depth (not countersunk) t = 48 mm PDF data sheet
show kits to this chassis hide kits
open a bigger photo	Transducer Lab N28BE-G (Glass Fiber Voice-Coil) order no. tl-N28BE-G - not available 28 mm dome tweeter with beryllium dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 105 W frequency range = 1200-40000 Hz resonance frequency fs = 560 Hz impedance R = 6 Ohm sound pressure level SPL = 95,5 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,4 N/A effective piston radiating area Sd = 6,7 cm² effective mechanical mass incl. air load mms = 0,23 g total Q factor Qts = 0,17 voice coil diameter = 28 mm maximum peak linear excursion vibration x_lin = +/- 1,2 mm mounting diameter d = 90 mm overall diameter d = 130x106 mm mounting depth (not countersunk) t = 48 mm PDF data sheet
show kits to this chassis hide kits
open a bigger photo	Transducer Lab N28BER-A (Aluminium Voice-Coil) order no. tl-N28BER-A EUR 368,00 excl. VAT: € 309.24 / $ 380.37 28 mm dome tweeter with beryllium dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 110 W frequency range = 1200-40000 Hz resonance frequency fs = 550 Hz impedance R = 6 Ohm sound pressure level SPL = 95 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,3 N/A effective piston radiating area Sd = 6,7 cm² effective mechanical mass incl. air load mms = 0,24 g total Q factor Qts = 0,16 voice coil diameter = 28 mm maximum peak linear excursion vibration x_lin = +/- 1,2 mm mounting diameter d = 90 mm overall diameter d = 120 mm mounting depth (not countersunk) t = 48 mm PDF data sheet
show kits to this chassis hide kits
open a bigger photo	Transducer Lab N28BER-G (Glass Fiber Voice-Coil) order no. tl-N28BER-G EUR 368,00 excl. VAT: € 309.24 / $ 380.37 28 mm dome tweeter with beryllium dome. The speaker has a 3 mm solid metal front plate. power handling (continuous/programme) = 105 W frequency range = 1200-40000 Hz resonance frequency fs = 560 Hz impedance R = 6 Ohm sound pressure level SPL = 95,5 dB (2,83V; 1m) DC resistance Re = 4,1 Ohm force factor BL = 3,4 N/A effective piston radiating area Sd = 6,7 cm² effective mechanical mass incl. air load mms = 0,23 g total Q factor Qts = 0,17 voice coil diameter = 28 mm maximum peak linear excursion vibration x_lin = +/- 1,2 mm mounting diameter d = 90 mm overall diameter d = 120 mm mounting depth (not countersunk) t = 48 mm PDF data sheet
show kits to this chassis hide kits
