Peerless was founded in Denmark in 1926. In 2000, Vifa, also founded in Denmark, merged with Peerless to form Danish Sound Technology (DST). In 2005, Tymphany acquired Danish Sound Technology (DST) along with the original Peerless, Vifa, and Scan-Speak brands, engineering, products, and technology.

To our building proposals with Peerless drivers.




Tweeter

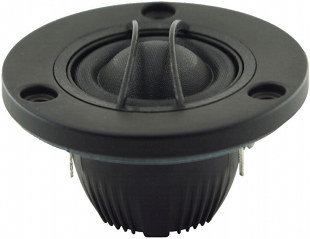

Peerless NE19VTS-04 (NE200-VS4)

order no. ty-NE19VTS-04

EUR 39,20 excl. VAT: € 32.94 / $ 35.58

19 mm tweeter with fabric cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80 W
  • frequency range = 1500-30000 Hz
  • resonance frequency fs = 743 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,3 dB (2,83V; 1m)
  • DC resistance Re = 2,71 Ohm
  • force factor BL = 1,07 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 4,9 cm2
  • effective mechanical mass incl. air load mms = 0,2 g
  • total Q factor Qts = 1,35 (Qms=3,36, Qes=2,27)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm
  • overall diameter d = 52 mm
  • mounting depth (not countersunk) t = 25,1 mm
  • mass m = 0,06 kg
PDF data sheet

show kits to this chassis hide kits

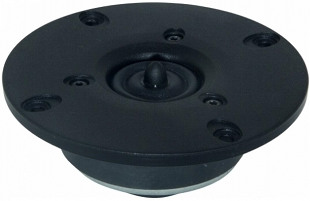

Peerless XT19TD00-04 (XT200 K/4)

order no. ty-XT19TD00-04

on request

19 mm tweeter with fabric cone.

  • power handling (continuous/programme) = 120 W
  • frequency range = 2000-40000 Hz
  • resonance frequency fs = 763 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,1 dB (2,83V; 1m)
  • DC resistance Re = 2,86 Ohm
  • force factor BL = 1,85 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 4,9 cm2
  • effective mechanical mass incl. air load mms = 0,2 g
  • total Q factor Qts = 0,65 (Qms=3,05, Qes=0,83)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm
  • mounting diameter d = 67 mm
  • overall diameter d = 94 mm
  • mounting depth (not countersunk) t = 35,7 mm
  • mass m = 0,32 kg
PDF data sheet

show kits to this chassis hide kits

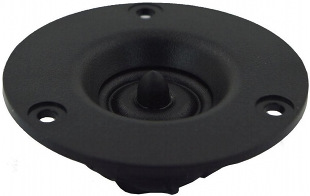

Peerless XT19NC30-04

order no. ty-XT19NC30-04

EUR 30,00 excl. VAT: € 25.21 / $ 27.23

19 mm tweeter with fabric cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 2500-40000 Hz
  • resonance frequency fs = 973 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,4 dB (2,83V; 1m)
  • DC resistance Re = 3,06 Ohm
  • force factor BL = 1,63 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 4,5 cm2
  • effective mechanical mass incl. air load mms = 0,2 g
  • total Q factor Qts = 1,21 (Qms=7,72, Qes=1,44)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm
  • mounting diameter d = 38,6 mm
  • overall diameter d = 66,3 mm
  • mounting depth (not countersunk) t = 25,7 mm
  • mass m = 0,05 kg
PDF data sheet

show kits to this chassis hide kits

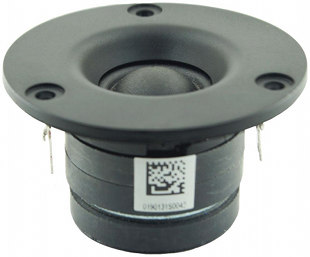

Peerless DX20BF00-04

order no. ty-DX20BF00-04

EUR 27,50 excl. VAT: € 23.11 / $ 24.96

19 mm tweeter with fabric cone. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 60 W
  • frequency range = 2000-25000 Hz
  • resonance frequency fs = 822 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90,1 dB (2,83V; 1m)
  • DC resistance Re = 2,81 Ohm
  • force factor BL = 1 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 4,9 cm2
  • effective mechanical mass incl. air load mms = 0,2 g
  • total Q factor Qts = 1,27 (Qms=2,24, Qes=2,93)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm
  • mounting diameter d = 49,5 mm
  • overall diameter d = 66 mm
  • mounting depth (not countersunk) t = 35 mm
  • mass m = 0,17 kg
PDF data sheet

show kits to this chassis hide kits

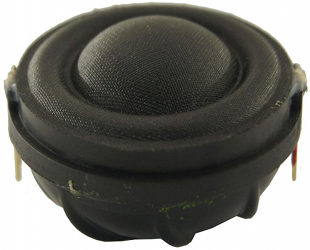

Peerless OX20SC00-04

order no. ty-OX20SC00-04

on request

19 mm tweeter with fabric cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 2500-35000 Hz
  • resonance frequency fs = 1025 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90,7 dB (2,83V; 1m)
  • DC resistance Re = 3,28 Ohm
  • force factor BL = 1,54 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 4,9 cm2
  • effective mechanical mass incl. air load mms = 0,2 g
  • total Q factor Qts = 1,53 (Qms=9,46, Qes=1,83)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm
  • overall diameter d = 33,4 mm
  • mass m = 0,04 kg
PDF data sheet

show kits to this chassis hide kits

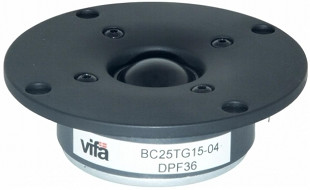

Peerless BC25TG15-04 (HT 250 F/4)

order no. ty-BC25TG15-04

EUR 26,50 excl. VAT: € 22.27 / $ 24.05

25 mm tweeter with fabric cone. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 50 W
  • frequency range = 2000-22000 Hz
  • resonance frequency fs = 1128 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93,2 dB (2,83V; 1m)
  • DC resistance Re = 2,99 Ohm
  • force factor BL = 2,28 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 0,84 (Qms=2,54, Qes=1,26)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,6 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 32,55 mm
  • mass m = 0,5 kg
PDF data sheet

show kits to this chassis hide kits

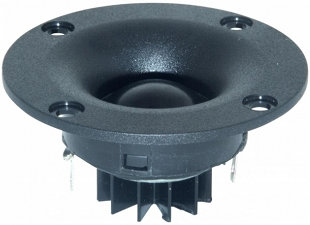

Peerless BC25SC06-04

order no. ty-BC25SC06-04

EUR 26,10 excl. VAT: € 21.93 / $ 23.69

25 mm tweeter with fabric cone. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 25 W
  • frequency range = 2500-20000 Hz
  • resonance frequency fs = 1395 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 96,2 dB (2,83V; 1m)
  • DC resistance Re = 2,76 Ohm
  • force factor BL = 2,05 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 4,9 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 1,17 (Qms=3,45, Qes=1,76)
  • voice coil diameter = 25 mm
  • mounting diameter d = 46,2 mm
  • overall diameter d = 70 mm
  • mounting depth (not countersunk) t = 34,5 mm
  • mass m = 0,08 kg
PDF data sheet

show kits to this chassis hide kits

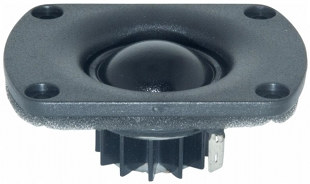

Peerless BC25SC55-04

order no. ty-BC25SC55-04

EUR 25,30 excl. VAT: € 21.26 / $ 22.96

25 mm tweeter with fabric cone. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 100 W
  • frequency range = 2500-20000 Hz
  • resonance frequency fs = 1400 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93,3 dB (2,83V; 1m)
  • DC resistance Re = 2,74 Ohm
  • force factor BL = 2,18 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 7,1 cm2
  • effective mechanical mass incl. air load mms = 0,4 g
  • total Q factor Qts = 1,24 (Qms=3,82, Qes=1,83)
  • voice coil diameter = 25 mm
  • overall diameter d = 70x54 mm
  • mounting depth (not countersunk) t = 29,55 mm
  • mass m = 0,08 kg
PDF data sheet

show kits to this chassis hide kits

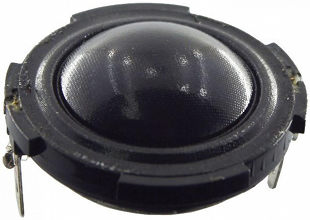

Peerless OC25SC65-04

order no. ty-OC25SC65-04

EUR 25,90 excl. VAT: € 21.76 / $ 23.51

25 mm tweeter with fabric cone. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 25 W
  • frequency range = 2500-20000 Hz
  • resonance frequency fs = 1382 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93,2 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2,1 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 6,9 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 1,26 (Qms=4,07, Qes=1,83)
  • voice coil diameter = 25 mm
  • overall diameter d = 41,26 mm
  • mass m = 0,05 kg
PDF data sheet

show kits to this chassis hide kits

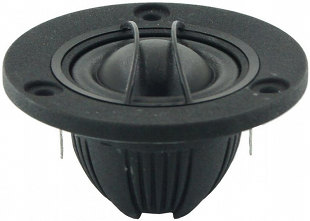

Peerless NE25VTS-04 (NE250-VS4)

order no. ty-NE25VTS-04

on request

25 mm tweeter with fabric cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100 W
  • frequency range = 1000-25000 Hz
  • resonance frequency fs = 733 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91,3 dB (2,83V; 1m)
  • DC resistance Re = 3,15 Ohm
  • force factor BL = 2,17 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 8 cm2
  • effective mechanical mass incl. air load mms = 0,4 g
  • total Q factor Qts = 0,89 (Qms=4,41, Qes=1,12)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm
  • mounting diameter d = 48 mm
  • overall diameter d = 66,3 mm
  • mounting depth (not countersunk) t = 31,04 mm
  • mass m = 0,1 kg
PDF data sheet

show kits to this chassis hide kits

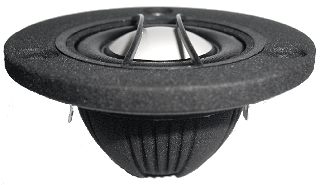

Peerless NE25VTC-04 (NE250-VC4)

Peerless NE25VTC-04 (NE250-VC4)

order no. ty-NE25VTC-04

EUR 49,20 excl. VAT: € 41.34 / $ 44.65

25 mm tweeter with ceramic cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100 W
  • frequency range = 1000-25000 Hz
  • resonance frequency fs = 730 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 2,1 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 8 cm2
  • effective mechanical mass incl. air load mms = 0,36 g
  • total Q factor Qts = 0,95 (Qms=4,6, Qes=1,2)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm
  • mounting diameter d = 48 mm
  • overall diameter d = 66,3 mm
  • mounting depth (not countersunk) t = 31,5 mm
  • mass m = 0,1 kg

show kits to this chassis hide kits

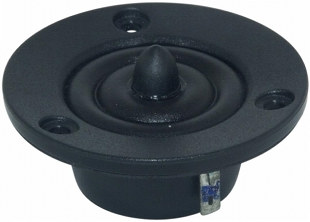

Peerless XT25SC90-04

order no. ty-XT25SC90-04

EUR 47,20 excl. VAT: € 39.66 / $ 42.84

25 mm tweeter with fabric cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 2000-30000 Hz
  • resonance frequency fs = 825 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90,1 dB (2,83V; 1m)
  • DC resistance Re = 3,13 Ohm
  • force factor BL = 2,18 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 8,6 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 0,93 (Qms=7,17, Qes=1,07)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm
  • mounting diameter d = 46,5 mm
  • overall diameter d = 65 mm
  • mass m = 0,07 kg
PDF data sheet

show kits to this chassis hide kits

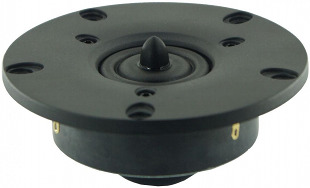

Peerless XT25TG30-04 (XT300 K/4)

order no. ty-XT25TG30-04

EUR 46,50 excl. VAT: € 39.08 / $ 42.20

25 mm tweeter with fabric cone.

  • power handling (continuous/programme) = 110 W
  • frequency range = 2000-40000 Hz
  • resonance frequency fs = 436 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90,8 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2,36 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 8,2 cm2
  • effective mechanical mass incl. air load mms = 0,4 g
  • total Q factor Qts = 0,44 (Qms=2,5, Qes=0,54)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,5 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 40,1 mm
  • mass m = 0,5 kg
PDF data sheet

show kits to this chassis hide kits

Peerless DX25TG59-04

order no. ty-DX25TG59-04

EUR 29,10 excl. VAT: € 24.45 / $ 26.41

25 mm tweeter with fabric cone. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 100 W
  • frequency range = 2000-23000 Hz
  • resonance frequency fs = 640 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 2,93 Ohm
  • force factor BL = 2,41 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 8,2 cm2
  • effective mechanical mass incl. air load mms = 0,4 g
  • total Q factor Qts = 0,57 (Qms=2,46, Qes=0,74)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 33 mm
  • mass m = 0,5 kg
PDF data sheet

show kits to this chassis hide kits

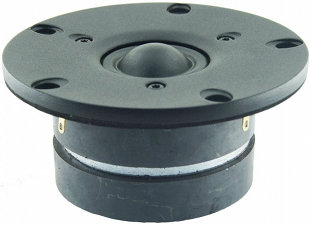

Peerless DX25BG60-04

order no. ty-DX25BG60-04

EUR 58,20 excl. VAT: € 48.91 / $ 52.82

25 mm tweeter with fabric cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 1500-30000 Hz
  • resonance frequency fs = 415 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 3,47 Ohm
  • force factor BL = 2,46 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 8 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 0,36 (Qms=1,4, Qes=0,48)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 61 mm
  • mass m = 0,8 kg
PDF data sheet

show kits to this chassis hide kits

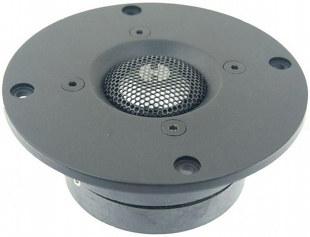

Peerless DA25BG08-04

order no. ty-DA25BG08-04

on request

25 mm tweeter with aluminium cone. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 100 W
  • frequency range = 1500-30000 Hz
  • resonance frequency fs = 770 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 94,7 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 2,38 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 6,7 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 0,57 (Qms=1,88, Qes=0,82)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,7 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 104,3 mm
  • mounting depth (not countersunk) t = 44 mm
  • mass m = 0,68 kg
PDF data sheet

show kits to this chassis hide kits

Peerless DA25BG08-08

order no. ty-DA25BG08-08

on request

25 mm tweeter with aluminium cone. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 100 W
  • frequency range = 1500-30000 Hz
  • resonance frequency fs = 795 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91,9 dB (2,83V; 1m)
  • DC resistance Re = 6,72 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 6,7 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 0,69 (Qms=1,89, Qes=1,09)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,7 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 104,3 mm
  • mounting depth (not countersunk) t = 44 mm
  • mass m = 0,68 kg
PDF data sheet

show kits to this chassis hide kits

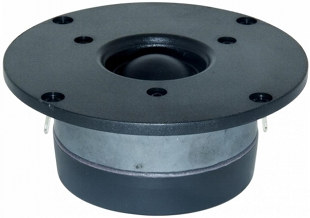

Peerless D27TG35-06 (HT 270 VF/6)

order no. ty-D27TG35-06

EUR 42,20 excl. VAT: € 35.46 / $ 38.30

25 mm tweeter with fabric cone. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 100 W
  • frequency range = 2000-23000 Hz
  • resonance frequency fs = 912 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 92,8 dB (2,83V; 1m)
  • DC resistance Re = 4,89 Ohm
  • force factor BL = 2,48 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 7,1 cm2
  • effective mechanical mass incl. air load mms = 0,2 g
  • total Q factor Qts = 0,55 (Qms=1,21, Qes=1,01)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,5 mm
  • mounting diameter d = 81 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 38,9 mm
  • mass m = 0,52 kg
PDF data sheet

show kits to this chassis hide kits




Full Range

Peerless PLS-P830970 (WB 2,00 FR/04)

order no. ty-PLS-P830970

EUR 34,10 excl. VAT: € 28.66 / $ 30.95

full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 25 W
  • frequency range = 200-20000 Hz
  • resonance frequency fs = 166 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85,3 dB (2,83V; 1m)
  • DC resistance Re = 3,6 Ohm
  • force factor BL = 2,79 N/A
  • voice coil inductance L = 0,03 mH
  • effective piston radiating area Sd = 13,9 cm2
  • effective mechanical mass incl. air load mms = 1,4 g
  • equivalent volume of compliance Vas = 0,18 l
  • total Q factor Qts = 0,57 (Qms=3,85, Qes=0,67)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1,7 mm
  • mounting diameter d = 50 mm
  • overall diameter d = 55x55 mm
  • mounting depth (not countersunk) t = 33,2 mm
  • mass m = 0,14 kg
PDF data sheet

show kits to this chassis hide kits

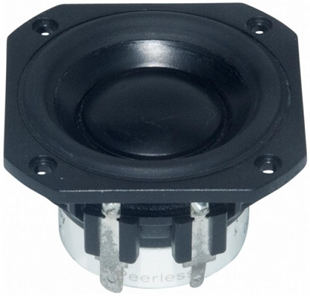

Peerless PLS-P830983 (WB 2,00 LT/04)

order no. ty-PLS-P830983

EUR 33,10 excl. VAT: € 27.82 / $ 30.04

full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 25 W
  • frequency range = 200-20000 Hz
  • resonance frequency fs = 176 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 3,6 Ohm
  • force factor BL = 2,83 N/A
  • voice coil inductance L = 0,03 mH
  • effective piston radiating area Sd = 15,2 cm2
  • effective mechanical mass incl. air load mms = 1,6 g
  • equivalent volume of compliance Vas = 0,16 l
  • total Q factor Qts = 0,71 (Qms=5,63, Qes=0,81)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1,7 mm
  • mounting diameter d = 50 mm
  • overall diameter d = 55x55 mm
  • mounting depth (not countersunk) t = 33,2 mm
  • mass m = 0,14 kg
PDF data sheet

show kits to this chassis hide kits

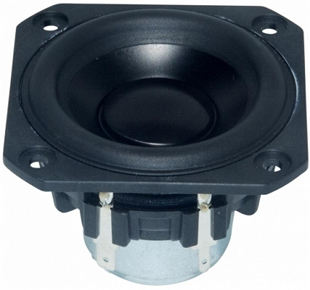

Peerless PLS-P830984 (WB 2,50 FR/08)

order no. ty-PLS-P830984

on request

69x69 cm full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 25 W
  • frequency range = 100-18000 Hz
  • resonance frequency fs = 111 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • DC resistance Re = 6,25 Ohm
  • force factor BL = 3,27 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 22,2 cm2
  • effective mechanical mass incl. air load mms = 2 g
  • equivalent volume of compliance Vas = 0,71 l
  • total Q factor Qts = 0,72 (Qms=5,41, Qes=0,83)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,1 mm
  • mounting diameter d = 61,6 mm
  • overall diameter d = 69x69 mm
  • mass m = 0,15 kg
PDF data sheet

show kits to this chassis hide kits

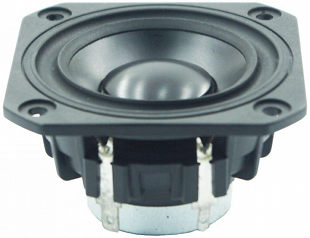

Peerless PLS-P830985 (WB 2,50 FR/04)

order no. ty-PLS-P830985

EUR 38,10 excl. VAT: € 32.02 / $ 34.58

full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 30 W
  • frequency range = 100-15000 Hz
  • resonance frequency fs = 117 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85,4 dB (2,83V; 1m)
  • DC resistance Re = 3,63 Ohm
  • force factor BL = 2,61 N/A
  • voice coil inductance L = 0,03 mH
  • effective piston radiating area Sd = 21,2 cm2
  • effective mechanical mass incl. air load mms = 1,9 g
  • equivalent volume of compliance Vas = 0,61 l
  • total Q factor Qts = 0,63 (Qms=4,08, Qes=0,75)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1,7 mm
  • mounting diameter d = 61,6 mm
  • overall diameter d = 69x69 mm
  • mass m = 0,14 kg
PDF data sheet

show kits to this chassis hide kits

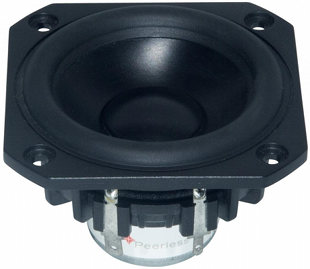

Peerless PLS-P830986 (WB 3,00 LT/08)

order no. ty-PLS-P830986

EUR 45,20 excl. VAT: € 37.98 / $ 41.02

full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 25 W
  • frequency range = 100-15000 Hz
  • resonance frequency fs = 105 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 6,22 Ohm
  • force factor BL = 3,43 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 27,3 cm2
  • effective mechanical mass incl. air load mms = 2,6 g
  • equivalent volume of compliance Vas = 0,94 l
  • total Q factor Qts = 0,76 (Qms=5,15, Qes=0,89)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,1 mm
  • mounting diameter d = 71,9 mm
  • overall diameter d = 78x78 mm
  • mounting depth (not countersunk) t = 46,7 mm
  • mass m = 0,21 kg
PDF data sheet

show kits to this chassis hide kits

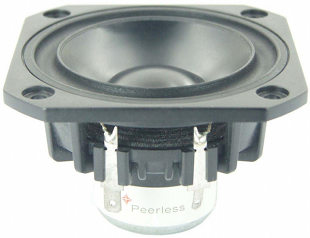

Peerless PLS-P830987 (WB 3,00 FR/08)

order no. ty-PLS-P830987

EUR 39,20 excl. VAT: € 32.94 / $ 35.58

full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 25 W
  • frequency range = 100-20000 Hz
  • resonance frequency fs = 108 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83,6 dB (2,83V; 1m)
  • DC resistance Re = 6,15 Ohm
  • force factor BL = 3 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 28,8 cm2
  • effective mechanical mass incl. air load mms = 2,5 g
  • equivalent volume of compliance Vas = 1,03 l
  • total Q factor Qts = 0,96 (Qms=6,19, Qes=1,14)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,1 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 78x78 mm
  • mounting depth (not countersunk) t = 46,7 mm
  • mass m = 0,22 kg
PDF data sheet

show kits to this chassis hide kits

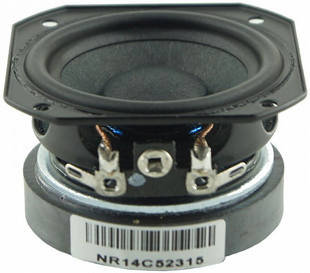

Peerless TC6FD00-04

order no. ty-TC6FD00-04

EUR 15,70 excl. VAT: € 13.19 / $ 14.25

full range driver with high quality cone.

  • power handling (continuous/programme) = 15 W
  • frequency range = 100-25000 Hz
  • resonance frequency fs = 175 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 84,5 dB (2,83V; 1m)
  • DC resistance Re = 3,54 Ohm
  • force factor BL = 1,92 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 15,2 cm2
  • effective mechanical mass incl. air load mms = 1,2 g
  • equivalent volume of compliance Vas = 0,22 l
  • total Q factor Qts = 0,98 (Qms=4,09, Qes=1,29)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 50 mm
  • overall diameter d = 55x55 mm
  • mounting depth (not countersunk) t = 32 mm
  • mass m = 0,17 kg
PDF data sheet

show kits to this chassis hide kits

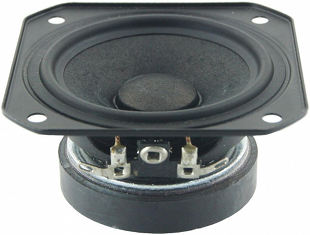

Peerless TC7FD00-04 (7 BN 119-4)

order no. ty-TC7FD00-04

EUR 19,10 excl. VAT: € 16.05 / $ 17.33

full range driver with high quality cone.

  • power handling (continuous/programme) = 20 W
  • frequency range = 100-25000 Hz
  • resonance frequency fs = 143 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86,4 dB (2,83V; 1m)
  • DC resistance Re = 3,22 Ohm
  • force factor BL = 1,97 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 22,1 cm2
  • effective mechanical mass incl. air load mms = 1,6 g
  • equivalent volume of compliance Vas = 0,51 l
  • total Q factor Qts = 0,92 (Qms=3,66, Qes=1,22)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 58,1 mm
  • overall diameter d = 70x70 mm
  • mounting depth (not countersunk) t = 33,3 mm
  • mass m = 0,18 kg
PDF data sheet

show kits to this chassis hide kits

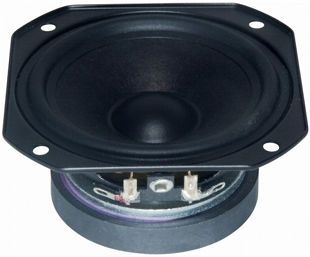

Peerless TC8FD00-04

order no. ty-TC8FD00-04

EUR 19,10 excl. VAT: € 16.05 / $ 17.33

full range driver with high quality cone.

  • power handling (continuous/programme) = 25 W
  • frequency range = 100-16000 Hz
  • resonance frequency fs = 125 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85,7 dB (2,83V; 1m)
  • DC resistance Re = 3,29 Ohm
  • force factor BL = 2,32 N/A
  • voice coil inductance L = 0,03 mH
  • effective piston radiating area Sd = 33,2 cm2
  • effective mechanical mass incl. air load mms = 2,6 g
  • equivalent volume of compliance Vas = 0,99 l
  • total Q factor Qts = 0,92 (Qms=3,7, Qes=1,23)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2,4 mm
  • mounting diameter d = 77,6 mm
  • overall diameter d = 81,3x81,3 mm
  • mounting depth (not countersunk) t = 42 mm
  • mass m = 0,3 kg
PDF data sheet

show kits to this chassis hide kits

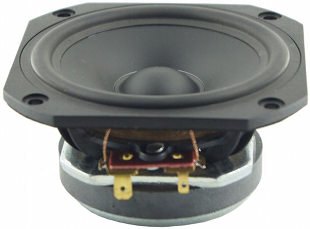

Peerless TC9FD18-08 (9 BN 119-8)

order no. ty-TC9FD-18-08

EUR 25,90 excl. VAT: € 21.76 / $ 23.51

full range driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 100-20000 Hz
  • resonance frequency fs = 125 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84,6 dB (2,83V; 1m)
  • DC resistance Re = 6,32 Ohm
  • force factor BL = 3,01 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 36,3 cm2
  • effective mechanical mass incl. air load mms = 2,4 g
  • equivalent volume of compliance Vas = 1,24 l
  • total Q factor Qts = 0,89 (Qms=2,73, Qes=1,33)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2,6 mm
  • mounting diameter d = 77,9 mm
  • overall diameter d = 84x84 mm
  • mounting depth (not countersunk) t = 38,15 mm
  • mass m = 0,3 kg
PDF data sheet

show kits to this chassis hide kits

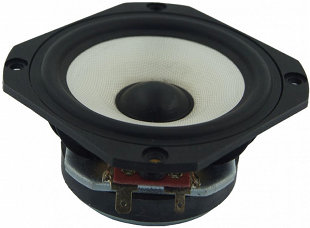

Peerless TG9FD10-04 (9 BG 119-4)

order no. ty-TG9FD-10-04

EUR 29,00 excl. VAT: € 24.37 / $ 26.32

full range driver with glass fibre cone.

  • power handling (continuous/programme) = 10 W
  • frequency range = 100-15000 Hz
  • resonance frequency fs = 113 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87,2 dB (2,83V; 1m)
  • DC resistance Re = 3,25 Ohm
  • force factor BL = 2,4 N/A
  • voice coil inductance L = 0,07 mH
  • effective piston radiating area Sd = 36,3 cm2
  • effective mechanical mass incl. air load mms = 2,8 g
  • equivalent volume of compliance Vas = 1,29 l
  • total Q factor Qts = 0,83 (Qms=3,04, Qes=1,14)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2,6 mm
  • mounting diameter d = 77,9 mm
  • overall diameter d = 84x84 mm
  • mounting depth (not countersunk) t = 38,35 mm
  • mass m = 0,3 kg
PDF data sheet

show kits to this chassis hide kits

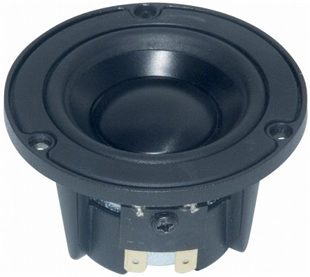

Peerless NE65W-04 (6 NE 125-4)

order no. ty-NE65W-04

EUR 51,51 excl. VAT: € 43.29 / $ 46.75

6 cm full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 25 W
  • frequency range = 150-30000 Hz
  • resonance frequency fs = 166 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85,7 dB (2,83V; 1m)
  • DC resistance Re = 3,66 Ohm
  • force factor BL = 2,85 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 14,7 cm2
  • effective mechanical mass incl. air load mms = 1,6 g
  • equivalent volume of compliance Vas = 0,18 l
  • total Q factor Qts = 0,64 (Qms=5,01, Qes=0,74)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1,7 mm
  • mounting diameter d = 54,4 mm
  • overall diameter d = 65 mm
  • mounting depth (not countersunk) t = 37,3 mm
  • mass m = 0,14 kg
PDF data sheet

show kits to this chassis hide kits

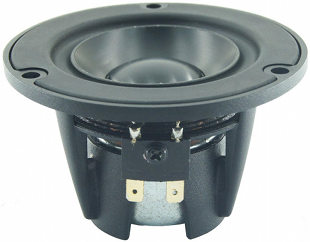

Peerless NE85W-04 (8 NE 125-4)

order no. ty-NE85W-04

EUR 52,20 excl. VAT: € 43.87 / $ 47.37

7 cm full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 25 W
  • frequency range = 100-20000 Hz
  • resonance frequency fs = 105 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 3,65 Ohm
  • force factor BL = 2,75 N/A
  • voice coil inductance L = 0,06 mH
  • effective piston radiating area Sd = 22,3 cm2
  • effective mechanical mass incl. air load mms = 2,2 g
  • equivalent volume of compliance Vas = 0,73 l
  • total Q factor Qts = 0,64 (Qms=8,45, Qes=0,69)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1,8 mm
  • mounting diameter d = 57,12 mm
  • overall diameter d = 85 mm
  • mounting depth (not countersunk) t = 51,3 mm
  • mass m = 0,21 kg
PDF data sheet

show kits to this chassis hide kits

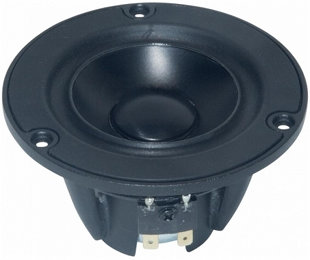

Peerless NE95W-04 (9 NE 125-4)

order no. ty-NE95W-04

EUR 57,90 excl. VAT: € 48.66 / $ 52.55

8 cm full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 25 W
  • frequency range = 100-15000 Hz
  • resonance frequency fs = 103 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 3,67 Ohm
  • force factor BL = 2,76 N/A
  • voice coil inductance L = 0,06 mH
  • effective piston radiating area Sd = 28,6 cm2
  • effective mechanical mass incl. air load mms = 2,5 g
  • equivalent volume of compliance Vas = 1,11 l
  • total Q factor Qts = 0,72 (Qms=9,88, Qes=0,78)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1,8 mm
  • mounting diameter d = 64,7 mm
  • overall diameter d = 95 mm
  • mounting depth (not countersunk) t = 53,7 mm
  • mass m = 0,24 kg
PDF data sheet

show kits to this chassis hide kits




Woofer

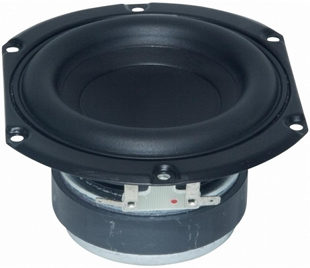

Peerless SDS-P830855 (SDS 4-25/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,2 L volume
from 113/72 Hz (-3dB/-8dB)

recommended cabinet 2:
4,9 L volume bass reflex cabinet
with HP35 reflex tube, 13 cm long.
from 54/45 Hz (-3dB/-8dB).

Peerless SDS-P830855 (SDS 4-25/08)

order no. ty-SDS-P830855

EUR 36,10 excl. VAT: € 30.34 / $ 32.76

11 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 60-4000 Hz
  • resonance frequency fs = 63,3 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84,8 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 5,58 N/A
  • voice coil inductance L = 0,24 mH
  • effective piston radiating area Sd = 50,3 cm2
  • effective mechanical mass incl. air load mms = 6,9 g
  • equivalent volume of compliance Vas = 3,28 l
  • total Q factor Qts = 0,44 (Qms=4,66, Qes=0,49)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 92,5 mm
  • overall diameter d = 123,3 mm
  • mounting depth (not countersunk) t = 54,5 mm
  • mass m = 0,74 kg
PDF data sheet

show kits to this chassis hide kits

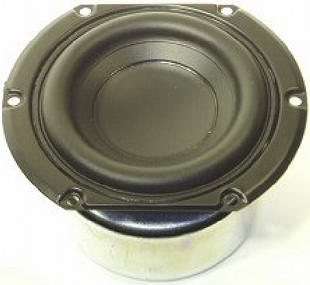

Peerless SDS-P830856 (SDS 106TV)
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,65 L volume
from 143/90 Hz (-3dB/-8dB)

recommended cabinet 2:
2,2 L volume bass reflex cabinet
with HP35 reflex tube, 20 cm long.
from 74/58 Hz (-3dB/-8dB).

Peerless SDS-P830856 (SDS 106TV)

order no. ty-830856

- not available

11 cm bass-midrange driver with paper cone. The driver is magnetically shielded.

  • frequency range = 60-3000 Hz
  • resonance frequency fs = 62,4 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,7 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 6,2 N/A
  • voice coil inductance L = 0,9 mH
  • effective piston radiating area Sd = 49 cm2
  • effective mechanical mass incl. air load mms = 6,6 g
  • equivalent volume of compliance Vas = 3,3 l
  • total Q factor Qts = 0,35 (Qms=3,8, Qes=0,38)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 124 mm
  • mounting depth (not countersunk) t = 65,8 mm
PDF data sheet

show kits to this chassis hide kits

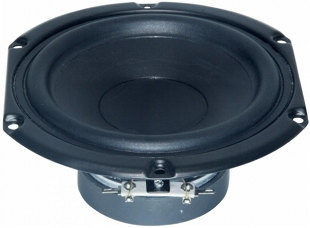

Peerless SDS-P830656 (SDS-5-25/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,3 L volume
from 78/49 Hz (-3dB/-8dB)

recommended cabinet 2:
32 L volume bass reflex cabinet
with HP70 reflex tube, 15 cm long.
from 35/31 Hz (-3dB/-8dB).

Peerless SDS-P830656 (SDS-5-25/08)

order no. ty-SDS-P830656

EUR 29,00 excl. VAT: € 24.37 / $ 26.32

14 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 60-5000 Hz
  • resonance frequency fs = 57 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,7 dB (2,83V; 1m)
  • DC resistance Re = 6,06 Ohm
  • force factor BL = 5,36 N/A
  • voice coil inductance L = 0,37 mH
  • effective piston radiating area Sd = 86,6 cm2
  • effective mechanical mass incl. air load mms = 9,3 g
  • equivalent volume of compliance Vas = 8,77 l
  • total Q factor Qts = 0,59 (Qms=3,6, Qes=0,7)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 117 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 58,4 mm
  • mass m = 0,68 kg
PDF data sheet

show kits to this chassis hide kits

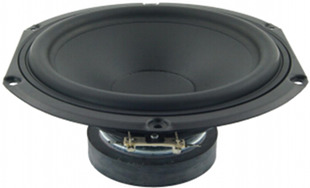

Peerless SDS-P830657 (SDS 6-25/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 12,4 L volume
from 79/50 Hz (-3dB/-8dB)

recommended cabinet 2:
50 L volume bass reflex cabinet
with HP70 reflex tube, 8 cm long.
from 37/31 Hz (-3dB/-8dB).

Peerless SDS-P830657 (SDS 6-25/08)

order no. ty-SDS-P830657

- not available

16 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 60-3000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,5 dB (2,83V; 1m)
  • DC resistance Re = 6,05 Ohm
  • force factor BL = 5,98 N/A
  • voice coil inductance L = 0,38 mH
  • effective piston radiating area Sd = 141 cm2
  • effective mechanical mass incl. air load mms = 11,5 g
  • equivalent volume of compliance Vas = 30,8 l
  • total Q factor Qts = 0,46 (Qms=2,74, Qes=0,55)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 144 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 72,1 mm
  • mass m = 0,84 kg
PDF data sheet

show kits to this chassis hide kits

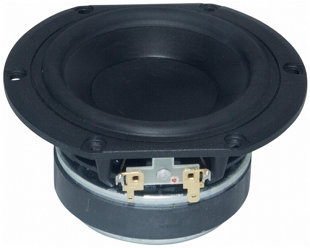

Peerless HDS-P830870 (HDS-PPB 4-25/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,5 L volume
from 136/86 Hz (-3dB/-8dB)

recommended cabinet 2:
6,2 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 62/53 Hz (-3dB/-8dB).

Peerless HDS-P830870 (HDS-PPB 4-25/08)

order no. ty-HDS-P830870

on request

11 cm bass-midrange driver with polypropylene cone.

  • power handling (continuous/programme) = 25 W
  • frequency range = 80-7000 Hz
  • resonance frequency fs = 91 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,9 dB (2,83V; 1m)
  • DC resistance Re = 5,17 Ohm
  • force factor BL = 4,94 N/A
  • voice coil inductance L = 0,16 mH
  • effective piston radiating area Sd = 56,8 cm2
  • effective mechanical mass incl. air load mms = 6,1 g
  • equivalent volume of compliance Vas = 2,28 l
  • total Q factor Qts = 0,53 (Qms=1,92, Qes=0,74)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 94,8 mm
  • overall diameter d = 120,4 mm
  • mounting depth (not countersunk) t = 55,3 mm
  • mass m = 0,92 kg
PDF data sheet

show kits to this chassis hide kits

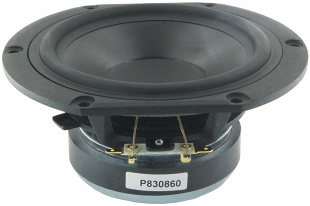

Peerless HDS-P830860 (HDS-PPB 5-25/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,6 L volume
from 106/67 Hz (-3dB/-8dB)

recommended cabinet 2:
14,6 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 50/42 Hz (-3dB/-8dB).

Peerless HDS-P830860 (HDS-PPB 5-25/08)

order no. ty-HDS-P830860

on request

10 cm bass-midrange driver with polypropylene cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 50-6000 Hz
  • resonance frequency fs = 62 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 5,9 N/A
  • voice coil inductance L = 0,27 mH
  • effective piston radiating area Sd = 89,9 cm2
  • effective mechanical mass incl. air load mms = 9 g
  • equivalent volume of compliance Vas = 8,41 l
  • total Q factor Qts = 0,47 (Qms=2,21, Qes=0,59)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • overall diameter d = 151,8 mm
  • mounting depth (not countersunk) t = 61,3 mm
  • mass m = 1,06 kg
PDF data sheet

show kits to this chassis hide kits

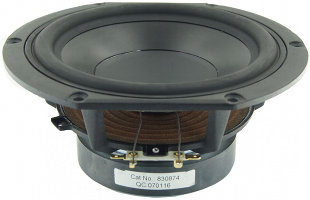

Peerless HDS-P830874 (HDS-PPB 6-33/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,2 L volume
from 109/69 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP70 reflex tube, 16 cm long.
from 53/43 Hz (-3dB/-8dB).

Peerless HDS-P830874 (HDS-PPB 6-33/08)

order no. ty-HDS-P830874

on request

16 cm bass-midrange driver with polypropylene cone.

  • power handling (continuous/programme) = 75 W
  • frequency range = 50-4000 Hz
  • resonance frequency fs = 58 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,4 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 8,82 N/A
  • voice coil inductance L = 0,42 mH
  • effective piston radiating area Sd = 143,1 cm2
  • effective mechanical mass incl. air load mms = 17,3 g
  • equivalent volume of compliance Vas = 12,5 l
  • total Q factor Qts = 0,43 (Qms=2,29, Qes=0,53)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 5,3 mm
  • mounting diameter d = 145,2 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 78 mm
  • mass m = 1,58 kg
PDF data sheet

show kits to this chassis hide kits

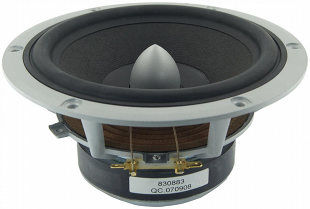

Peerless HDS-P830883 (HDS-E 6-33/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,5 L volume
from 91/57 Hz (-3dB/-8dB)

recommended cabinet 2:
20 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 46/37 Hz (-3dB/-8dB).

Peerless HDS-P830883 (HDS-E 6-33/08)

order no. ty-HDS-P830883

on request

16 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 70 W
  • frequency range = 40-3000 Hz
  • resonance frequency fs = 43 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 5,85 Ohm
  • force factor BL = 7,7 N/A
  • voice coil inductance L = 0,18 mH
  • effective piston radiating area Sd = 143,1 cm2
  • effective mechanical mass incl. air load mms = 17,3 g
  • equivalent volume of compliance Vas = 22,9 l
  • total Q factor Qts = 0,38 (Qms=2,18, Qes=0,46)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 5,6 mm
  • mounting diameter d = 146 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 78 mm
  • mass m = 1,64 kg
PDF data sheet

show kits to this chassis hide kits

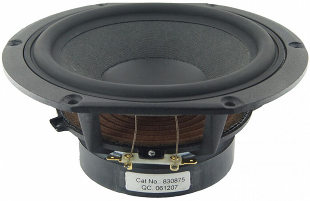

Peerless HDS-P830875 (HDS-N 6-33/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,9 L volume
from 100/63 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 51/40 Hz (-3dB/-8dB).

Peerless HDS-P830875 (HDS-N 6-33/08)

order no. ty-HDS-P830875

on request

16 cm bass-midrange driver with high quality cone.

  • power handling (continuous/programme) = 75 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 46 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6,37 Ohm
  • force factor BL = 8,47 N/A
  • voice coil inductance L = 0,41 mH
  • effective piston radiating area Sd = 143,1 cm2
  • effective mechanical mass incl. air load mms = 15,9 g
  • equivalent volume of compliance Vas = 21,8 l
  • total Q factor Qts = 0,36 (Qms=3,19, Qes=0,41)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 5,3 mm
  • mounting diameter d = 145,2 mm
  • overall diameter d = 182,3 mm
  • mounting depth (not countersunk) t = 78 mm
  • mass m = 1,56 kg
PDF data sheet

show kits to this chassis hide kits

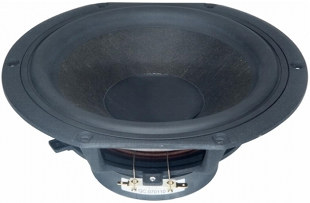

Peerless HDS-P830869 (HDS-N 8-33/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 13 L volume
from 76/48 Hz (-3dB/-8dB)

recommended cabinet 2:
39 L volume bass reflex cabinet
with HP100 reflex tube, 32 cm long.
from 42/32 Hz (-3dB/-8dB).

Peerless HDS-P830869 (HDS-N 8-33/08)

order no. ty-HDS-P830869

on request

21 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 30-1500 Hz
  • resonance frequency fs = 29,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,3 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 8,92 N/A
  • voice coil inductance L = 0,63 mH
  • effective piston radiating area Sd = 227 cm2
  • effective mechanical mass incl. air load mms = 24 g
  • equivalent volume of compliance Vas = 87,41 l
  • total Q factor Qts = 0,31 (Qms=4,4, Qes=0,33)
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 190 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 89,5 mm
  • mass m = 1,74 kg
PDF data sheet

show kits to this chassis hide kits

Peerless HDS-P835023 (HDS-AL 4-25/08)

order no. ty-HDS-P835023

- not available

11 cm bass-midrange driver with aluminium cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 70-5000 Hz
  • resonance frequency fs = 82 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 5,32 Ohm
  • force factor BL = 5,01 N/A
  • voice coil inductance L = 0,26 mH
  • effective piston radiating area Sd = 56,8 cm2
  • effective mechanical mass incl. air load mms = 7,3 g
  • equivalent volume of compliance Vas = 2,33 l
  • total Q factor Qts = 0,62 (Qms=2,81, Qes=0,8)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3,1 mm
  • mounting diameter d = 94,8 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 55,3 mm
  • mass m = 0,91 kg
PDF data sheet

show kits to this chassis hide kits

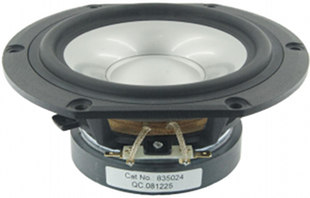

Peerless HDS-P835024 (HDS-AL 5-25/08)

order no. ty-HDS-P835024

EUR 92,10 excl. VAT: € 77.39 / $ 83.59

10 cm bass-midrange driver with aluminium cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 60-6000 Hz
  • resonance frequency fs = 72 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 5,91 Ohm
  • force factor BL = 5,88 N/A
  • voice coil inductance L = 0,24 mH
  • effective piston radiating area Sd = 91,6 cm2
  • effective mechanical mass incl. air load mms = 10,6 g
  • equivalent volume of compliance Vas = 5,39 l
  • total Q factor Qts = 0,65 (Qms=3,18, Qes=0,82)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • overall diameter d = 151,8 mm
  • mounting depth (not countersunk) t = 61,3 mm
  • mass m = 1,06 kg
PDF data sheet

show kits to this chassis hide kits

Peerless HDS-P830992 (HDS-GFP 4-25/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,3 L volume
from 122/77 Hz (-3dB/-8dB)

recommended cabinet 2:
8,8 L volume bass reflex cabinet
with HP50 reflex tube, 12 cm long.
from 54/48 Hz (-3dB/-8dB).

Peerless HDS-P830992 (HDS-GFP 4-25/08)

order no. ty-HDS-P830992

EUR 59,20 excl. VAT: € 49.75 / $ 53.73

11 cm bass-midrange driver with glass fibre cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 70-4000 Hz
  • resonance frequency fs = 89 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 5,25 Ohm
  • force factor BL = 4,91 N/A
  • voice coil inductance L = 0,24 mH
  • effective piston radiating area Sd = 56,1 cm2
  • effective mechanical mass incl. air load mms = 5,9 g
  • equivalent volume of compliance Vas = 2,41 l
  • total Q factor Qts = 0,58 (Qms=2,95, Qes=0,72)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 94,8 mm
  • overall diameter d = 120,4 mm
  • mounting depth (not countersunk) t = 55,3 mm
  • mass m = 0,91 kg
PDF data sheet

show kits to this chassis hide kits

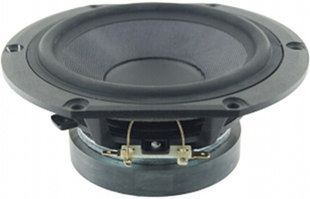

Peerless HDS-P830991 (HDS-GFP 5-25/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,3 L volume
from 109/69 Hz (-3dB/-8dB)

recommended cabinet 2:
13,5 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 51/43 Hz (-3dB/-8dB).

Peerless HDS-P830991 (HDS-GFP 5-25/08)

order no. ty-HDS-P830991

on request

10 cm bass-midrange driver with glass fibre cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 60-6000 Hz
  • resonance frequency fs = 66 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5,99 Ohm
  • force factor BL = 6,42 N/A
  • voice coil inductance L = 0,33 mH
  • effective piston radiating area Sd = 89,9 cm2
  • effective mechanical mass incl. air load mms = 9,7 g
  • equivalent volume of compliance Vas = 6,81 l
  • total Q factor Qts = 0,48 (Qms=2,96, Qes=0,58)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 4,6 mm
  • overall diameter d = 151,8 mm
  • mounting depth (not countersunk) t = 61,3 mm
  • mass m = 1,05 kg
PDF data sheet

show kits to this chassis hide kits

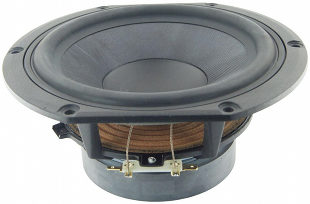

Peerless HDS-P830990 (HDS-GFP 6/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,2 L volume
from 95/60 Hz (-3dB/-8dB)

recommended cabinet 2:
19 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 48/38 Hz (-3dB/-8dB).

Peerless HDS-P830990 (HDS-GFP 6/08)

order no. ty-HDS-P830990

on request

16 cm bass-midrange driver with glass fibre cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 46 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,4 dB (2,83V; 1m)
  • DC resistance Re = 6,23 Ohm
  • force factor BL = 8,32 N/A
  • voice coil inductance L = 0,42 mH
  • effective piston radiating area Sd = 143,1 cm2
  • effective mechanical mass incl. air load mms = 17 g
  • equivalent volume of compliance Vas = 20,09 l
  • total Q factor Qts = 0,39 (Qms=3,12, Qes=0,44)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 5,3 mm
  • mounting diameter d = 145,2 mm
  • overall diameter d = 182,3 mm
  • mounting depth (not countersunk) t = 78 mm
  • mass m = 1,58 kg
PDF data sheet

show kits to this chassis hide kits

Peerless SLS-85S25CP04-04
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,29 L volume
from 163/103 Hz (-3dB/-8dB)

recommended cabinet 2:
1 L volume bass reflex cabinet
with HP35 reflex tube, 35 cm long.
from 84/66 Hz (-3dB/-8dB).

Peerless SLS-85S25CP04-04

order no. ty-SLS-85S25CP04-04

EUR 40,90 excl. VAT: € 34.37 / $ 37.12

9 cm bass driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 70-2000 Hz
  • resonance frequency fs = 73 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 3,18 Ohm
  • force factor BL = 4,31 N/A
  • voice coil inductance L = 0,16 mH
  • effective piston radiating area Sd = 30,8 cm2
  • effective mechanical mass incl. air load mms = 4,7 g
  • equivalent volume of compliance Vas = 1,39 l
  • total Q factor Qts = 0,35 (Qms=5,38, Qes=0,37)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 75,4 mm
  • overall diameter d = 105 mm
  • mounting depth (not countersunk) t = 69,7 mm
  • mass m = 0,88 kg
PDF data sheet

show kits to this chassis hide kits

Peerless SLS-85S25CP04-08
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,43 L volume
from 145/92 Hz (-3dB/-8dB)

recommended cabinet 2:
1,6 L volume bass reflex cabinet
with HP35 reflex tube, 26 cm long.
from 72/58 Hz (-3dB/-8dB).

Peerless SLS-85S25CP04-08

order no. ty-SLS-85S25CP04-08

- not available

9 cm bass driver with paper cone.

  • power handling (continuous/programme) = 25 W
  • frequency range = 70-2000 Hz
  • resonance frequency fs = 74 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • DC resistance Re = 6,43 Ohm
  • force factor BL = 5,4 N/A
  • voice coil inductance L = 0,27 mH
  • effective piston radiating area Sd = 30,8 cm2
  • effective mechanical mass incl. air load mms = 4,3 g
  • equivalent volume of compliance Vas = 1,48 l
  • total Q factor Qts = 0,4 (Qms=4,95, Qes=0,44)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 75,4 mm
  • overall diameter d = 105 mm
  • mounting depth (not countersunk) t = 69,7 mm
  • mass m = 0,88 kg
PDF data sheet

show kits to this chassis hide kits

Peerless NE123W-08
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,2 L volume
from 140/88 Hz (-3dB/-8dB)

recommended cabinet 2:
3,9 L volume bass reflex cabinet
with HP35 reflex tube, 11 cm long.
from 73/57 Hz (-3dB/-8dB).

Peerless NE123W-08

order no. ty-NE123W-08

EUR 129,00 excl. VAT: € 108.40 / $ 117.08

11 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 45 W
  • frequency range = 60-10000 Hz
  • resonance frequency fs = 61 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,27 Ohm
  • force factor BL = 5,53 N/A
  • voice coil inductance L = 0,06 mH
  • effective piston radiating area Sd = 54,1 cm2
  • effective mechanical mass incl. air load mms = 4,7 g
  • equivalent volume of compliance Vas = 5,89 l
  • total Q factor Qts = 0,34 (Qms=4,98, Qes=0,37)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,2 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 56,3 mm
  • mass m = 0,41 kg
PDF data sheet

show kits to this chassis hide kits

Peerless NE149W-08 (14NE240/8)
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,1 L volume
from 114/72 Hz (-3dB/-8dB)

recommended cabinet 2:
7,4 L volume bass reflex cabinet
with HP50 reflex tube, 18 cm long.
from 58/46 Hz (-3dB/-8dB).

Peerless NE149W-08 (14NE240/8)

order no. ty-NE149W-08

EUR 189,00 excl. VAT: € 158.82 / $ 171.53

13 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 50-6000 Hz
  • resonance frequency fs = 54 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,33 Ohm
  • force factor BL = 7,42 N/A
  • voice coil inductance L = 0,08 mH
  • effective piston radiating area Sd = 85 cm2
  • effective mechanical mass incl. air load mms = 10,3 g
  • equivalent volume of compliance Vas = 8,54 l
  • total Q factor Qts = 0,38 (Qms=8,19, Qes=0,4)
  • voice coil diameter = 38,44 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 115,7 mm
  • overall diameter d = 149 mm
  • mounting depth (not countersunk) t = 81 mm
  • mass m = 0,68 kg
PDF data sheet

show kits to this chassis hide kits

Peerless NE180W-08 (18NE340/8)
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,9 L volume
from 87/55 Hz (-3dB/-8dB)

recommended cabinet 2:
21 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 43/35 Hz (-3dB/-8dB).

Peerless NE180W-08 (18NE340/8)

order no. ty-NE180W-08

EUR 190,00 excl. VAT: € 159.66 / $ 172.44

16 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,24 Ohm
  • force factor BL = 8,17 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 136,9 cm2
  • effective mechanical mass incl. air load mms = 16,4 g
  • equivalent volume of compliance Vas = 22,72 l
  • total Q factor Qts = 0,39 (Qms=7,41, Qes=0,41)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 148,5 mm
  • overall diameter d = 179,8 mm
  • mounting depth (not countersunk) t = 82,3 mm
  • mass m = 2,08 kg
PDF data sheet

show kits to this chassis hide kits

Peerless BC18WG59-04

order no. ty-BC18WG59-04

- not available

16 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 56 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,02 Ohm
  • force factor BL = 4,23 N/A
  • voice coil inductance L = 0,16 mH
  • effective piston radiating area Sd = 138,9 cm2
  • effective mechanical mass incl. air load mms = 12,4 g
  • equivalent volume of compliance Vas = 17,53 l
  • total Q factor Qts = 0,6 (Qms=3,04, Qes=0,74)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3,8 mm
  • mounting diameter d = 147 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 66,6 mm
  • mass m = 0,7 kg
PDF data sheet

show kits to this chassis hide kits

Peerless GBS-135F25AL02-04

order no. ty-GBS-135F25AL02-04

EUR 49,20 excl. VAT: € 41.34 / $ 44.65

14 cm bass-midrange driver with aluminium cone.

  • power handling (continuous/programme) = 35 W
  • frequency range = 60-2000 Hz
  • resonance frequency fs = 63 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3,28 Ohm
  • force factor BL = 4,91 N/A
  • voice coil inductance L = 0,21 mH
  • effective piston radiating area Sd = 85,7 cm2
  • effective mechanical mass incl. air load mms = 12,3 g
  • equivalent volume of compliance Vas = 5,35 l
  • total Q factor Qts = 0,57 (Qms=4,12, Qes=0,66)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3,3 mm
  • mounting diameter d = 119 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 27,4 mm
  • mass m = 0,8 kg
PDF data sheet

show kits to this chassis hide kits

Peerless FSL-0512R01-08
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,2 L volume
from 185/117 Hz (-3dB/-8dB)

recommended cabinet 2:
9,1 L volume bass reflex cabinet
with HP70 reflex tube, 8 cm long.
from 87/73 Hz (-3dB/-8dB).

Peerless FSL-0512R01-08

order no. ty-FSL-0512R01-08

- not available

14 cm midrange driver with paper cone.

  • power handling (continuous/programme) = 90 W
  • frequency range = 100-5000 Hz
  • resonance frequency fs = 108 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91,4 dB (2,83V; 1m)
  • DC resistance Re = 5,71 Ohm
  • force factor BL = 6,23 N/A
  • voice coil inductance L = 0,23 mH
  • effective piston radiating area Sd = 105,7 cm2
  • effective mechanical mass incl. air load mms = 6,5 g
  • equivalent volume of compliance Vas = 5,23 l
  • total Q factor Qts = 0,47 (Qms=1,65, Qes=0,65)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 3,9 mm
  • mounting diameter d = 125 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 61,5 mm
  • mass m = 0,94 kg
PDF data sheet

show kits to this chassis hide kits

Peerless FSL-0615R02-08
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,4 L volume
from 157/99 Hz (-3dB/-8dB)

recommended cabinet 2:
12,9 L volume bass reflex cabinet
with HP70 reflex tube, 8 cm long.
from 77/62 Hz (-3dB/-8dB).

Peerless FSL-0615R02-08

order no. ty-FSL-0615R02-08

- not available

16 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 80-3000 Hz
  • resonance frequency fs = 79,8 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93,6 dB (2,83V; 1m)
  • DC resistance Re = 5,14 Ohm
  • force factor BL = 7,37 N/A
  • voice coil inductance L = 0,34 mH
  • effective piston radiating area Sd = 143,1 cm2
  • effective mechanical mass incl. air load mms = 9,9 g
  • equivalent volume of compliance Vas = 11,61 l
  • total Q factor Qts = 0,41 (Qms=2,95, Qes=0,47)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 2,6 mm
  • mounting diameter d = 146 mm
  • overall diameter d = 174,2 mm
  • mounting depth (not countersunk) t = 76,7 mm
  • mass m = 1,48 kg
PDF data sheet

show kits to this chassis hide kits




Subwoofer

Peerless SLS-P830946 (SLS 6-39/04)
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,5 L volume
from 91/57 Hz (-3dB/-8dB)

recommended cabinet 2:
8,9 L volume bass reflex cabinet
with HP50 reflex tube, 25 cm long.
from 47/37 Hz (-3dB/-8dB).

Peerless SLS-P830946 (SLS 6-39/04)

order no. ty-SLS-P830946

on request

17 cm bass driver with paper cone.

  • power handling (continuous/programme) = 75 W
  • frequency range = 40-500 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86,7 dB (2,83V; 1m)
  • DC resistance Re = 2,73 Ohm
  • force factor BL = 7,6 N/A
  • voice coil inductance L = 0,65 mH
  • effective piston radiating area Sd = 123,5 cm2
  • effective mechanical mass incl. air load mms = 30,5 g
  • equivalent volume of compliance Vas = 11,2 l
  • total Q factor Qts = 0,35 (Qms=4,92, Qes=0,38)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 8,2 mm
  • mounting diameter d = 146 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 83 mm
  • mass m = 2,4 kg
PDF data sheet

show kits to this chassis hide kits

Peerless SLS-P830667 (SLS 8-39/08)

order no. ty-SLS-P830667

EUR 79,30 excl. VAT: € 66.64 / $ 71.97

20 cm bass driver with paper cone.

  • power handling (continuous/programme) = 90 W
  • frequency range = 30-800 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,7 dB (2,83V; 1m)
  • DC resistance Re = 5,53 Ohm
  • force factor BL = 8,26 N/A
  • voice coil inductance L = 0,78 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 34,8 g
  • equivalent volume of compliance Vas = 26,27 l
  • total Q factor Qts = 0,66 (Qms=5,73, Qes=0,75)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 8,4 mm
  • mounting diameter d = 177 mm
  • overall diameter d = 213 mm
  • mounting depth (not countersunk) t = 101,2 mm
  • mass m = 2,52 kg
PDF data sheet

show kits to this chassis hide kits

Peerless SLS-P830668  (SLS 10-39/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 52 L volume
from 48/30 Hz (-3dB/-8dB)

recommended cabinet 2:
211 L volume bass reflex cabinet
with HP100 reflex tube, 11 cm long.
from 22/19 Hz (-3dB/-8dB).

Peerless SLS-P830668 (SLS 10-39/08)

order no. ty-SLS-P830668

EUR 98,40 excl. VAT: € 82.69 / $ 89.30

24 cm bass driver with paper cone.

  • power handling (continuous/programme) = 70 W
  • frequency range = 30-1000 Hz
  • resonance frequency fs = 32,4 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,9 dB (2,83V; 1m)
  • DC resistance Re = 5,61 Ohm
  • force factor BL = 10,42 N/A
  • voice coil inductance L = 1,37 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 56,3 g
  • equivalent volume of compliance Vas = 72,9 l
  • total Q factor Qts = 0,55 (Qms=7,15, Qes=0,59)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 8,3 mm
  • mounting diameter d = 223 mm
  • overall diameter d = 262,3 mm
  • mounting depth (not countersunk) t = 126,3 mm
  • mass m = 2,7 kg
PDF data sheet

show kits to this chassis hide kits

Peerless SLS-P830669 (SLS 12-39/08)
open a bigger photo

recommended cabinet 1:
closed cabinet with 89 L volume
from 47/30 Hz (-3dB/-8dB)

recommended cabinet 2:
362 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 21/18 Hz (-3dB/-8dB).

Peerless SLS-P830669 (SLS 12-39/08)

order no. ty-SLS-P830669

on request

30 cm bass driver with paper cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 30-1000 Hz
  • resonance frequency fs = 31,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 11,88 N/A
  • voice coil inductance L = 1,12 mH
  • effective piston radiating area Sd = 522,8 cm2
  • effective mechanical mass incl. air load mms = 74,1 g
  • equivalent volume of compliance Vas = 132,42 l
  • total Q factor Qts = 0,54 (Qms=7,07, Qes=0,58)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 8,3 mm
  • mounting diameter d = 277 mm
  • overall diameter d = 314 mm
  • mounting depth (not countersunk) t = 139,8 mm
  • mass m = 3,24 kg
PDF data sheet

show kits to this chassis hide kits

Peerless SBS-200F35AL01-04

order no. ty-SBS-200F35AL01-04

on request

15 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 200 W
  • frequency range = 30-500 Hz
  • resonance frequency fs = 44 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 84,1 dB (2,83V; 1m)
  • DC resistance Re = 3,97 Ohm
  • force factor BL = 10 N/A
  • voice coil inductance L = 0,96 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 70,4 g
  • equivalent volume of compliance Vas = 11,78 l
  • total Q factor Qts = 0,7 (Qms=6,38, Qes=0,78)
  • voice coil diameter = 35,55 mm
  • maximum peak linear excursion vibration xlin = +/- 9,1 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 113,6 mm
  • mass m = 2,18 kg
PDF data sheet

show kits to this chassis hide kits

Peerless SBS-250F38AL01-04
open a bigger photo

recommended cabinet 1:
closed cabinet with 14,7 L volume
from 51/32 Hz (-3dB/-8dB)

recommended cabinet 2:
60 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 24/20 Hz (-3dB/-8dB).

Peerless SBS-250F38AL01-04

order no. ty-SBS-250F38AL01-04

- not available

25 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 250 W
  • frequency range = 30-500 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85,2 dB (2,83V; 1m)
  • DC resistance Re = 2,1 Ohm
  • force factor BL = 9,9 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 314,2 cm2
  • effective mechanical mass incl. air load mms = 126,12 g
  • equivalent volume of compliance Vas = 24,9 l
  • total Q factor Qts = 0,49 (Qms=4,2, Qes=0,56)
  • voice coil diameter = 38,75 mm
  • maximum peak linear excursion vibration xlin = +/- 7,4 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 261 mm
  • mounting depth (not countersunk) t = 133,8 mm
  • mass m = 3,16 kg
PDF data sheet

show kits to this chassis hide kits

Peerless XXLS-P835016 (XXLS-AL 10/04)
open a bigger photo

recommended cabinet 1:
closed cabinet with 16 L volume
from 55/35 Hz (-3dB/-8dB)

recommended cabinet 2:
57 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 28/22 Hz (-3dB/-8dB).

Peerless XXLS-P835016 (XXLS-AL 10/04)

order no. ty-XXLS-P835016

on request

25 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 25-800 Hz
  • resonance frequency fs = 26 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 2,46 Ohm
  • force factor BL = 10,36 N/A
  • voice coil inductance L = 0,51 mH
  • effective piston radiating area Sd = 356,3 cm2
  • effective mechanical mass incl. air load mms = 102,1 g
  • equivalent volume of compliance Vas = 65 l
  • total Q factor Qts = 0,37 (Qms=11,27, Qes=0,38)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 12,3 mm
  • mounting diameter d = 239 mm
  • overall diameter d = 269,2 mm
  • mounting depth (not countersunk) t = 135,1 mm
  • mass m = 6,14 kg
PDF data sheet

show kits to this chassis hide kits

Peerless XXLS-P835017 (XXLS-AL 12/04)
open a bigger photo

recommended cabinet 1:
closed cabinet with 37 L volume
from 43/27 Hz (-3dB/-8dB)

recommended cabinet 2:
140 L volume bass reflex cabinet
with HP100 reflex tube, 26 cm long.
from 22/17 Hz (-3dB/-8dB).

Peerless XXLS-P835017 (XXLS-AL 12/04)

order no. ty-XXLS-P835017

EUR 329,00 excl. VAT: € 276.47 / $ 298.59

29 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 120 W
  • frequency range = 20-800 Hz
  • resonance frequency fs = 21,6 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,6 dB (2,83V; 1m)
  • DC resistance Re = 2,51 Ohm
  • force factor BL = 10,58 N/A
  • voice coil inductance L = 0,53 mH
  • effective piston radiating area Sd = 483,1 cm2
  • effective mechanical mass incl. air load mms = 131,4 g
  • equivalent volume of compliance Vas = 136 l
  • total Q factor Qts = 0,39 (Qms=10,83, Qes=0,4)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 12,3 mm
  • mounting diameter d = 277 mm
  • overall diameter d = 307,9 mm
  • mounting depth (not countersunk) t = 144 mm
  • mass m = 6,4 kg
PDF data sheet

show kits to this chassis hide kits

Peerless NE225W-08
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,6 L volume
from 78/49 Hz (-3dB/-8dB)

recommended cabinet 2:
28 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 41/32 Hz (-3dB/-8dB).

Peerless NE225W-08

order no. ty-NE225W-08

on request

21 cm bass driver with paper cone.

  • power handling (continuous/programme) = 160 W
  • frequency range = 30-15000 Hz
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,6 dB (2,83V; 1m)
  • DC resistance Re = 6,32 Ohm
  • force factor BL = 11,52 N/A
  • voice coil inductance L = 0,21 mH
  • effective piston radiating area Sd = 227 cm2
  • effective mechanical mass incl. air load mms = 35,9 g
  • equivalent volume of compliance Vas = 50,16 l
  • total Q factor Qts = 0,33 (Qms=8,84, Qes=0,34)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 7,7 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 107 mm
  • mass m = 1,84 kg
PDF data sheet

show kits to this chassis hide kits

Peerless NE265W-04
open a bigger photo

recommended cabinet 1:
closed cabinet with 10,8 L volume
from 59/37 Hz (-3dB/-8dB)

recommended cabinet 2:
33 L volume bass reflex cabinet
with HP70 reflex tube, 31 cm long.
from 32/25 Hz (-3dB/-8dB).

Peerless NE265W-04

order no. ty-NE265W-04

- not available

25 cm bass driver with paper cone.

  • power handling (continuous/programme) = 150 W
  • frequency range = 20-800 Hz
  • resonance frequency fs = 23 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 2,86 Ohm
  • force factor BL = 11,74 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 330,1 cm2
  • effective mechanical mass incl. air load mms = 98,2 g
  • equivalent volume of compliance Vas = 72,83 l
  • total Q factor Qts = 0,29 (Qms=13,77, Qes=0,3)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 235 mm
  • overall diameter d = 265 mm
  • mounting depth (not countersunk) t = 125,5 mm
  • mass m = 2,24 kg
PDF data sheet

show kits to this chassis hide kits

Peerless NE265W-08
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,4 L volume
from 61/39 Hz (-3dB/-8dB)

recommended cabinet 2:
39 L volume bass reflex cabinet
with HP70 reflex tube, 23 cm long.
from 34/26 Hz (-3dB/-8dB).

Peerless NE265W-08

order no. ty-NE265W-08

EUR 340,00 excl. VAT: € 285.71 / $ 308.57

25 cm bass driver with paper cone.

  • power handling (continuous/programme) = 190 W
  • frequency range = 20-800 Hz
  • resonance frequency fs = 23 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 6,24 Ohm
  • force factor BL = 14,7 N/A
  • voice coil inductance L = 0,53 mH
  • effective piston radiating area Sd = 326,9 cm2
  • effective mechanical mass incl. air load mms = 74,1 g
  • equivalent volume of compliance Vas = 97,21 l
  • total Q factor Qts = 0,3 (Qms=10,33, Qes=0,31)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 9,4 mm
  • mounting diameter d = 235 mm
  • overall diameter d = 265 mm
  • mounting depth (not countersunk) t = 125,5 mm
  • mass m = 2,27 kg
PDF data sheet

show kits to this chassis hide kits

Peerless NE315W-04
open a bigger photo

recommended cabinet 1:
closed cabinet with 35 L volume
from 48/31 Hz (-3dB/-8dB)

recommended cabinet 2:
111 L volume bass reflex cabinet
with HP100 reflex tube, 27 cm long.
from 26/20 Hz (-3dB/-8dB).

Peerless NE315W-04

order no. ty-NE315W-04

EUR 392,00 excl. VAT: € 329.41 / $ 355.76

30 cm bass driver with paper cone.

  • power handling (continuous/programme) = 150 W
  • frequency range = 20-800 Hz
  • resonance frequency fs = 20 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,6 dB (2,83V; 1m)
  • DC resistance Re = 2,78 Ohm
  • force factor BL = 11,12 N/A
  • voice coil inductance L = 0,38 mH
  • effective piston radiating area Sd = 506,7 cm2
  • effective mechanical mass incl. air load mms = 113,9 g
  • equivalent volume of compliance Vas = 201,66 l
  • total Q factor Qts = 0,31 (Qms=15,6, Qes=0,32)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 288 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 142,5 mm
  • mass m = 2,68 kg
PDF data sheet

show kits to this chassis hide kits

Peerless GBS-250F38CP01-04
open a bigger photo

recommended cabinet 1:
closed cabinet with 10,3 L volume
from 65/41 Hz (-3dB/-8dB)

recommended cabinet 2:
42 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 31/26 Hz (-3dB/-8dB).

Peerless GBS-250F38CP01-04

order no. ty-GBS-250F38CP01-04

- not available

25 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 200 W
  • frequency range = 35-200 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,45 Ohm
  • force factor BL = 13,11 N/A
  • voice coil inductance L = 3,45 mH
  • effective piston radiating area Sd = 314,2 cm2
  • effective mechanical mass incl. air load mms = 103,4 g
  • equivalent volume of compliance Vas = 23,92 l
  • total Q factor Qts = 0,45 (Qms=5,62, Qes=0,49)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 264 mm
  • mounting depth (not countersunk) t = 40,3 mm
  • mass m = 3,24 kg
PDF data sheet

show kits to this chassis hide kits




no longer sold

Peerless Vifa XT 300 VS/4 (Paarweise selektiert)

Peerless Vifa XT 300 VS/4 (Paarweise selektiert)

order no. A-XT300VS-4sel

- not available

25 mm tweeter with high quality cone. A pair of speakers is delivered (the price is for one pair). The driver is magnetically shielded. The magnet system is based on Neodymium technology. The speaker has a 5 mm solid metal front plate.

  • power handling (continuous/programme) = 140/400 W
  • frequency range = 1500-40000 Hz
  • resonance frequency fs = 500 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2,2 N/A
  • effective piston radiating area Sd = 6 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 0,38 (Qms=2,5, Qes=0,45)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,5 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 104,2 mm
  • mounting depth (not countersunk) t = 51 mm
  • mass m = 0,8 kg
PDF data sheet

show kits to this chassis hide kits

Peerless H26TG-35-06

order no. ty-H26TG-35-06

- not available

25 mm tweeter with fabric cone. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 100 W
  • frequency range = 2500-20000 Hz
  • resonance frequency fs = 832 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 3,9 Ohm
  • force factor BL = 2,88 N/A
  • voice coil inductance L = 0,03 mH
  • effective piston radiating area Sd = 7,1 cm2
  • effective mechanical mass incl. air load mms = 0,21 g
  • total Q factor Qts = 0,28 (Qms=0,6, Qes=0,51)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,45 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 56,3 mm
  • mass m = 0,52 kg
PDF data sheet

show kits to this chassis hide kits

Peerless DX20BF00-08

order no. ty-DX20BF00-08

EUR 29,10 excl. VAT: € 24.45 / $ 26.41

19 mm tweeter with fabric cone. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 60 W
  • frequency range = 2000-25000 Hz
  • resonance frequency fs = 810 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,1 dB (2,83V; 1m)
  • DC resistance Re = 7,52 Ohm
  • force factor BL = 1,06 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 4,9 cm2
  • effective mechanical mass incl. air load mms = 0,1 g
  • total Q factor Qts = 1,71 (Qms=2,86, Qes=4,23)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm
  • mounting diameter d = 49,5 mm
  • overall diameter d = 66 mm
  • mounting depth (not countersunk) t = 35 mm
  • mass m = 0,17 kg
PDF data sheet

show kits to this chassis hide kits

Peerless XT25SC30-04 (XT300 KS/4)

order no. ty-XT25SC30-04

- not available

25 mm tweeter with fabric cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 1500-40000 Hz
  • resonance frequency fs = 649 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90,4 dB (2,83V; 1m)
  • DC resistance Re = 2,75 Ohm
  • force factor BL = 2,27 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 8,2 cm2
  • effective mechanical mass incl. air load mms = 0,4 g
  • total Q factor Qts = 0,61 (Qms=2,65, Qes=0,79)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm
  • mounting diameter d = 83 mm
  • overall diameter d = 104,3 mm
  • mounting depth (not countersunk) t = 45,81 mm
  • mass m = 0,42 kg
PDF data sheet

show kits to this chassis hide kits

Peerless D26NC56-06

order no. ty-D26NC56-06

- not available

25 mm tweeter with fabric cone. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 100 W
  • frequency range = 3000-25000 Hz
  • resonance frequency fs = 1625 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 90,7 dB (2,83V; 1m)
  • DC resistance Re = 4,68 Ohm
  • force factor BL = 2,19 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 7,1 cm2
  • effective mechanical mass incl. air load mms = 0,4 g
  • total Q factor Qts = 0,97 (Qms=1,33, Qes=3,59)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,5 mm
  • mounting diameter d = 45 mm
  • overall diameter d = 70x54 mm
  • mounting depth (not countersunk) t = 27,6 mm
  • mass m = 0,08 kg
PDF data sheet

show kits to this chassis hide kits

Peerless NDT-53

Peerless NDT-53

order no. not-available

- not available

26 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80/100 W
  • frequency range = > 3000 Hz
  • resonance frequency fs = 1330 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 2 N/A
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 1,55 (Qms=2,7, Qes=3,66)
  • voice coil diameter = 26 mm
  • mounting diameter d = 48 mm
  • overall diameter d = 52,8 mm
  • mounting depth (not countersunk) t = 15 mm

show kits to this chassis hide kits

Peerless PH-25/8

Peerless PH-25/8

order no. not-available

- not available

26 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 70/90 W
  • frequency range = > 3000 Hz
  • resonance frequency fs = 1075 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6,9 Ohm
  • force factor BL = 1,8 N/A
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,26 g
  • total Q factor Qts = 2,21 (Qms=6,18, Qes=3,45)
  • voice coil diameter = 26 mm
  • mounting diameter d = 62 mm
  • overall diameter d = 80 mm
  • mounting depth (not countersunk) t = 19,5 mm

show kits to this chassis hide kits

Peerless KO-10/8

Peerless KO-10/8

order no. not-available

- not available

26 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 70/90 W
  • frequency range = > 2500 Hz
  • resonance frequency fs = 1056 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91,5 dB (2,83V; 1m)
  • DC resistance Re = 6,8 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,24 g
  • total Q factor Qts = 0,89 (Qms=4,16, Qes=1,13)
  • voice coil diameter = 26 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 114,5 mm
  • mounting depth (not countersunk) t = 22,3 mm

show kits to this chassis hide kits

Peerless WA-10/8

Peerless WA-10/8

order no. not-available

- not available

26 mm tweeter with fabric cone.

  • power handling (continuous/programme) = 100/120 W
  • frequency range = > 2500 Hz
  • resonance frequency fs = 860 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 3,5 N/A
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,33 g
  • total Q factor Qts = 0,77 (Qms=4,31, Qes=0,94)
  • voice coil diameter = 26 mm
  • mounting diameter d = 79 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 27,5 mm

show kits to this chassis hide kits

Peerless SR-10

Peerless SR-10

order no. not-available

- not available

26 mm tweeter with fabric cone.

  • power handling (continuous/programme) = 80/120 W
  • frequency range = > 2500 Hz
  • resonance frequency fs = 1006 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 7 Ohm
  • force factor BL = 3,3 N/A
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,33 g
  • total Q factor Qts = 0,96 (Qms=4,72, Qes=1,21)
  • voice coil diameter = 26 mm
  • mounting diameter d = 79 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 27,5 mm

show kits to this chassis hide kits

Peerless PHH-25/8

Peerless PHH-25/8

order no. not-available

- not available

26 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80/120 W
  • frequency range = > 3000 Hz
  • resonance frequency fs = 1040 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 6,8 Ohm
  • force factor BL = 3,3 N/A
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,33 g
  • total Q factor Qts = 0,87 (Qms=5,16, Qes=1,04)
  • voice coil diameter = 26 mm
  • mounting diameter d = 80 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 76,5 mm

show kits to this chassis hide kits

Peerless TG9FD10-08 (9 BG 119-8)

order no. ty-TG9FD-10-08

on request

full range driver with glass fibre cone.

  • power handling (continuous/programme) = 25 W
  • frequency range = 100-20000 Hz
  • resonance frequency fs = 105 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84,4 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 3,32 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 36,3 cm2
  • effective mechanical mass incl. air load mms = 2,47 g
  • equivalent volume of compliance Vas = 0,99 l
  • total Q factor Qts = 0,73 (Qms=1,8, Qes=1,23)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2,6 mm
  • mounting diameter d = 77,9 mm
  • overall diameter d = 84x84 mm
  • mounting depth (not countersunk) t = 38,35 mm
  • mass m = 0,3 kg
PDF data sheet

show kits to this chassis hide kits

Peerless HDS Exclusive 106 (830881)

recommended cabinet 1:
closed cabinet with 0,76 L volume
from 145/92 Hz (-3dB/-8dB)

recommended cabinet 2:
3 L volume bass reflex cabinet
with HP35 reflex tube, 13 cm long.
from 70/57 Hz (-3dB/-8dB).

Peerless HDS Exclusive 106 (830881)

order no. not-available

- not available

11 cm midrange driver with high quality cone.

  • frequency range = 90-4000 Hz
  • resonance frequency fs = 81,2 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 6,4 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 53 cm2
  • effective mechanical mass incl. air load mms = 7,4 g
  • equivalent volume of compliance Vas = 2 l
  • total Q factor Qts = 0,44 (Qms=2,31, Qes=0,55)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 95 mm
  • overall diameter d = 120,8 mm
  • mounting depth (not countersunk) t = 56,5 mm
PDF data sheet

show kits to this chassis hide kits

Peerless HDS 106 PPB shielded (830854)

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 130/82 Hz (-3dB/-8dB)

recommended cabinet 2:
5,6 L volume bass reflex cabinet
with HP35 reflex tube, 8 cm long.
from 61/51 Hz (-3dB/-8dB).

Peerless HDS 106 PPB shielded (830854)

order no. not-available

- not available

11 cm midrange driver with polypropylene cone.

  • frequency range = 80-4500 Hz
  • resonance frequency fs = 75,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,8 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 5,1 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 5,9 g
  • equivalent volume of compliance Vas = 3,2 l
  • total Q factor Qts = 0,46 (Qms=2,66, Qes=0,56)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 95 mm
  • overall diameter d = 120,8 mm
  • mounting depth (not countersunk) t = 71 mm

show kits to this chassis hide kits

Peerless CSC-116G

recommended cabinet 1:
closed cabinet with 1,1 L volume
from 139/87 Hz (-3dB/-8dB)

recommended cabinet 2:
4,4 L volume bass reflex cabinet
with HP35 reflex tube, 9 cm long.
from 67/55 Hz (-3dB/-8dB).

Peerless CSC-116G

order no. not-available

- not available

10 cm bass driver with sandwich cone.

  • power handling (continuous/programme) = 50/80 W
  • frequency range = 60-5000 Hz
  • resonance frequency fs = 74 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,7 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 5,6 N/A
  • voice coil inductance L = 0,9 mH
  • effective piston radiating area Sd = 58 cm2
  • effective mechanical mass incl. air load mms = 6,2 g
  • equivalent volume of compliance Vas = 3,4 l
  • total Q factor Qts = 0,43 (Qms=2,4, Qes=0,52)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 1,5 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 116 mm
  • mounting depth (not countersunk) t = 53,5 mm

show kits to this chassis hide kits

Peerless PT 145 TV

recommended cabinet 1:
closed cabinet with 2 L volume
from 133/84 Hz (-3dB/-8dB)

recommended cabinet 2:
7,5 L volume bass reflex cabinet
with HP50 reflex tube, 12 cm long.
from 66/53 Hz (-3dB/-8dB).

Peerless PT 145 TV

order no. not-available

- not available

13 cm bass driver with polypropylene cone.

  • power handling (continuous/programme) = 80/100 W
  • frequency range = 60-4000 Hz
  • resonance frequency fs = 68 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 6,3 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 85 cm2
  • effective mechanical mass incl. air load mms = 7,9 g
  • equivalent volume of compliance Vas = 6,7 l
  • total Q factor Qts = 0,41 (Qms=1,9, Qes=0,52)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 115 mm
  • overall diameter d = 145 mm
  • mounting depth (not countersunk) t = 73 mm

show kits to this chassis hide kits

Peerless HDS Exclusive 152 (830882)

recommended cabinet 1:
closed cabinet with 1,9 L volume
from 133/84 Hz (-3dB/-8dB)

recommended cabinet 2:
6,8 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 67/53 Hz (-3dB/-8dB).

Peerless HDS Exclusive 152 (830882)

order no. not-available

- not available

14 cm midrange driver with high quality cone.

  • frequency range = 60-2500 Hz
  • resonance frequency fs = 64,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,2 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 7 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 87 cm2
  • effective mechanical mass incl. air load mms = 8,8 g
  • equivalent volume of compliance Vas = 7,2 l
  • total Q factor Qts = 0,39 (Qms=3,85, Qes=0,43)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 120,3 mm
  • overall diameter d = 152,3 mm
  • mounting depth (not countersunk) t = 65,5 mm
PDF data sheet

show kits to this chassis hide kits

Peerless HDS E 5-25/08 (831882)
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,9 L volume
from 133/84 Hz (-3dB/-8dB)

recommended cabinet 2:
6,8 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 67/53 Hz (-3dB/-8dB).

Peerless HDS E 5-25/08 (831882)

order no. not-available

- not available

14 cm midrange driver with paper cone.

  • frequency range = 50-6000 Hz
  • resonance frequency fs = 64,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,2 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 7 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 87 cm2
  • effective mechanical mass incl. air load mms = 8,8 g
  • equivalent volume of compliance Vas = 7,2 l
  • total Q factor Qts = 0,39 (Qms=3,85, Qes=0,43)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 120,3 mm
  • overall diameter d = 152,3 mm
  • mounting depth (not countersunk) t = 61,3 mm
PDF data sheet

show kits to this chassis hide kits

Peerless HDS-134

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 139/88 Hz (-3dB/-8dB)

recommended cabinet 2:
4,6 L volume bass reflex cabinet
with HP50 reflex tube, 20 cm long.
from 73/57 Hz (-3dB/-8dB).

Peerless HDS-134

order no. not-available

- not available

14 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 100/140 W
  • frequency range = xxx-3000 Hz
  • resonance frequency fs = 59 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 7,4 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 91 cm2
  • effective mechanical mass incl. air load mms = 10,8 g
  • equivalent volume of compliance Vas = 7,6 l
  • total Q factor Qts = 0,34 (Qms=2,07, Qes=0,41)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 60 mm

show kits to this chassis hide kits

Peerless HDS-182PP

recommended cabinet 1:
closed cabinet with 4,3 L volume
from 91/58 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP50 reflex tube, 12 cm long.
from 46/37 Hz (-3dB/-8dB).

Peerless HDS-182PP

order no. not-available

- not available

17 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 150/200 W
  • frequency range = xxx-3000 Hz
  • resonance frequency fs = 44,3 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,3 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 8,5 N/A
  • voice coil inductance L = 1,4 mH
  • effective piston radiating area Sd = 134 cm2
  • effective mechanical mass incl. air load mms = 19,3 g
  • equivalent volume of compliance Vas = 16,6 l
  • total Q factor Qts = 0,39 (Qms=2,33, Qes=0,47)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 183 mm
  • mounting depth (not countersunk) t = 78 mm

show kits to this chassis hide kits

Peerless Sub176SD

recommended cabinet 1:
closed cabinet with 2,2 L volume
from 146/92 Hz (-3dB/-8dB)

recommended cabinet 2:
8,5 L volume bass reflex cabinet
with HP70 reflex tube, 17 cm long.
from 71/58 Hz (-3dB/-8dB).

Peerless Sub176SD

order no. not-available

- not available

16 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 100/140 W
  • frequency range = 60-3000 Hz
  • resonance frequency fs = 76 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,5 Ohm
  • force factor BL = 6,8 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 143 cm2
  • effective mechanical mass incl. air load mms = 17,6 g
  • equivalent volume of compliance Vas = 7,1 l
  • total Q factor Qts = 0,42 (Qms=0,64, Qes=1,26)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 142 mm
  • overall diameter d = 176 mm
  • mounting depth (not countersunk) t = 81 mm

show kits to this chassis hide kits

Peerless HDS-182
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,9 L volume
from 100/63 Hz (-3dB/-8dB)

recommended cabinet 2:
13,6 L volume bass reflex cabinet
with HP50 reflex tube, 12 cm long.
from 52/41 Hz (-3dB/-8dB).

Peerless HDS-182

order no. not-available

- not available

17 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 150/200 W
  • frequency range = < 3000 Hz
  • resonance frequency fs = 44,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,6 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 8,9 N/A
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 143 cm2
  • effective mechanical mass incl. air load mms = 18,9 g
  • equivalent volume of compliance Vas = 18,7 l
  • total Q factor Qts = 0,35 (Qms=2,28, Qes=0,42)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 183 mm
  • mounting depth (not countersunk) t = 78 mm

show kits to this chassis hide kits

Peerless CSX-176T

recommended cabinet 1:
closed cabinet with 9,3 L volume
from 71/45 Hz (-3dB/-8dB)

recommended cabinet 2:
36 L volume bass reflex cabinet
with HP70 reflex tube, 17 cm long.
from 35/28 Hz (-3dB/-8dB).

Peerless CSX-176T

order no. not-available

- not available

16 cm bass driver with sandwich cone.

  • power handling (continuous/programme) = 80/120 W
  • frequency range = 35-3000 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,5 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 7 N/A
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 143 cm2
  • effective mechanical mass incl. air load mms = 17,8 g
  • equivalent volume of compliance Vas = 28 l
  • total Q factor Qts = 0,43 (Qms=2,22, Qes=0,53)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 142 mm
  • overall diameter d = 176 mm
  • mounting depth (not countersunk) t = 77 mm

show kits to this chassis hide kits

Peerless HDS-182 TV

recommended cabinet 1:
closed cabinet with 4,9 L volume
from 96/60 Hz (-3dB/-8dB)

recommended cabinet 2:
19 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 47/38 Hz (-3dB/-8dB).

Peerless HDS-182 TV

order no. not-available

- not available

17 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 150/200 W
  • frequency range = xxx-2500 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 8,4 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 143 cm2
  • effective mechanical mass incl. air load mms = 18,2 g
  • equivalent volume of compliance Vas = 15,7 l
  • total Q factor Qts = 0,42 (Qms=2,3, Qes=0,51)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 183 mm
  • mounting depth (not countersunk) t = 78 mm

show kits to this chassis hide kits

Peerless HDS-205

recommended cabinet 1:
closed cabinet with 7,3 L volume
from 88/56 Hz (-3dB/-8dB)

recommended cabinet 2:
19 L volume bass reflex cabinet
with HP70 reflex tube, 23 cm long.
from 51/39 Hz (-3dB/-8dB).

Peerless HDS-205

order no. not-available

- not available

21 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 180/220 W
  • frequency range = xxx-1000 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 9,9 N/A
  • voice coil inductance L = 1,8 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 28 g
  • equivalent volume of compliance Vas = 67 l
  • total Q factor Qts = 0,27 (Qms=3,02, Qes=0,3)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 190 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 90 mm

show kits to this chassis hide kits

Peerless HDS 205 PPB (830868)

recommended cabinet 1:
closed cabinet with 17 L volume
from 65/41 Hz (-3dB/-8dB)

recommended cabinet 2:
65 L volume bass reflex cabinet
with HP100 reflex tube, 25 cm long.
from 32/26 Hz (-3dB/-8dB).

Peerless HDS 205 PPB (830868)

order no. not-available

- not available

21 cm bass driver with polypropylene cone.

  • frequency range = 35-1800 Hz
  • resonance frequency fs = 32,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90,1 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 8,1 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 221 cm2
  • effective mechanical mass incl. air load mms = 25,6 g
  • equivalent volume of compliance Vas = 63,4 l
  • total Q factor Qts = 0,4 (Qms=4,09, Qes=0,44)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 190 mm
  • overall diameter d = 225,2 mm
  • mounting depth (not countersunk) t = 94 mm
PDF data sheet

show kits to this chassis hide kits

Peerless HDS Exclusive 205 (830884)

recommended cabinet 1:
closed cabinet with 18 L volume
from 67/42 Hz (-3dB/-8dB)

recommended cabinet 2:
65 L volume bass reflex cabinet
with HP100 reflex tube, 23 cm long.
from 33/27 Hz (-3dB/-8dB).

Peerless HDS Exclusive 205 (830884)

order no. not-available

- not available

21 cm bass driver with high quality cone.

  • frequency range = 40-2000 Hz
  • resonance frequency fs = 32,4 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,3 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 8 N/A
  • voice coil inductance L = 1,4 mH
  • effective piston radiating area Sd = 221 cm2
  • effective mechanical mass incl. air load mms = 23,7 g
  • equivalent volume of compliance Vas = 68,8 l
  • total Q factor Qts = 0,38 (Qms=3, Qes=0,44)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 190 mm
  • overall diameter d = 225,2 mm
  • mounting depth (not countersunk) t = 94 mm
PDF data sheet

show kits to this chassis hide kits

Peerless CCS-220/8

recommended cabinet 1:
closed cabinet with 18 L volume
from 49/31 Hz (-3dB/-8dB)

recommended cabinet 2:
66 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 25/20 Hz (-3dB/-8dB).

Peerless CCS-220/8

order no. not-available

- not available

20 cm bass driver with polypropylene cone.

  • power handling (continuous/programme) = 100/140 W
  • frequency range = 25-600 Hz
  • resonance frequency fs = 24 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 8+8 Ohm
  • force factor BL = 8,1 N/A
  • voice coil inductance L = 1,4 mH
  • effective piston radiating area Sd = 225 cm2
  • effective mechanical mass incl. air load mms = 47,6 g
  • equivalent volume of compliance Vas = 70 l
  • total Q factor Qts = 0,38 (Qms=3,66, Qes=0,43)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 220,5 mm
  • mounting depth (not countersunk) t = 97 mm

show kits to this chassis hide kits

Peerless PT 210M/8

recommended cabinet 1:
closed cabinet with 20 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
70 L volume bass reflex cabinet
with HP100 reflex tube, 19 cm long.
from 35/28 Hz (-3dB/-8dB).

Peerless PT 210M/8

order no. not-available

- not available

20 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 90/130 W
  • frequency range = 35-2000 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,7 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 7,7 N/A
  • voice coil inductance L = 1,6 mH
  • effective piston radiating area Sd = 225 cm2
  • effective mechanical mass incl. air load mms = 21,1 g
  • equivalent volume of compliance Vas = 81 l
  • total Q factor Qts = 0,38 (Qms=2,29, Qes=0,45)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 184,5 mm
  • overall diameter d = 210,5 mm
  • mounting depth (not countersunk) t = 87 mm

show kits to this chassis hide kits

Peerless CSX-217T

recommended cabinet 1:
closed cabinet with 8,7 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
23 L volume bass reflex cabinet
with HP70 reflex tube, 22 cm long.
from 48/36 Hz (-3dB/-8dB).

Peerless CSX-217T

order no. not-available

- not available

20 cm bass driver with sandwich cone.

  • power handling (continuous/programme) = 100/140 W
  • frequency range = 30-1500 Hz
  • resonance frequency fs = 28 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,5 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 10,4 N/A
  • voice coil inductance L = 2,6 mH
  • effective piston radiating area Sd = 235 cm2
  • effective mechanical mass incl. air load mms = 30,5 g
  • equivalent volume of compliance Vas = 80 l
  • total Q factor Qts = 0,27 (Qms=3,5, Qes=0,29)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 217 mm
  • mounting depth (not countersunk) t = 91 mm

show kits to this chassis hide kits

Peerless CSC-217R

recommended cabinet 1:
closed cabinet with 70 L volume
from 41/26 Hz (-3dB/-8dB)

recommended cabinet 2:
270 L volume bass reflex cabinet
with HP100 reflex tube, 12 cm long.
from 18/16 Hz (-3dB/-8dB).

Peerless CSC-217R

order no. not-available

- not available

20 cm bass driver with sandwich cone.

  • power handling (continuous/programme) = 90/120 W
  • frequency range = 35-2000 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 6,7 N/A
  • voice coil inductance L = 2 mH
  • effective piston radiating area Sd = 235 cm2
  • effective mechanical mass incl. air load mms = 28,9 g
  • equivalent volume of compliance Vas = 74 l
  • total Q factor Qts = 0,58 (Qms=4,16, Qes=0,68)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 217 mm
  • mounting depth (not countersunk) t = 91 mm

show kits to this chassis hide kits

Peerless CC-260

recommended cabinet 1:
closed cabinet with 33 L volume
from 45/28 Hz (-3dB/-8dB)

recommended cabinet 2:
131 L volume bass reflex cabinet
with HP100 reflex tube, 26 cm long.
from 21/18 Hz (-3dB/-8dB).

Peerless CC-260

order no. not-available

- not available

24 cm bass driver with polypropylene cone.

  • power handling (continuous/programme) = 100/140 W
  • frequency range = 55-3000 Hz
  • resonance frequency fs = 25 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 10 N/A
  • voice coil inductance L = 3,3 mH
  • effective piston radiating area Sd = 310 cm2
  • effective mechanical mass incl. air load mms = 50,8 g
  • equivalent volume of compliance Vas = 87 l
  • total Q factor Qts = 0,45 (Qms=2,65, Qes=0,54)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 221 mm
  • overall diameter d = 260,5 mm
  • mounting depth (not countersunk) t = 103 mm

show kits to this chassis hide kits

Peerless CSX-257W

recommended cabinet 1:
closed cabinet with 28 L volume
from 64/40 Hz (-3dB/-8dB)

recommended cabinet 2:
96 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 33/26 Hz (-3dB/-8dB).

Peerless CSX-257W

order no. not-available

- not available

24 cm bass driver with sandwich cone.

  • power handling (continuous/programme) = 120/160 W
  • frequency range = 25-800 Hz
  • resonance frequency fs = 28 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,2 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 10 N/A
  • voice coil inductance L = 2,9 mH
  • effective piston radiating area Sd = 330 cm2
  • effective mechanical mass incl. air load mms = 51,9 g
  • equivalent volume of compliance Vas = 144 l
  • total Q factor Qts = 0,35 (Qms=2,56, Qes=0,4)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 220 mm
  • overall diameter d = 257 mm
  • mounting depth (not countersunk) t = 99,6 mm

show kits to this chassis hide kits

Peerless XLS-10

recommended cabinet 1:
closed cabinet with 3 L volume
from 87/55 Hz (-3dB/-8dB)

recommended cabinet 2:
4,4 L volume bass reflex cabinet
with HP70 reflex tube, 124 cm long.
from 64/47 Hz (-3dB/-8dB).

Peerless XLS-10

order no. not-available

- not available

25 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 250/400 W
  • frequency range = < 100 Hz
  • resonance frequency fs = 18 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,4 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 17,5 N/A
  • voice coil inductance L = 4,3 mH
  • effective piston radiating area Sd = 333 cm2
  • effective mechanical mass incl. air load mms = 135 g
  • equivalent volume of compliance Vas = 80 l
  • total Q factor Qts = 0,17 (Qms=2,63, Qes=0,18)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 12,5 mm
  • mounting diameter d = 240 mm
  • overall diameter d = 269,3 mm
  • mounting depth (not countersunk) t = 118,2 mm

show kits to this chassis hide kits

Peerless XLS-12

recommended cabinet 1:
closed cabinet with 7,9 L volume
from 71/45 Hz (-3dB/-8dB)

recommended cabinet 2:
15 L volume bass reflex cabinet
with HP100 reflex tube, 117 cm long.
from 46/34 Hz (-3dB/-8dB).

Peerless XLS-12

order no. not-available

- not available

29 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 250/400 W
  • frequency range = < 150 Hz
  • resonance frequency fs = 18 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,5 Ohm
  • force factor BL = 8,9 N/A
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 462 cm2
  • effective mechanical mass incl. air load mms = 166,3 g
  • equivalent volume of compliance Vas = 136 l
  • total Q factor Qts = 0,2 (Qms=3,7, Qes=0,21)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 12,5 mm
  • mounting diameter d = 278 mm
  • overall diameter d = 308 mm
  • mounting depth (not countersunk) t = 126 mm

show kits to this chassis hide kits

Peerless CCX-315/8

recommended cabinet 1:
closed cabinet with 75 L volume
from 44/28 Hz (-3dB/-8dB)

recommended cabinet 2:
294 L volume bass reflex cabinet
with 2x HP100 reflex tube, 19 cm long.
from 21/17 Hz (-3dB/-8dB).

Peerless CCX-315/8

order no. not-available

- not available

30 cm bass driver with polypropylene cone.

  • power handling (continuous/programme) = 160/200 W
  • frequency range = 25-500 Hz
  • resonance frequency fs = 24 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,3 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 11,6 N/A
  • voice coil inductance L = 2,8 mH
  • effective piston radiating area Sd = 520 cm2
  • effective mechanical mass incl. air load mms = 80,2 g
  • equivalent volume of compliance Vas = 210 l
  • total Q factor Qts = 0,43 (Qms=3,72, Qes=0,49)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 112 mm

show kits to this chassis hide kits

Peerless SDS 3.5

Peerless SDS 3.5" Passive Radiator 830878

order no. not-available

- not available

11 cm passive radiator. The diaphragm is varnished with a hydrophabic coat.

  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 124 mm
  • mounting depth (not countersunk) t = 29,4 mm
PDF data sheet

show kits to this chassis hide kits

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright (c) Daniel Gattig, 2023; All rights reserved. - errors and omissions excepted
