Mids

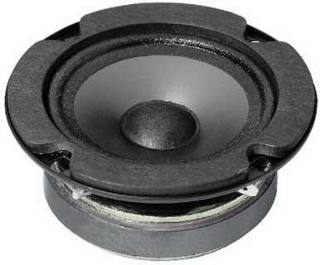

Monacor SPP-90

order no. mo-101150

EUR 18,39 excl. VAT: € 15.45 / $ 17.31

7 cm midrange driver with polypropylene cone.

  • power handling (continuous/programme) = 22/45 W
  • frequency range = 2000-18000 Hz
  • resonance frequency fs = 1000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 23 cm2
  • voice coil diameter = 15 mm
  • mounting diameter d = 61 mm
  • overall diameter d = 78 mm
  • mounting depth (not countersunk) t = 30 mm
  • mass m = 0,3 kg

show kits to this chassis hide kits

Monacor SPP-90

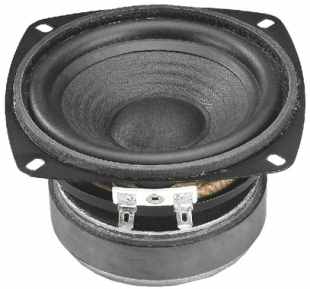

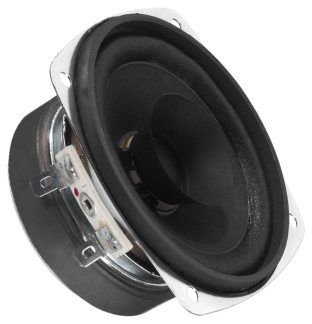

Monacor SP-100/8

order no. mo-103780

EUR 33,10 excl. VAT: € 27.82 / $ 31.15

10,6 x 10,6 cm midrange driver with paper cone. To avoid compression effects the driver possesses a pole piece hole.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 100-7000 Hz
  • resonance frequency fs = 61 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 5,55 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 52 cm2
  • effective mechanical mass incl. air load mms = 5,5 g
  • equivalent volume of compliance Vas = 4,7 l
  • total Q factor Qts = 0,37 (Qms=2,28, Qes=0,44)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 103 mm
  • overall diameter d = 106x106 mm
  • mounting depth (not countersunk) t = 63 mm
  • mass m = 0,8 kg

show kits to this chassis hide kits

Monacor SPP-90

Monacor SPH-100C

order no. mo-102300

EUR 68,00 excl. VAT: € 57.14 / $ 64.00

10,6 x 10,6 cm midrange driver with carbon cone. To avoid compression effects the driver possesses a pole piece hole.

  • power handling (continuous/programme) = 30/50 W
  • frequency range = 60-6000 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 5,1 N/A
  • voice coil inductance L = 0,65 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 7 g
  • equivalent volume of compliance Vas = 6 l
  • total Q factor Qts = 0,44 (Qms=3,53, Qes=0,5)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 96 mm
  • overall diameter d = 106x106 mm
  • mounting depth (not countersunk) t = 50 mm
  • mass m = 0,85 kg

show kits to this chassis hide kits

Monacor SPP-90

recommended cabinet 1:
closed cabinet with 2,5 L volume
from 116/73 Hz (-3dB/-8dB)

recommended cabinet 2:
9,8 L volume bass reflex cabinet
with HP50 reflex tube, 12 cm long.
from 52/45 Hz (-3dB/-8dB).

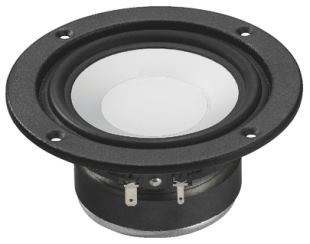

Monacor SPH-100AL

order no. mo-103810

EUR 54,00 excl. VAT: € 45.38 / $ 50.82

11 cm midrange driver with aluminium cone.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 80-5000 Hz
  • resonance frequency fs = 80 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 4,81 N/A
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 4,9 g
  • equivalent volume of compliance Vas = 3,2 l
  • total Q factor Qts = 0,55 (Qms=3,05, Qes=0,67)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1,5 mm
  • mounting diameter d = 90 mm
  • overall diameter d = 124,3 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 0,65 kg

show kits to this chassis hide kits

Monacor SPP-90

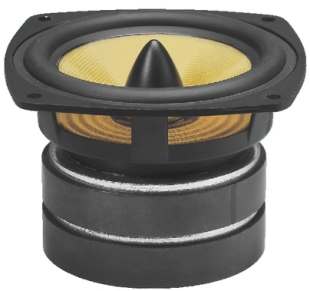

Monacor SPH-102KEP

order no. mo-102590

EUR 61,63 excl. VAT: € 51.79 / $ 58.00

10,6 x 10,6 cm midrange driver with kevlar cone. The cone is equipped with a phase plug.

  • power handling (continuous/programme) = 40/120 W
  • frequency range = 100-10000 Hz
  • resonance frequency fs = 95 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 4,75 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 3 g
  • equivalent volume of compliance Vas = 3 l
  • total Q factor Qts = 0,52 (Qms=5,7, Qes=0,57)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 95 mm
  • overall diameter d = 106x106 mm
  • mounting depth (not countersunk) t = 76 mm
  • mass m = 0,97 kg

Online journal HiFi Selbstbau
2008; "Nahezu perfekt ist der SPH-102KEP als Tief-/Mitteltöner in einer 4-Wege-Konstruktion von ca. 200 bis 1000Hz einsetzbar.”

show kits to this chassis hide kits

Monacor SPP-90

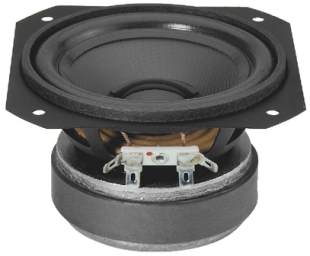

Monacor SPP-110/4

order no. mo-101050

EUR 34,48 excl. VAT: € 28.97 / $ 32.45

11 x 11 cm midrange driver with synthetics ABS cone. To avoid compression effects the driver possesses a pole piece hole.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 70-8000 Hz
  • resonance frequency fs = 53 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 3,3 N/A
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 4,3 g
  • equivalent volume of compliance Vas = 8 l
  • total Q factor Qts = 0,37 (Qms=2,01, Qes=0,46)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 100 mm
  • overall diameter d = 110x110 mm
  • mounting depth (not countersunk) t = 60 mm
  • mass m = 0,9 kg

show kits to this chassis hide kits

Monacor SPP-90

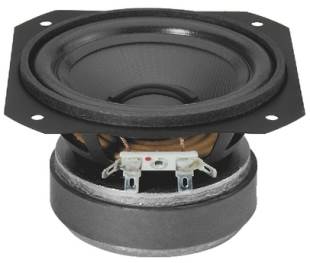

Monacor SPP-110/8

order no. mo-101060

EUR 34,48 excl. VAT: € 28.97 / $ 32.45

11 x 11 cm midrange driver with synthetics ABS cone. To avoid compression effects the driver possesses a pole piece hole.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 70-8000 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 4,6 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 4,4 g
  • equivalent volume of compliance Vas = 8 l
  • total Q factor Qts = 0,37 (Qms=2,01, Qes=0,46)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 100 mm
  • overall diameter d = 110x110 mm
  • mounting depth (not countersunk) t = 60 mm
  • mass m = 0,9 kg

show kits to this chassis hide kits

Monacor SPP-90

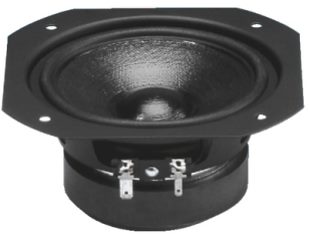

Monacor MSH-115

order no. mo-101840

EUR 47,50 excl. VAT: € 39.92 / $ 44.71

11,5 x 11,5 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 50/120 W
  • frequency range = 100-10000 Hz
  • resonance frequency fs = 85 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 4,8 N/A
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 4,5 g
  • equivalent volume of compliance Vas = 4 l
  • total Q factor Qts = 0,43 (Qms=1,98, Qes=0,55)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1,5 mm
  • mounting diameter d = 101 mm
  • overall diameter d = 115x115 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 0,6 kg

show kits to this chassis hide kits

Monacor SPP-90
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,7 L volume
from 129/81 Hz (-3dB/-8dB)

recommended cabinet 2:
6,8 L volume bass reflex cabinet
with HP50 reflex tube, 15 cm long.
from 58/50 Hz (-3dB/-8dB).

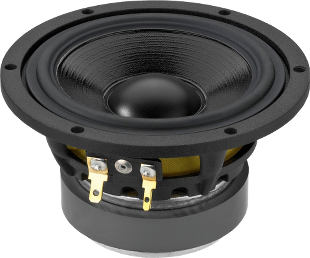

Monacor MSH-115HQ

order no. mo-101330

EUR 66,30 excl. VAT: € 55.71 / $ 62.40

10 cm midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 100-8000 Hz
  • resonance frequency fs = 89 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 5,35 N/A
  • voice coil inductance L = 0,53 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 5,8 g
  • equivalent volume of compliance Vas = 2,2 l
  • total Q factor Qts = 0,55 (Qms=3,26, Qes=0,66)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 97 mm
  • overall diameter d = 116 mm
  • mounting depth (not countersunk) t = 64 mm
  • mass m = 0,67 kg

show kits to this chassis hide kits

Monacor SPP-90

recommended cabinet 1:
closed cabinet with 0,79 L volume
from 186/118 Hz (-3dB/-8dB)

recommended cabinet 2:
3 L volume bass reflex cabinet
with HP35 reflex tube, 7 cm long.
from 92/74 Hz (-3dB/-8dB).

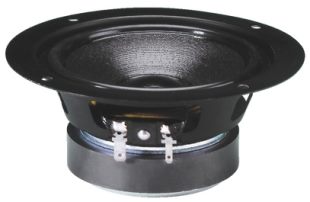

Monacor MSH-116/4

order no. mo-102150

EUR 49,35 excl. VAT: € 41.47 / $ 46.45

11 cm midrange driver with high quality cone .

  • power handling (continuous/programme) = 40/120 W
  • frequency range = 120-10000 Hz
  • resonance frequency fs = 95 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 4,3 N/A
  • voice coil inductance L = 0,18 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 4,6 g
  • equivalent volume of compliance Vas = 2,7 l
  • total Q factor Qts = 0,4 (Qms=2,38, Qes=0,48)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 101 mm
  • overall diameter d = 124 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 0,6 kg

journal Klang+Ton
02/2001; "Dieses Chassis ist die Überraschung des Tests. Sehr empfehlenswert!”

show kits to this chassis hide kits

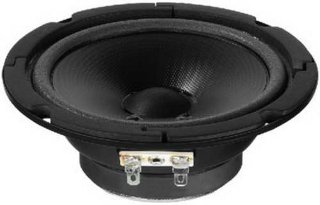

Monacor SPP-125

order no. mo-101070

EUR 20,43 excl. VAT: € 17.17 / $ 19.23

12 cm midrange driver with polypropylene cone.

  • power handling (continuous/programme) = 22/45 W
  • frequency range = 800-8000 Hz
  • resonance frequency fs = 550 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 73 cm2
  • voice coil diameter = 20 mm
  • mounting diameter d = 110 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 50 mm
  • mass m = 0,55 kg

show kits to this chassis hide kits

Monacor SPP-90

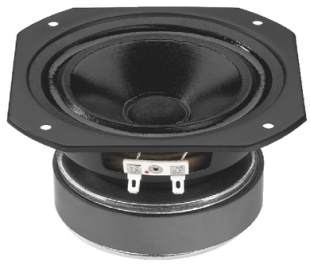

Monacor MS-130

order no. mo-101400

EUR 44,80 excl. VAT: € 37.65 / $ 42.16

13,5 x 13,5 cm midrange driver with high quality cone. The rubber surround is invers.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 200-8000 Hz
  • resonance frequency fs = 120 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 4,2 N/A
  • voice coil inductance L = 0,25 mH
  • effective piston radiating area Sd = 70 cm2
  • effective mechanical mass incl. air load mms = 4 g
  • equivalent volume of compliance Vas = 3 l
  • total Q factor Qts = 0,88 (Qms=5,23, Qes=1,06)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 0,7 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 135x135 mm
  • mounting depth (not countersunk) t = 70 mm
  • mass m = 1,3 kg

show kits to this chassis hide kits

Tweeter   Mids   Fullrange   Woofer   no longer available   PA   Mids   Woofer   Fullrange   no longer available   Car   Woofer   no longer available
The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright 2012 Iris Strassacker; All rights reserved. - errors and omissions excepted
