Markaudio develops full range drivers for commercial and high end customers in Asia, Europe and North America.
With them, the sound comes from one voice, the sound image does not disintegrate into a high, medium and low frequency source. Crossovers with coils and capacitors absorb energy and release it later on, thus disturbing the sound image. This is why Mark Audio loudspeakers are designed for crossover-free control.
Simply determine the suitable housing with the aid of the volume calculator (the required volume is given for each speaker, see below on the left hand side).
To our building proposals with Markaudio drivers.
recommended cabinet 1: closed cabinet with 0,77 L volume from 157/99 Hz (-3dB/-8dB) recommended cabinet 2: 3,1 L volume bass reflex cabinet with HP35 reflex tube, 10 cm long. from 72/61 Hz (-3dB/-8dB).
EUR 109,00 excl. VAT: € 91.60 / $ 98.92
9 cm full range driver with metal cone. A pair of speakers is delivered (the price is for one pair). The rubber surround is invers. The speaker has soldering lugs / faston terminals.
recommended cabinet 1: closed cabinet with 1,4 L volume from 133/84 Hz (-3dB/-8dB) recommended cabinet 2: 5,4 L volume bass reflex cabinet with HP35 reflex tube, 8 cm long. from 63/52 Hz (-3dB/-8dB).
10 cm full range driver with paper cone. A pair of speakers is delivered (the price is for one pair). The rubber surround is invers. The speaker has soldering lugs / faston terminals.

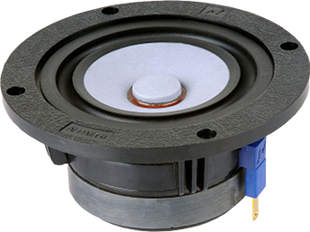

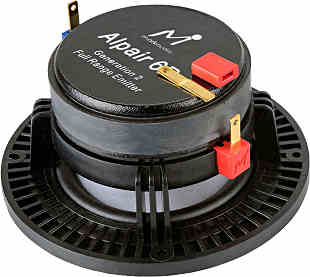

journal Hobby HiFi Fazit: Der Alpair 6P fasziniert mit ausgewogenem, breitbandigen und weitestgehend störungsfreien Klang, nebst für die geringe Größe überragender Tieftonqualität und Pegelfestigkeit.
recommended cabinet 1: closed cabinet with 1,3 L volume from 127/80 Hz (-3dB/-8dB) recommended cabinet 2: 4,9 L volume bass reflex cabinet with HP35 reflex tube, 10 cm long. from 63/51 Hz (-3dB/-8dB).
- not available

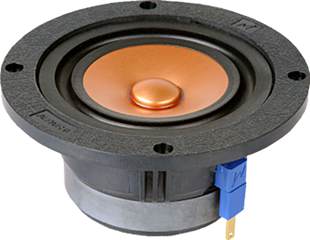

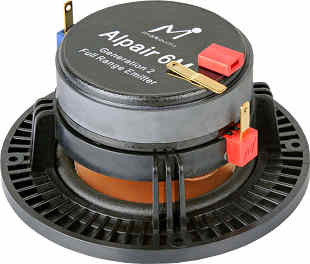

10 cm full range driver with metal cone. A pair of speakers is delivered (the price is for one pair). The rubber surround is invers. The speaker has soldering lugs / faston terminals.
journal Hobby HiFi Fazit: Der Alpair 6M ist für besonders kompakte Desktop-Monitore und Nahfeld-Abhören ideal. Er kombiniert hervorragende Klangqualität mit für die Größe erstaunlicher Pegelfestigkeit.
recommended cabinet 1: closed cabinet with 3,3 L volume from 104/66 Hz (-3dB/-8dB) recommended cabinet 2: 13,3 L volume bass reflex cabinet with HP50 reflex tube, 11 cm long. from 47/41 Hz (-3dB/-8dB).
12 cm full range driver with metal cone. A pair of speakers is delivered (the price is for one pair). The rubber surround is invers. The speaker has soldering lugs / faston terminals.
recommended cabinet 1: closed cabinet with 2,9 L volume from 119/75 Hz (-3dB/-8dB) recommended cabinet 2: 11,9 L volume bass reflex cabinet with HP50 reflex tube, 9 cm long. from 55/46 Hz (-3dB/-8dB).
EUR 169,00 excl. VAT: € 142.02 / $ 153.38
12 cm full range driver with paper cone. A pair of speakers is delivered (the price is for one pair). The rubber surround is invers. The speaker has soldering lugs / faston terminals.
recommended cabinet 1: closed cabinet with 4,2 L volume from 96/60 Hz (-3dB/-8dB) recommended cabinet 2: 13,1 L volume bass reflex cabinet with HP50 reflex tube, 14 cm long. from 52/40 Hz (-3dB/-8dB).
15 cm full range driver with metal cone. The rubber surround is invers. The speaker has soldering lugs / faston terminals.
recommended cabinet 1: closed cabinet with 5,1 L volume from 103/65 Hz (-3dB/-8dB) recommended cabinet 2: 17 L volume bass reflex cabinet with HP70 reflex tube, 19 cm long. from 55/43 Hz (-3dB/-8dB).
15 cm full range driver with paper cone. The rubber surround is invers. The speaker has soldering lugs / faston terminals.
recommended cabinet 1: closed cabinet with 5,1 L volume from 119/75 Hz (-3dB/-8dB) recommended cabinet 2: 13,9 L volume bass reflex cabinet with HP70 reflex tube, 16 cm long. from 68/52 Hz (-3dB/-8dB).
19 cm full range driver with paper cone. The rubber surround is invers. The speaker has soldering lugs / faston terminals.
recommended cabinet 1: closed cabinet with 11,7 L volume from 79/50 Hz (-3dB/-8dB) recommended cabinet 2: 43 L volume bass reflex cabinet with HP70 reflex tube, 10 cm long. from 40/32 Hz (-3dB/-8dB).
19 cm bass-midrange driver with paper cone. The rubber surround is invers. The speaker has soldering lugs / faston terminals.
recommended cabinet 1: closed cabinet with 0,96 L volume from 158/100 Hz (-3dB/-8dB) recommended cabinet 2: 3,8 L volume bass reflex cabinet with HP35 reflex tube, 8 cm long. from 70/62 Hz (-3dB/-8dB).
EUR 49,00 excl. VAT: € 41.18 / $ 44.47
recommended cabinet 1: closed cabinet with 3,7 L volume from 96/61 Hz (-3dB/-8dB) recommended cabinet 2: 15 L volume bass reflex cabinet with HP50 reflex tube, 11 cm long. from 43/37 Hz (-3dB/-8dB).
EUR 69,00 excl. VAT: € 57.98 / $ 62.62
11 cm full range driver with metal cone. A pair of speakers is delivered (the price is for one pair). The rubber surround is invers. The speaker has soldering lugs / faston terminals.
recommended cabinet 1: closed cabinet with 3,7 L volume from 102/64 Hz (-3dB/-8dB) recommended cabinet 2: 15 L volume bass reflex cabinet with HP50 reflex tube, 10 cm long. from 46/40 Hz (-3dB/-8dB).
EUR 89,00 excl. VAT: € 74.79 / $ 80.77
recommended cabinet 1: closed cabinet with 3,2 L volume from 107/68 Hz (-3dB/-8dB) recommended cabinet 2: 9 L volume bass reflex cabinet with HP50 reflex tube, 17 cm long. from 60/46 Hz (-3dB/-8dB).
EUR 129,00 excl. VAT: € 108.40 / $ 117.08
16 cm full range driver with metal cone. The rubber surround is invers. The speaker has soldering lugs / faston terminals.
EUR 119,00 excl. VAT: € 100.00 / $ 108.00
Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.
