Audaphon

Audaphon is a German brand that searches worldwide for loudspeaker drivers with the highest quality characteristics.

Audaphon drivers feature an excellent price / performance ratio.

Only high-grade materials are used to ensure solidity and best possible sound.

For the high frequency range Audaphon offers

of which the latter can hardly be surpassed in terms of airiness and transparency.

To our building proposals with Audaphon drivers.




Classic

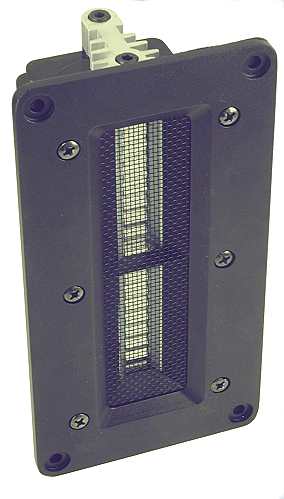

Audaphon JP 2.0

Audaphon JP 2.0

order no. str-jp20

- not available

ribbon tweeter.

  • frequency range = 1700-40000 Hz
  • resonance frequency fs = 370 Hz
  • impedance R = 7 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 7 Ohm
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,025 g
  • overall diameter d = 164 x 70,4 mm
  • mounting depth (not countersunk) t = 70 mm
PDF data sheet

show kits to this chassis hide kits

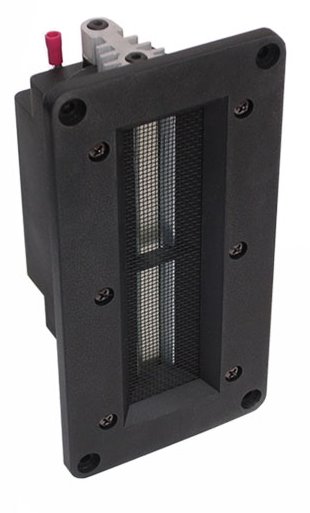

Audaphon Neo CD 2.0 black

Audaphon Neo CD 2.0 black

order no. str-cd20b

EUR 199,00 excl. VAT: € 167.23 / $ 180.61

ribbon tweeter.

  • frequency range = 1200-40000 Hz
  • resonance frequency fs = 350 Hz
  • impedance R = 7 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 7 Ohm
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,034 g
  • overall diameter d = 164 x 70,4 mm
  • mounting depth (not countersunk) t = 70 mm
PDF data sheet

show kits to this chassis hide kits

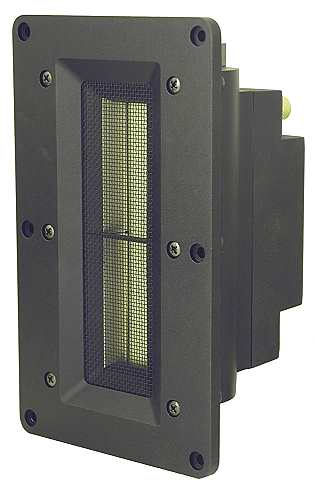

Audaphon Neo Pro 5i

Audaphon Neo Pro 5i

order no. str-pro5i

EUR 399,00 excl. VAT: € 335.29 / $ 362.12

ribbon tweeter.

  • frequency range = 650-40000 Hz
  • resonance frequency fs = 200 Hz
  • impedance R = 7 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,15 Ohm
  • effective piston radiating area Sd = 21,75 cm2
  • effective mechanical mass incl. air load mms = 0,088 g
  • overall diameter d = 190 x 115 mm
  • mounting depth (not countersunk) t = 99 mm
PDF data sheet

journal Hobby HiFi
Fazit: Mit dem Bändchen-Hochtöner NeoPro5i bietet Audaphon einen nicht nur gewichtigen, sondern vor allem akustisch herausragenden Hochtöner für Lautsprecherkonzepte auf Referenzniveau.

show kits to this chassis hide kits

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.
